You may think of other questions depending on the
answers you get to these questions. Write down the driver’s
comments on an inspection form such as the one shown in
Figure 15-3. If an inspection form is not available, use the
back of the repair order or a sheet of paper. Before going on
to Step 2, make sure you have a good idea of the driver’s
complaint.
Assessing Driver Input
While taking into account what the driver says, try to esti-
mate his or her attitude and level of automotive knowledge.
Because drivers are not usually familiar with the operation
of automobiles, they often unintentionally mislead techni-
cians when describing symptoms or may have reached their

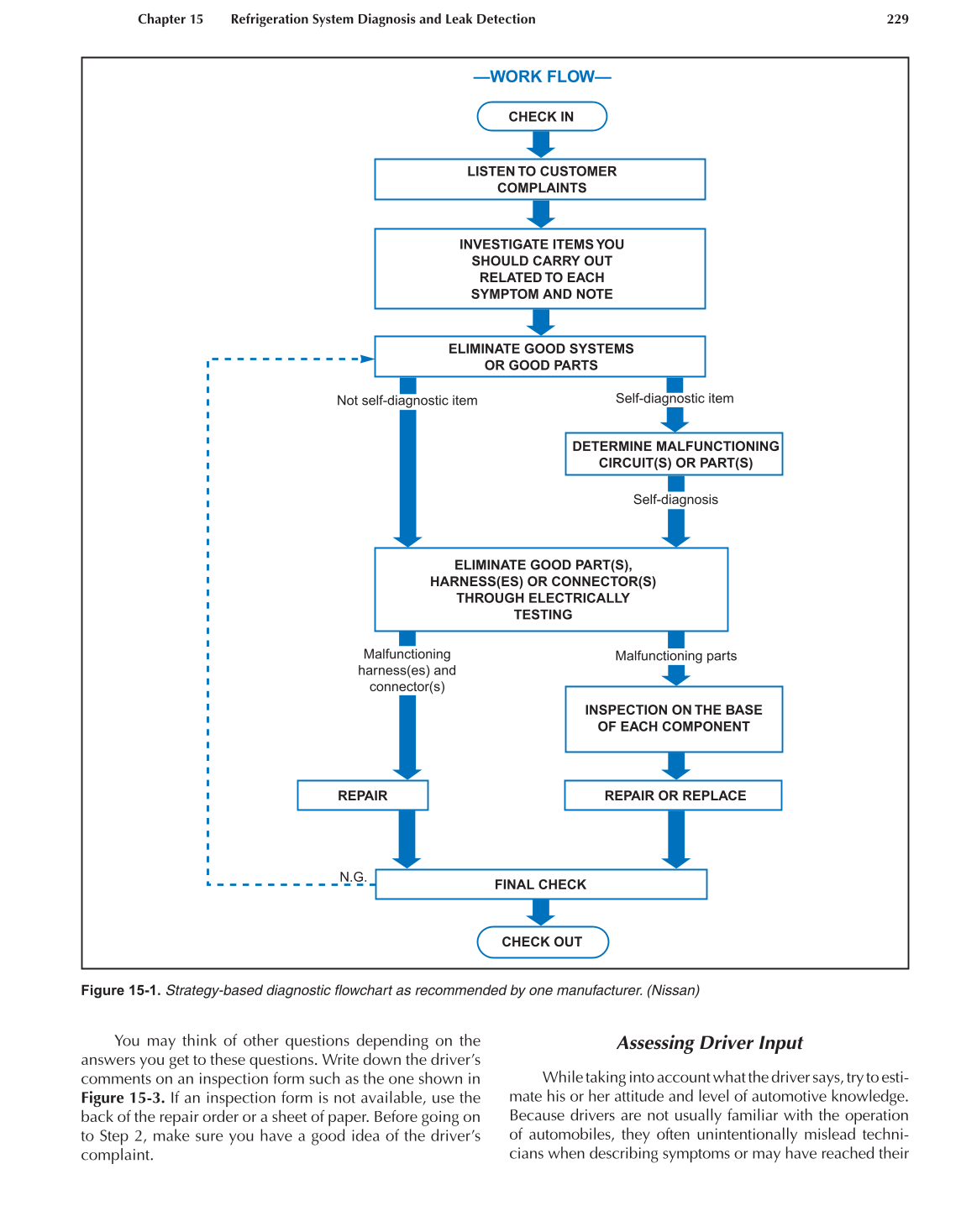

Figure 15-1. Strategy-based diagnostic fl owchart as recommended by one manufacturer. (Nissan)
