Chapter 12 Building Information Modeling 283
A
C
B
Dennis Dixon
BluPrint Design + Build

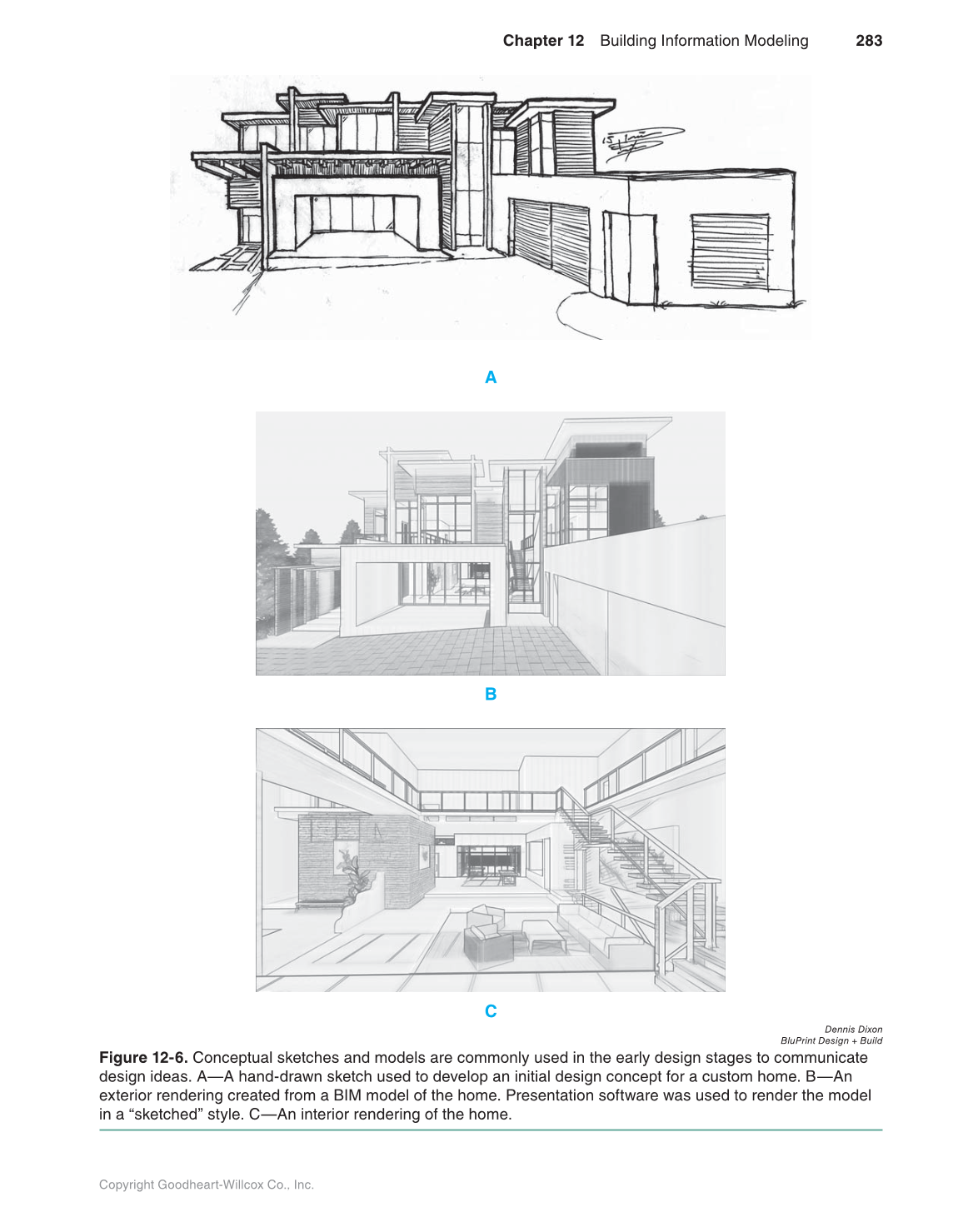

Figure 12-6. Conceptual sketches and models are commonly used in the early design stages to communicate
design ideas. A—A hand-drawn sketch used to develop an initial design concept for a custom home. B —An
exterior rendering created from a BIM model of the home. Presentation software was used to render the model
in a “sketched” style. C —An interior rendering of the home.
