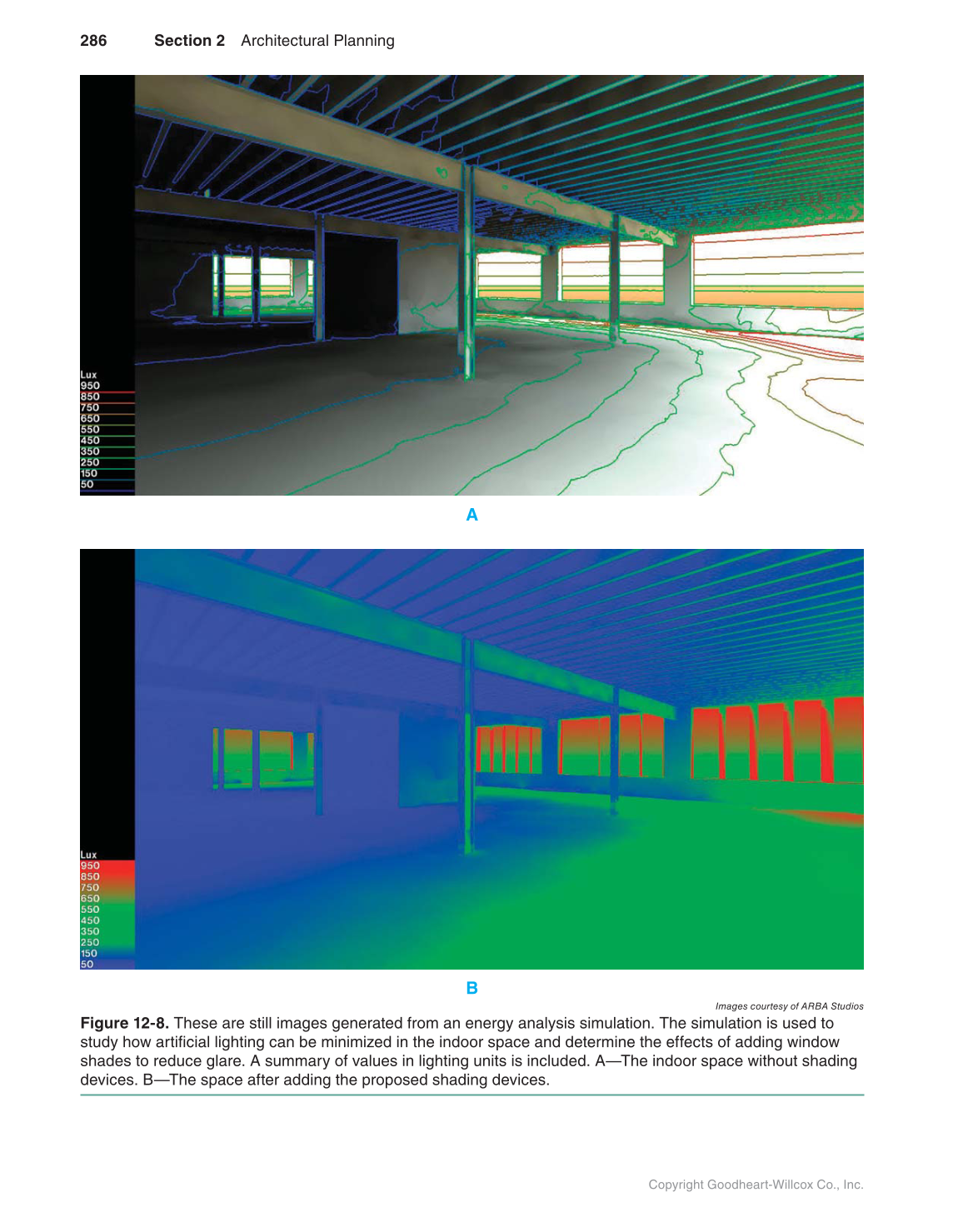

Figure 12-8. These are still images generated from an energy analysis simulation. The simulation is used to
study how artificial lighting can be minimized in the indoor space and determine the effects of adding window
shades to reduce glare. A summary of values in lighting units is included. A—The indoor space without shading
devices. B—The space after adding the proposed shading devices.
