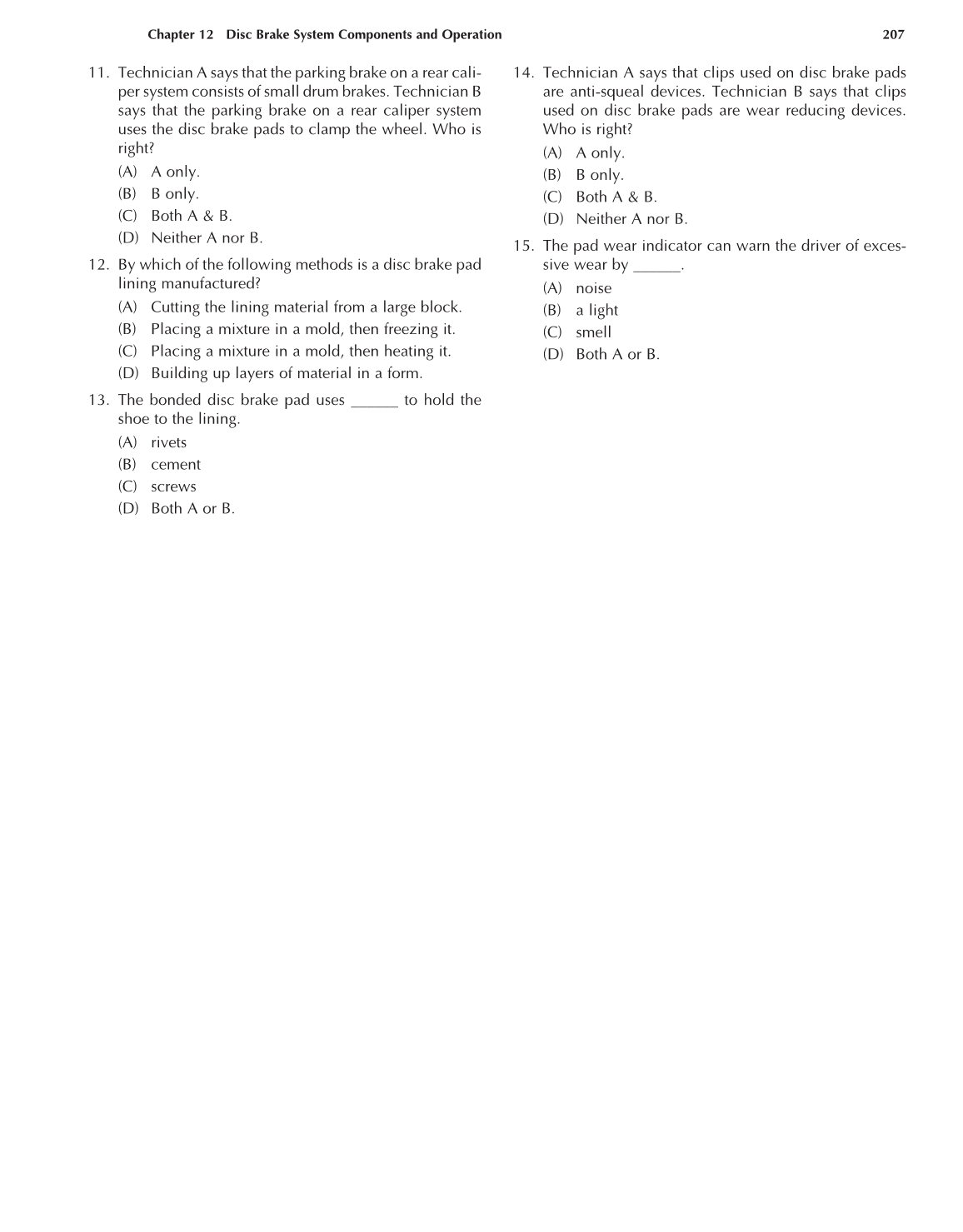

Chapter 12 Disc Brake System Components and Operation 207
11. Technician A says that the parking brake on a rear cali-
per system consists of small drum brakes. Technician B
says that the parking brake on a rear caliper system
uses the disc brake pads to clamp the wheel. Who is
right?
(A) A only.
(B) B only.
(C) Both A & B.
(D) Neither A nor B.
12. By which of the following methods is a disc brake pad
lining manufactured?
(A) Cutting the lining material from a large block.
(B) Placing a mixture in a mold, then freezing it.
(C) Placing a mixture in a mold, then heating it.
(D) Building up layers of material in a form.
13. The bonded disc brake pad uses ______ to hold the
shoe to the lining.
(A) rivets
(B) cement
(C) screws
(D) Both A or B.
14. Technician A says that clips used on disc brake pads
are anti-squeal devices. Technician B says that clips
used on disc brake pads are wear reducing devices.
Who is right?
(A) A only.
(B) B only.
(C) Both A & B.
(D) Neither A nor B.
15. The pad wear indicator can warn the driver of exces-
sive wear by ______.
(A) noise
(B) a light
(C) smell
(D) Both A or B.
