191
Chapter 8 Nonstructural Panel Repair

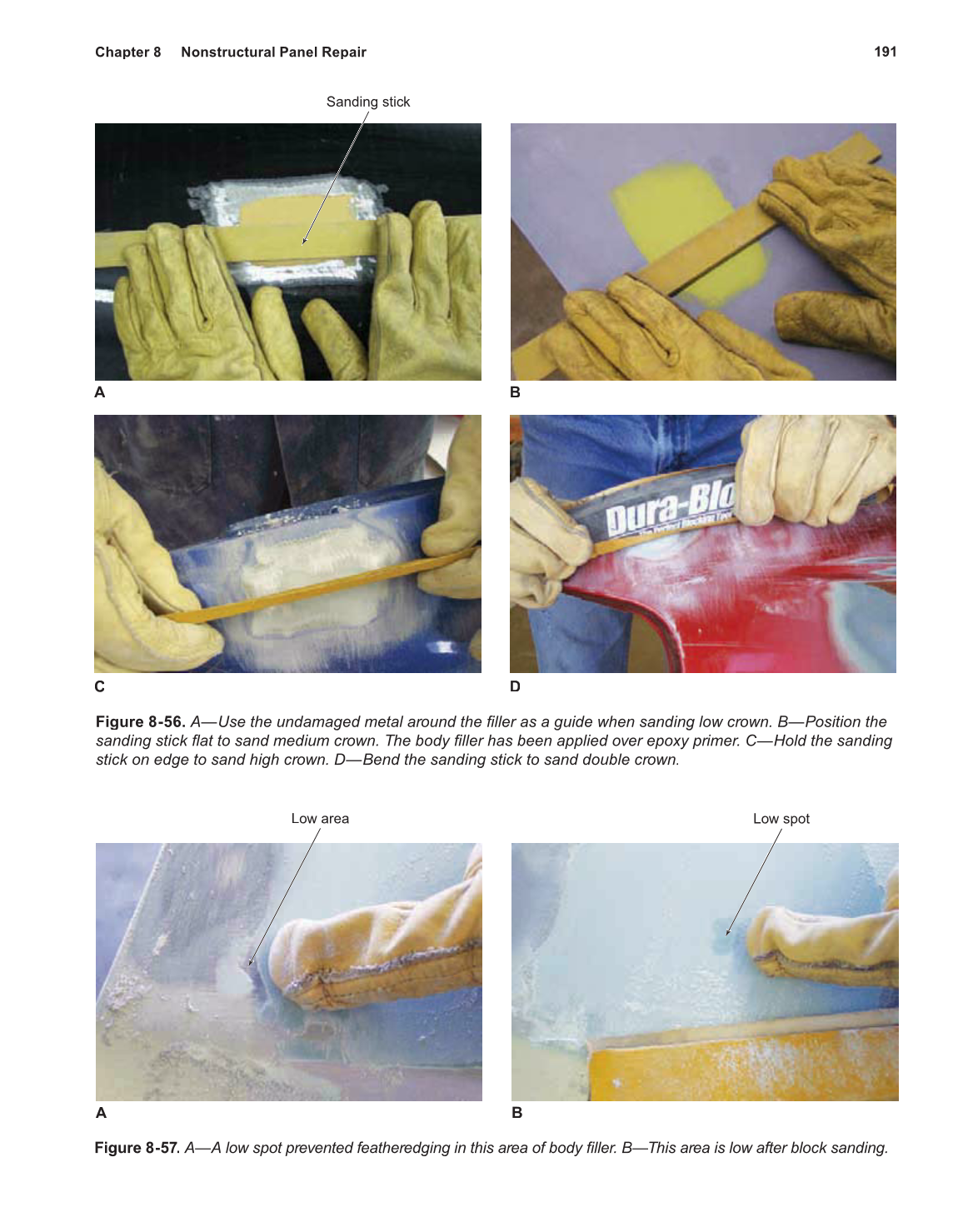

Figure 8-56. A—Use the undamaged metal around the filler as a guide when sanding low crown. B—Position the
sanding stick flat to sand medium crown. The body filler has been applied over epoxy primer. C—Hold the sanding
stick on edge to sand high crown. D—Bend the sanding stick to sand double crown.
Low area
A
Low spot
B
Figure 8-57. A—A low spot prevented featheredging in this area of body filler. B—This area is low after block sanding.
Sanding stick
A
C
B
D
