199 Chapter 9 Nonstructural Panel Repair
Copyright Goodheart-Willcox Co., Inc.
Goodheart-Willcox Publisher

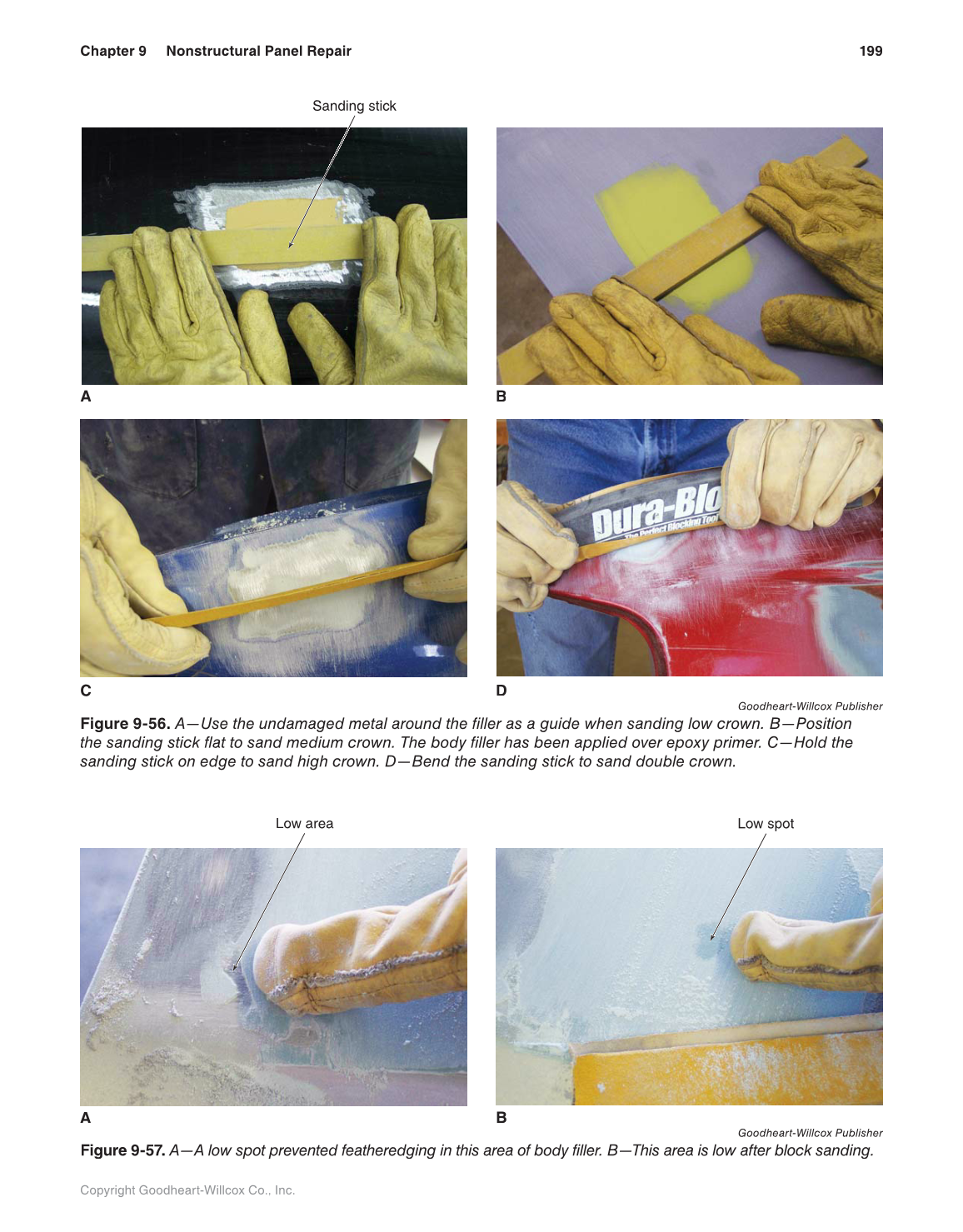

Figure 9-56. A—Use the undamaged metal around the filler as a guide when sanding low crown. B—Position
the sanding stick flat to sand medium crown. The body filler has been applied over epoxy primer. C—Hold the
sanding stick on edge to sand high crown. D—Bend the sanding stick to sand double crown.
Goodheart-Willcox Publisher
Figure 9-57. 7 A—A low spot prevented featheredging in this area of body filler. B—This area is low after block sanding.
Sanding stick
A
C
B
D
Low area
A
Low spot
B
