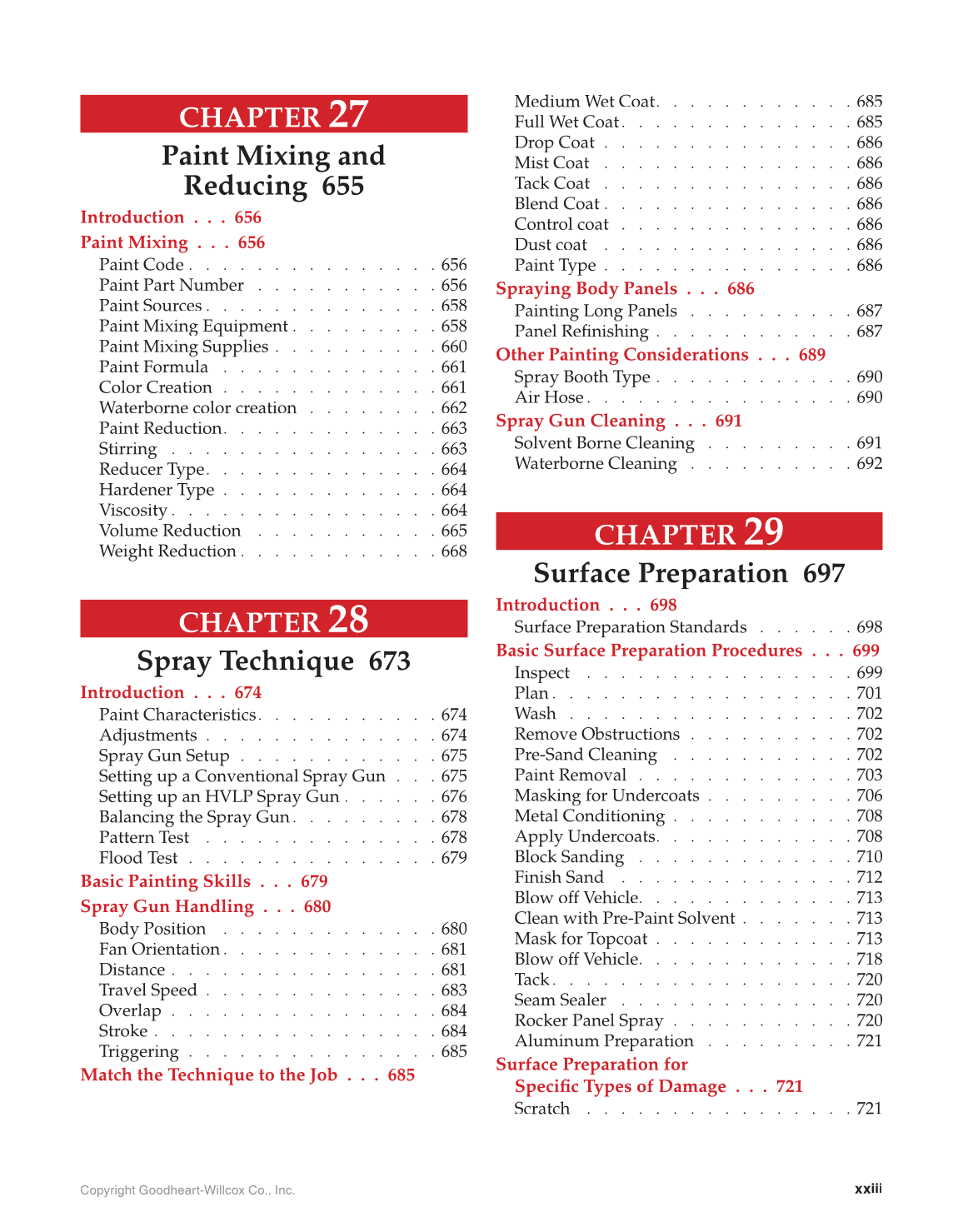

xxiii
Copyright Goodheart-Willcox Co., Inc.
CHAPTER
27
Paint Mixing and
Reducing 655
Introduction . . . 656
Paint Mixing . . . 656
Paint Code . . . . . . . . . . . . . . . 656
Paint Part Number . . . . . . . . . . . 656
Paint Sources . . . . . . . . . . . . . . 658
Paint Mixing Equipment . . . . . . . . . 658
Paint Mixing Supplies . . . . . . . . . . 660
Paint Formula . . . . . . . . . . . . . 661
Color Creation . . . . . . . . . . . . . 661
Waterborne color creation . . . . . . . . 662
Paint Reduction. . . . . . . . . . . . . 663
Stirring . . . . . . . . . . . . . . . . 663
Reducer Type. . . . . . . . . . . . . . 664
Hardener Type . . . . . . . . . . . . . 664
Viscosity . . . . . . . . . . . . . . . . 664
Volume Reduction . . . . . . . . . . . 665
Weight Reduction . . . . . . . . . . . . 668
CHAPTER
28
Spray Technique 673
Introduction . . . 674
Paint Characteristics. . . . . . . . . . . 674
Adjustments . . . . . . . . . . . . . . 674
Spray Gun Setup . . . . . . . . . . . . 675
Setting up a Conventional Spray Gun . . . 675
Setting up an HVLP Spray Gun . . . . . . 676
Balancing the Spray Gun. . . . . . . . . 678
Pattern Test . . . . . . . . . . . . . . 678
Flood Test . . . . . . . . . . . . . . . 679
Basic Painting Skills . . . 679
Spray Gun Handling . . . 680
Body Position . . . . . . . . . . . . . 680
Fan Orientation . . . . . . . . . . . . . 681
Distance . . . . . . . . . . . . . . . . 681
Travel Speed . . . . . . . . . . . . . . 683
Overlap . . . . . . . . . . . . . . . . 684
Stroke . . . . . . . . . . . . . . . . . 684
Triggering . . . . . . . . . . . . . . . 685
Match the Technique to the Job . . . 685
Medium Wet Coat. . . . . . . . . . . . 685
Full Wet Coat. . . . . . . . . . . . . . 685
Drop Coat . . . . . . . . . . . . . . . 686
Mist Coat . . . . . . . . . . . . . . . 686
Tack Coat . . . . . . . . . . . . . . . 686
Blend Coat . . . . . . . . . . . . . . . 686
Control coat . . . . . . . . . . . . . . 686
Dust coat . . . . . . . . . . . . . . . 686
Paint Type . . . . . . . . . . . . . . . 686
Spraying Body Panels . . . 686
Painting Long Panels . . . . . . . . . . 687
Panel Refi . . . . . . . . . . . . 687 finishing
Other Painting Considerations . . . 689
Spray Booth Type . . . . . . . . . . . . 690
Air Hose . . . . . . . . . . . . . . . . 690
Spray Gun Cleaning . . . 691
Solvent Borne Cleaning . . . . . . . . . 691
Waterborne Cleaning . . . . . . . . . . 692
CHAPTER
29
Surface Preparation 697
Introduction . . . 698
Surface Preparation Standards . . . . . . 698
Basic Surface Preparation Procedures . . . 699
Inspect . . . . . . . . . . . . . . . . 699
Plan . . . . . . . . . . . . . . . . . . 701
Wash . . . . . . . . . . . . . . . . . 702
Remove Obstructions . . . . . . . . . . 702
Pre-Sand Cleaning . . . . . . . . . . . 702
Paint Removal . . . . . . . . . . . . . 703
Masking for Undercoats . . . . . . . . . 706
Metal Conditioning . . . . . . . . . . . 708
Apply Undercoats. . . . . . . . . . . . 708
Block Sanding . . . . . . . . . . . . . 710
Finish Sand . . . . . . . . . . . . . . 712
Blow off Vehicle. . . . . . . . . . . . . 713
Clean with Pre-Paint Solvent . . . . . . . 713
Mask for Topcoat . . . . . . . . . . . . 713
Blow off Vehicle. . . . . . . . . . . . . 718
Tack . . . . . . . . . . . . . . . . . . 720
Seam Sealer . . . . . . . . . . . . . . 720
Rocker Panel Spray . . . . . . . . . . . 720
Aluminum Preparation . . . . . . . . . 721
Surface Preparation for
Specifi c Types of Damage . . . 721
Scratch . . . . . . . . . . . . . . . . 721
