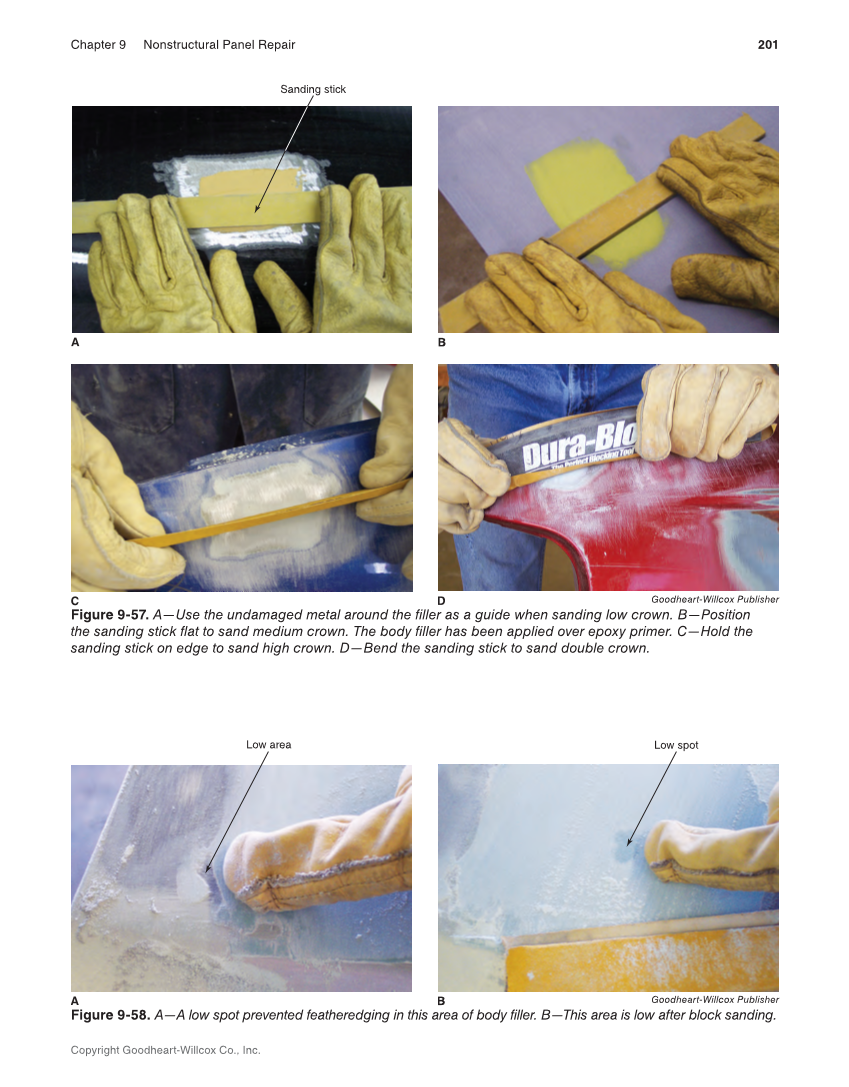

201 Chapter 9 Nonstructural Panel Repair Copyright Goodheart-Willcox Co., Inc. Goodheart-Willcox Publisher Figure 9-57. A—Use the undamaged metal around the filler as a guide when sanding low crown. B—Position the sanding stick flat to sand medium crown. The body filler has been applied over epoxy primer. C—Hold the sanding stick on edge to sand high crown. D—Bend the sanding stick to sand double crown. Sanding stick A C B D Goodheart-Willcox Publisher Figure 9-58. A—A low spot prevented featheredging in this area of body filler. B—This area is low after block sanding. Low area A Low spot B
