climate control system. However, the blower forces outside
air through the battery pack enclosure and then forces this
air out of the vehicle. The hybrid ECU and battery tempera-
ture sensor control the operation of the blower motor.
Hybrid Motor-Generator
A hybrid motor-generator functions as both a power-
ful traction motor and as a high-energy alternator in the
vehicle’s power train. The hybrid motor-generator(s) can
have several functions:
❑
Help to power the drive train and propel the vehicle.
❑
Recharge the HV battery pack.
❑
Crank the internal combustion engine.
❑
Help to slow and stop the vehicle.
The basic parts of a motor-generator include:
❑
Motor-generator armature—a set of permanent mag-
nets mounted inside a steel segmented disc.
❑
Motor-generator stator—a set of stationary coil wind-
ings wrapped around iron cores.
❑
Motor-generator housing—holds the stator assembly
in place around the armature.
When consuming electricity as a motor or producing
electricity as a generator, the motor-generator armature spins
inside a set of electrical coil windings. See Figure 22-7A.
The motor-generator stator is a set of electromagnets
arranged in an array around the motor-generator armature,
Figure 22-7B. Electrical energy can be consumed or pro-
duced by the motor-generator stator.
The motor-generator housing allows the motor-generator
to be fastened to the rear of the engine, inside the transmission/
transaxle, or in the rear drive axle assembly, Figure 22-7C.
When assembled, Figure 22-7D, the motor-generator
armature spins in close proximity to the stator assembly.
Motor-Generator as a Motor
A hybrid motor-generator is usually a synchronous,
AC, permanent magnet, brushless design. There are no
electrical windings in the armature and no electrical con-
nections to it. The permanent magnet design improves reli-
ability over DC motors that have windings, which can fail.
The term synchronous means the rotation of the arma-
ture is synchronized or timed with the three-phase alternating
current entering the stator or coil windings. The three-phase

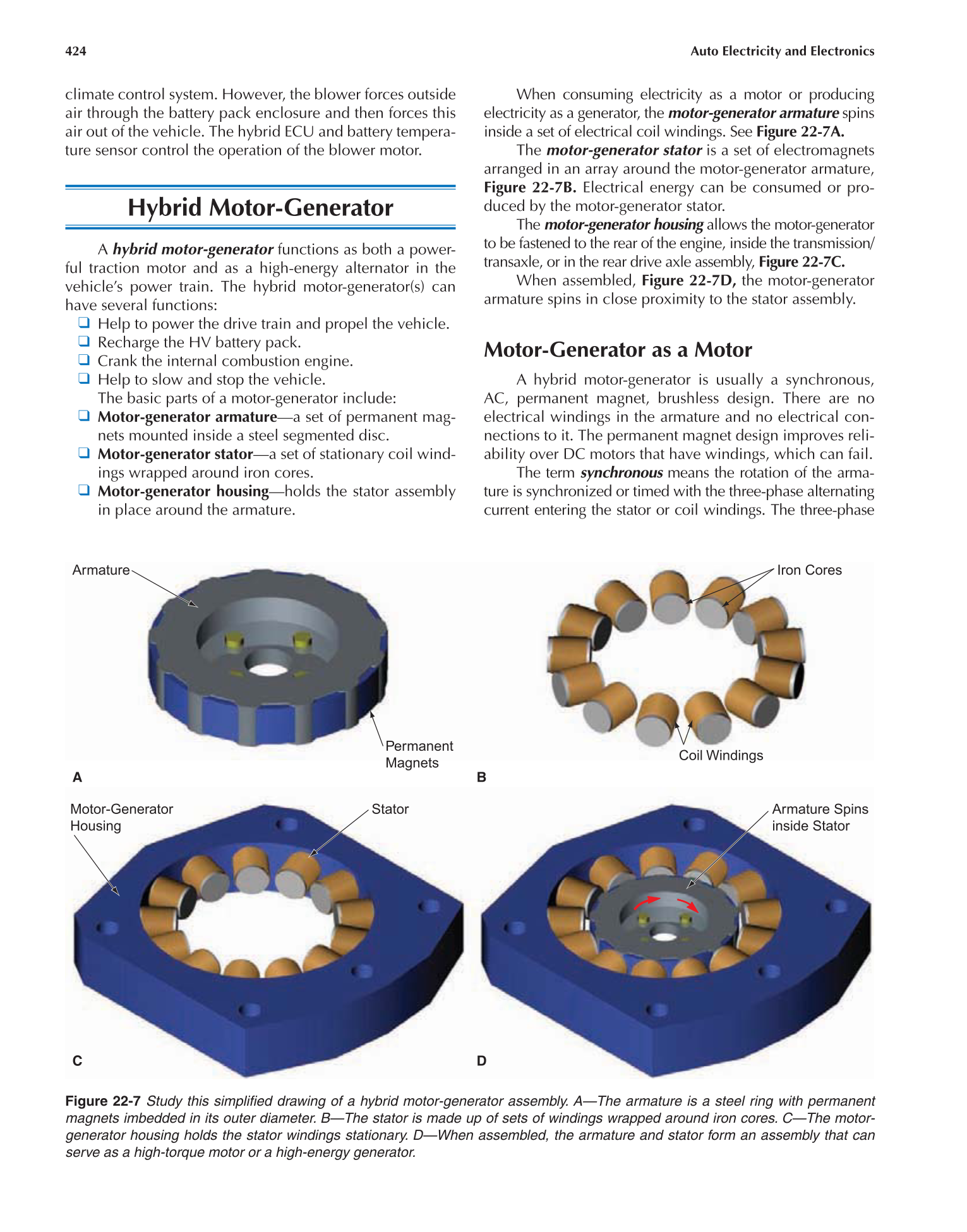

Figure 22-7 Study this simplifi ed drawing of a hybrid motor-generator assembly. A—The armature is a steel ring with permanent
magnets imbedded in its outer diameter. B—The stator is made up of sets of windings wrapped around iron cores. C—The motor-
generator housing holds the stator windings stationary. D—When assembled, the armature and stator form an assembly that can
serve as a high-torque motor or a high-energy generator.
Permanent
Magnets
A
C
B
D
Armature
Motor-Generator
Housing
Stator
Coil Windings
Iron Cores
Armature Spins
inside Stator
