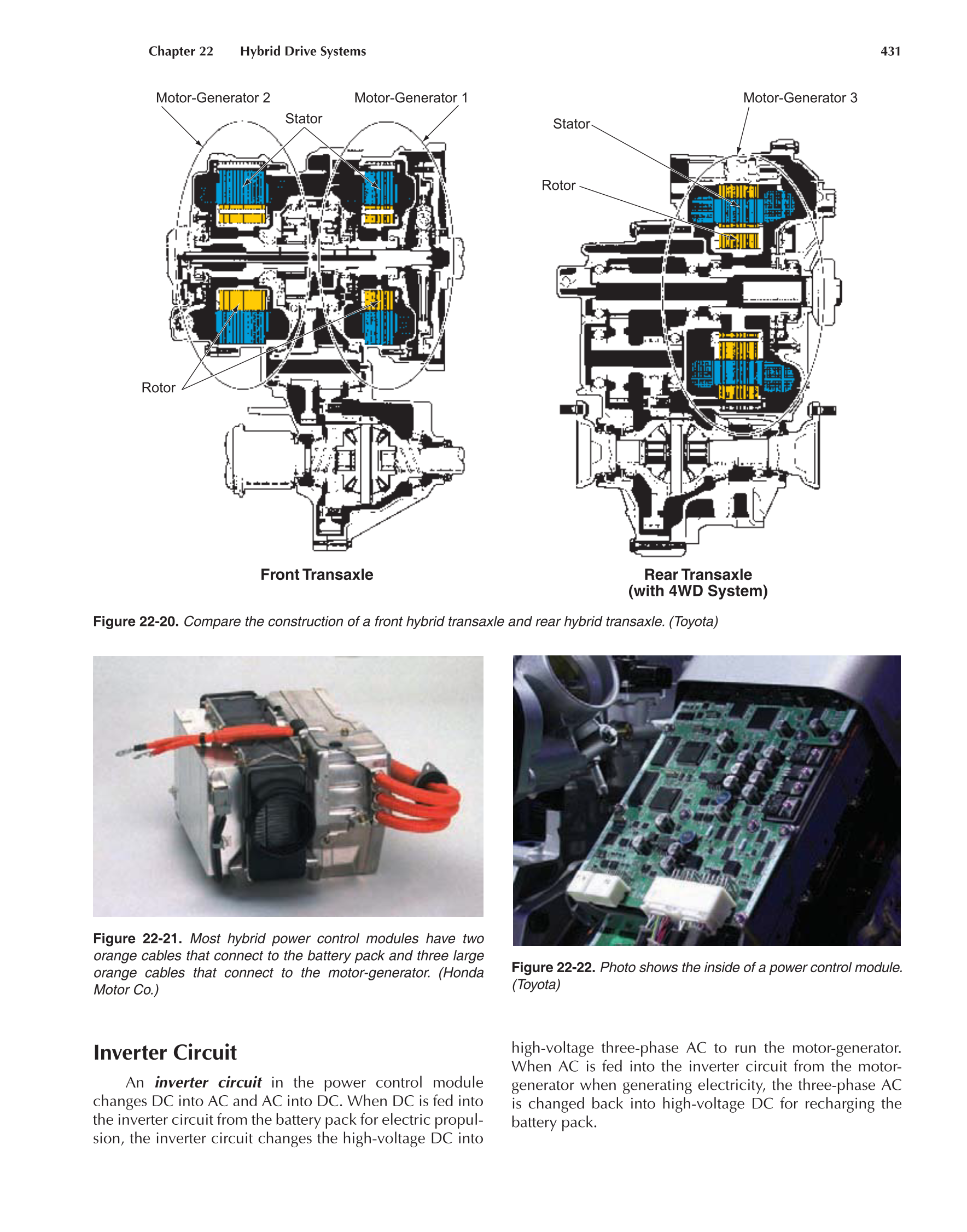

Figure 22-20. Compare the construction of a front hybrid transaxle and rear hybrid transaxle. (Toyota)
Motor-Generator 2 Motor-Generator 1 Motor-Generator 3
Front Transaxle Rear Transaxle
(with 4WD System)
Stator
Rotor
Rotor
Stator
Inverter Circuit
An inverter circuit in the power control module
changes DC into AC and AC into DC. When DC is fed into
the inverter circuit from the battery pack for electric propul-
sion, the inverter circuit changes the high-voltage DC into
high-voltage three-phase AC to run the motor-generator.
When AC is fed into the inverter circuit from the motor-
generator when generating electricity, the three-phase AC
is changed back into high-voltage DC for recharging the
battery pack.
Figure 22-21. Most hybrid power control modules have two
orange cables that connect to the battery pack and three large
orange cables that connect to the motor-generator. (Honda
Motor Co.)
Figure 22-22. Photo shows the inside of a power control module.
(Toyota)
