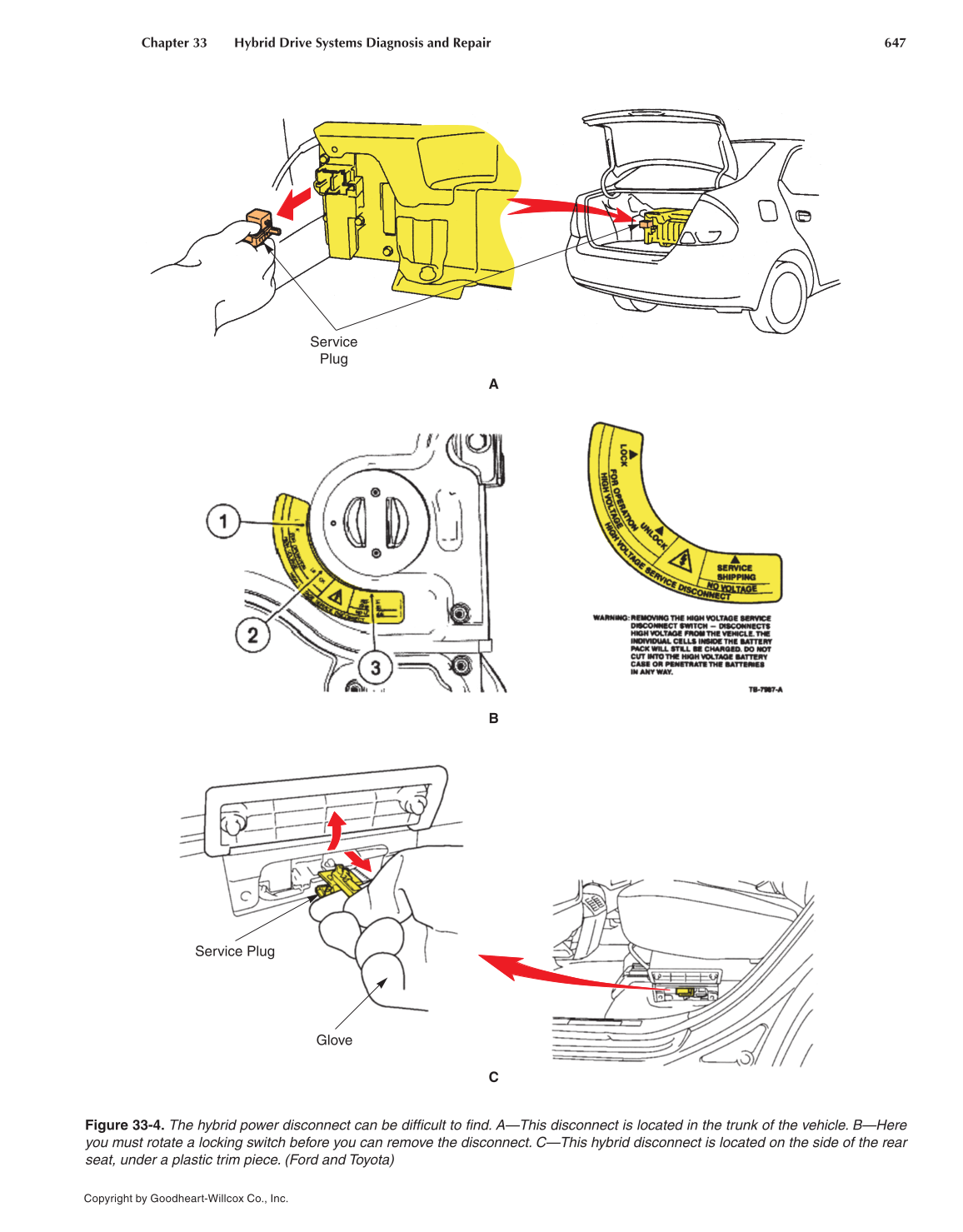

Figure 33-4. The hybrid power disconnect can be diffi cult to fi nd. A—This disconnect is located in the trunk of the vehicle. B—Here
you must rotate a locking switch before you can remove the disconnect. C—This hybrid disconnect is located on the side of the rear
seat, under a plastic trim piece. (Ford and Toyota)
Service
Plug
A
B
C
Service Plug
Glove
