Chapter 16 Turbocharging and Supercharging Systems 343

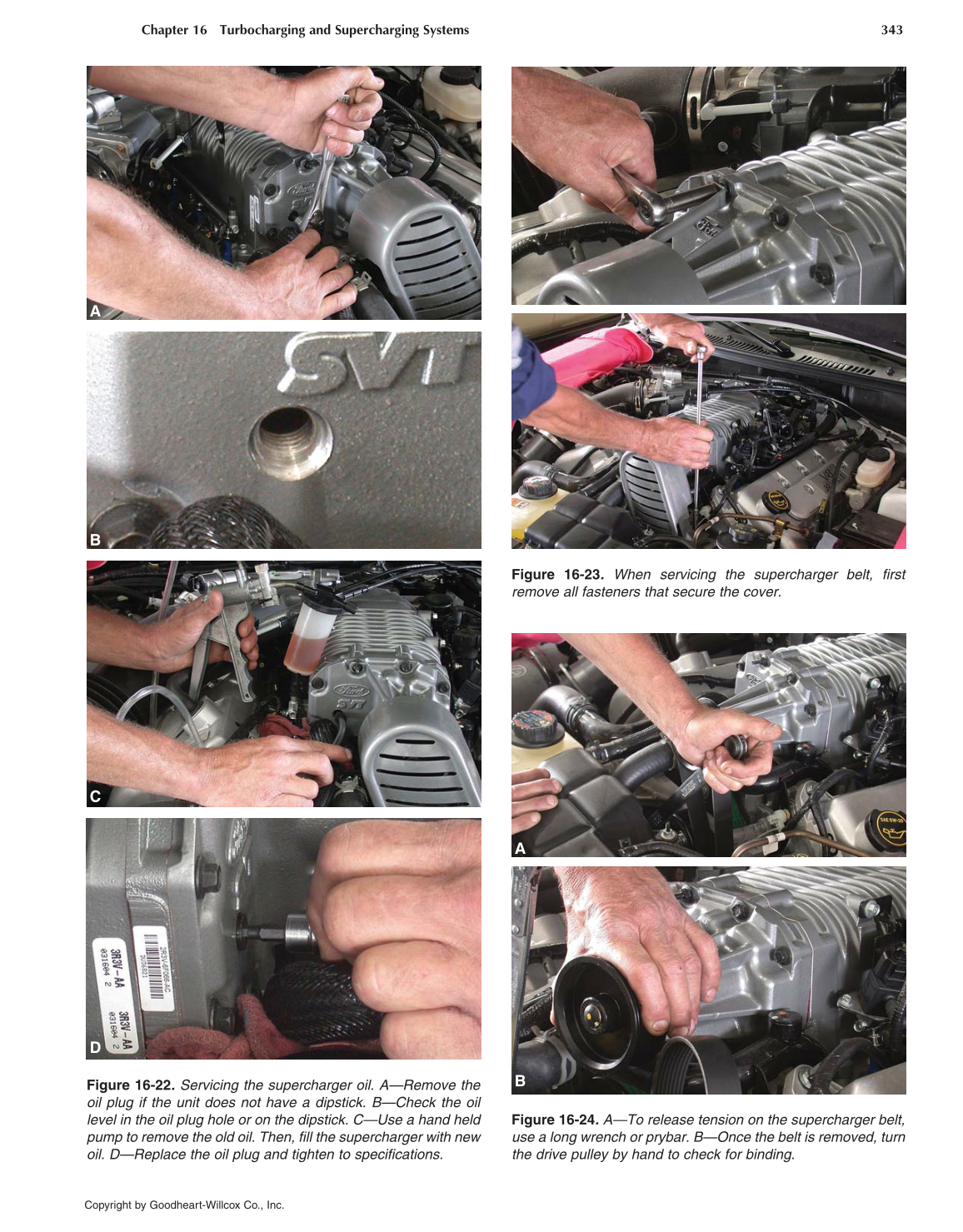

Figure 16-22. Servicing the supercharger oil. A—Remove the
oil plug if the unit does not have a dipstick. B—Check the oil
level in the oil plug hole or on the dipstick. C—Use a hand held
pump to remove the old oil. Then, fill the supercharger with new
oil. D—Replace the oil plug and tighten to specifications.
C
D
B
A
Figure 16-23. When servicing the supercharger belt, first
remove all fasteners that secure the cover.
Figure 16-24. A—To release tension on the supercharger belt,
use a long wrench or prybar. B—Once the belt is removed, turn
the drive pulley by hand to check for binding.
