Chapter 9 Steering Systems 173
Clock-
spring
Turn signal
switch
Wiper/dimmer switch
Turn signal cancel cam
Shaft lock
Steering column
housing assembly
Lock housing
Steering shaft
assembly
Interlock solenoid
Shift
tube
Gearshift
lever bowl
Column support
housing assembly
Column
jacket
Ignition
switch
Bearing
assembly

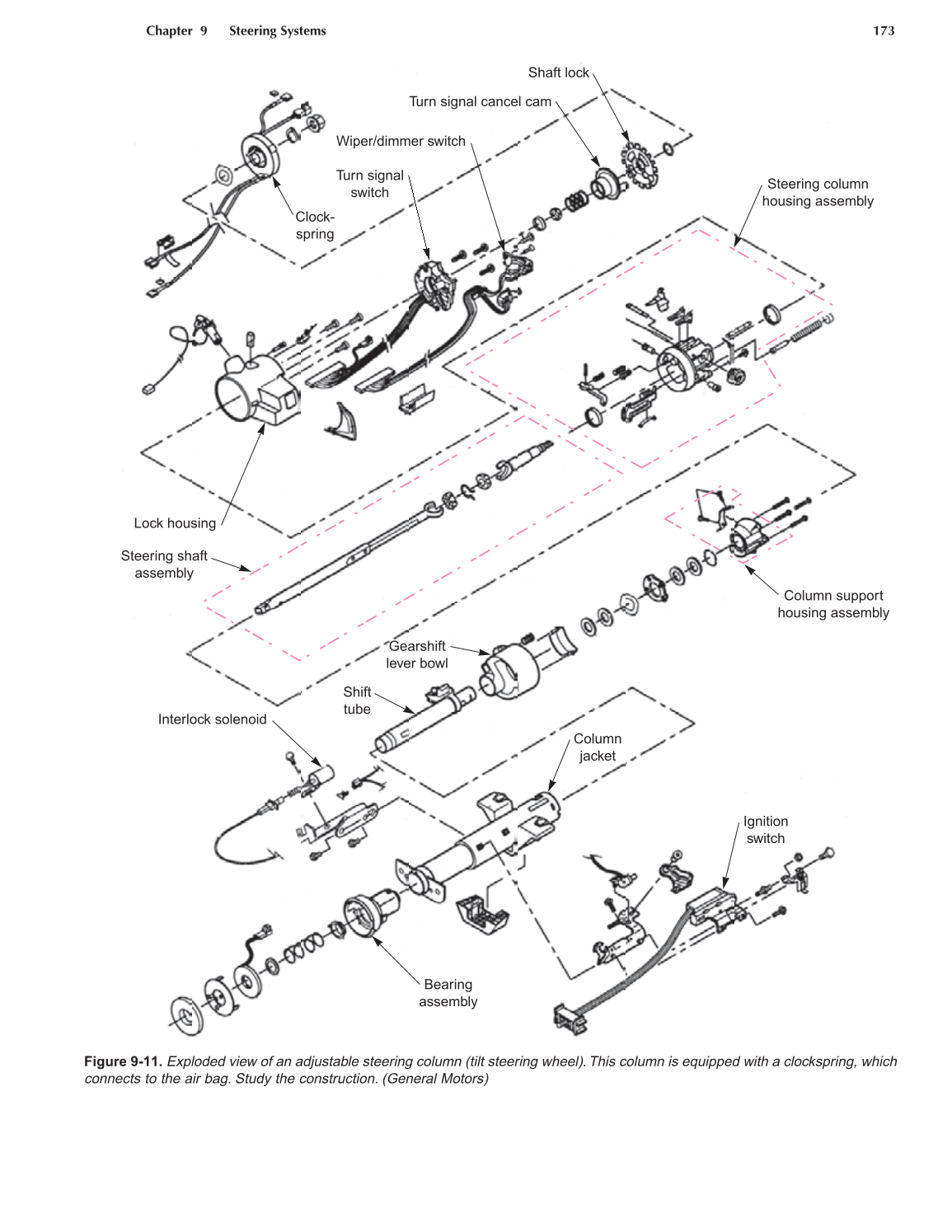

Figure 9-11. Exploded view of an adjustable steering column (tilt steering wheel).This column is equipped with a clockspring, which
connects to the air bag. Study the construction. (General Motors)
