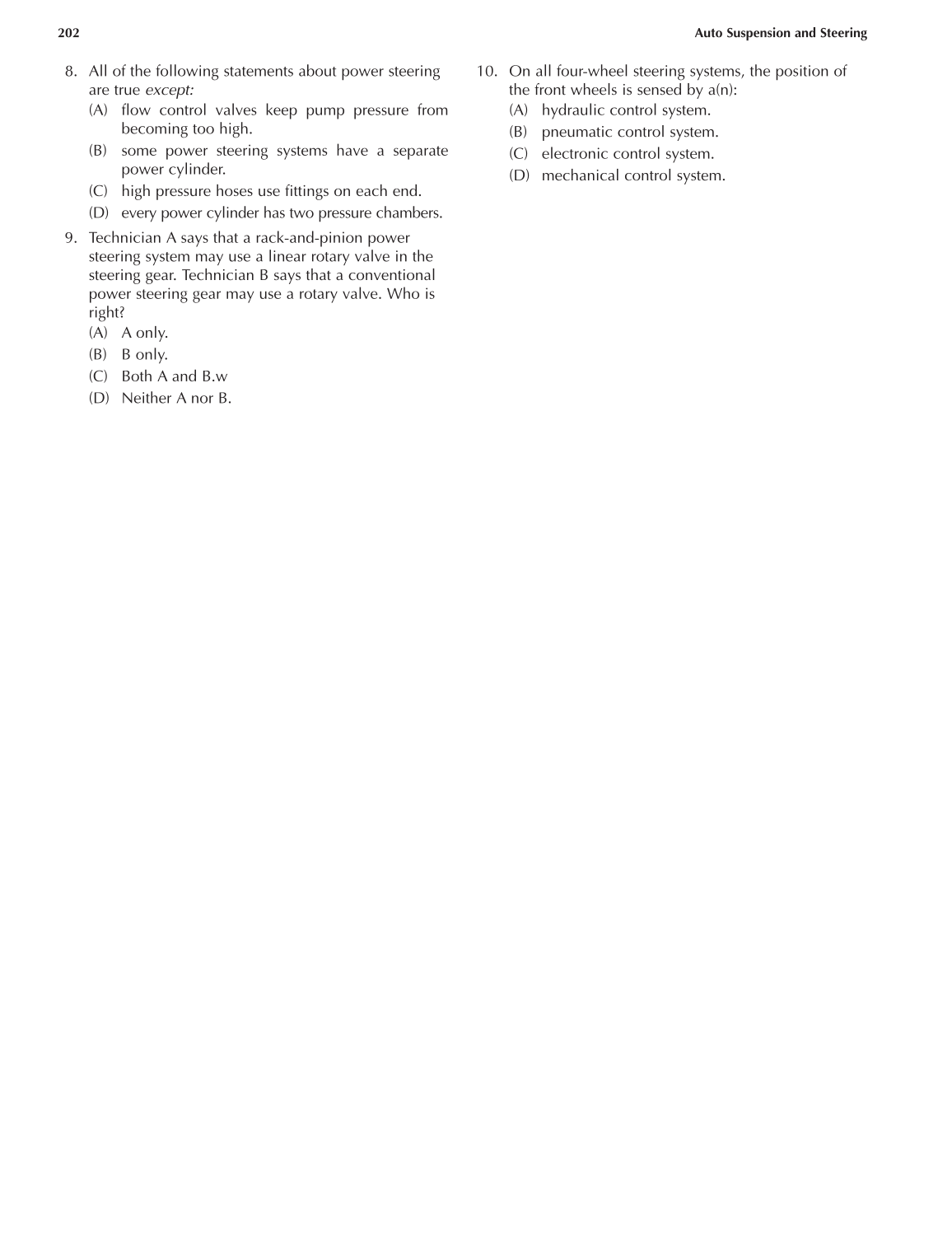

202 Auto Suspension and Steering
8. All of the following statements about power steering
are true except:
(A) flow control valves keep pump pressure from
becoming too high.
(B) some power steering systems have a separate
power cylinder.
(C) high pressure hoses use fittings on each end.
(D) every power cylinder has two pressure chambers.
9. Technician A says that a rack-and-pinion power
steering system may use a linear rotary valve in the
steering gear. Technician B says that a conventional
power steering gear may use a rotary valve. Who is
right?
(A) A only.
(B) B only.
(C) Both A and B.w
(D) Neither A nor B.
10. On all four-wheel steering systems, the position of
the front wheels is sensed by a(n):
(A) hydraulic control system.
(B) pneumatic control system.
(C) electronic control system.
(D) mechanical control system.
