Chapter 8 Rear Suspension System Service 155
Nut
Strap
Rubber
bushing
Stabilizer
bar
Rubber
bushing
Strap
Nut
Nut
Ball joint
link arm
Bolt
Nut
Solid rear
axle housing
Nut
Bolt
Ball joint
link area
Nut

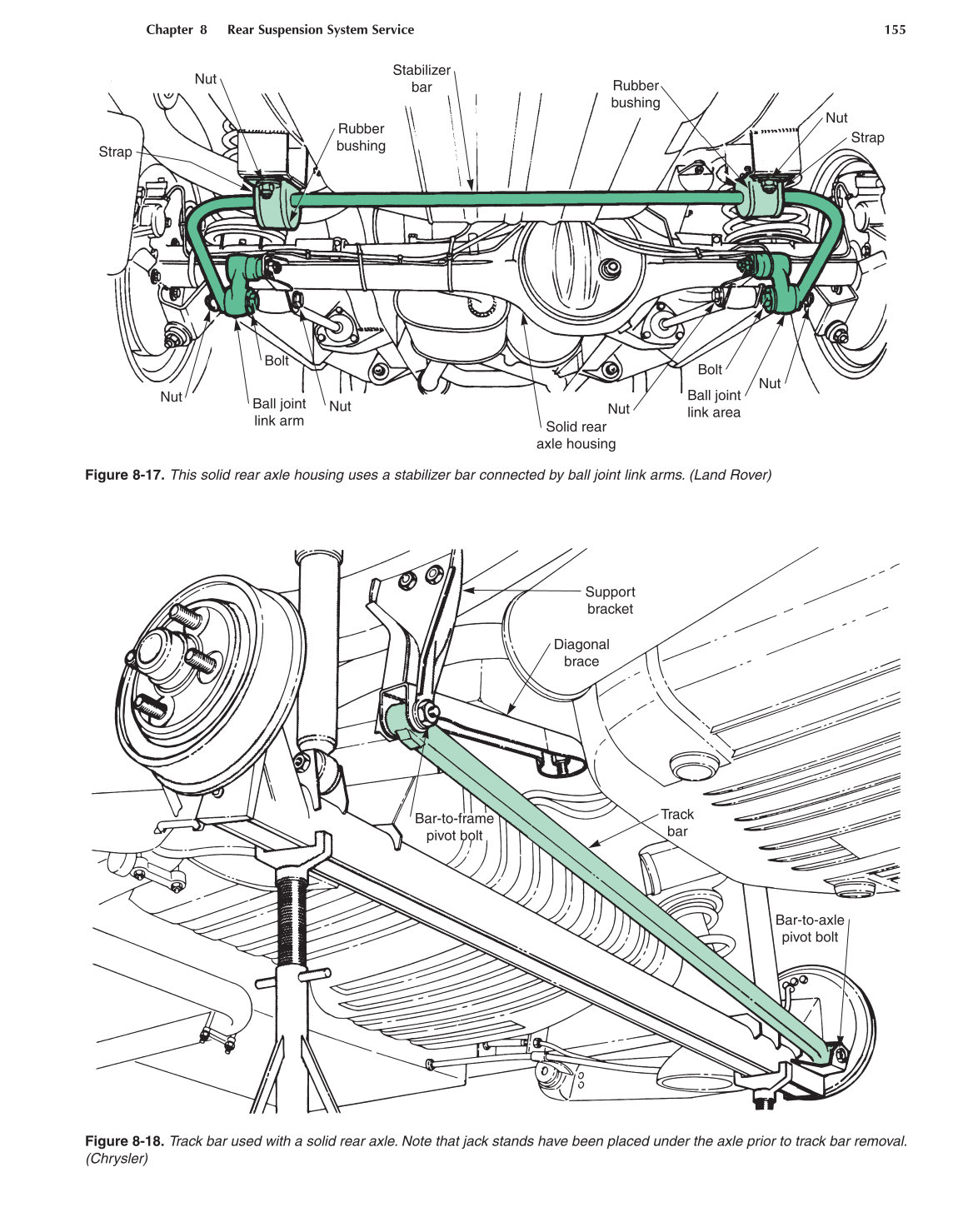

Figure 8-17. This solid rear axle housing uses a stabilizer bar connected by ball joint link arms. (Land Rover)
Support
bracket
Diagonal
brace
Track
bar
Bar-to-axle
pivot bolt
Bar-to-frame
pivot bolt
Figure 8-18. Track bar used with a solid rear axle. Note that jack stands have been placed under the axle prior to track bar removal.
(Chrysler)
