94 Auto Suspension and Steering
Vehicle body
Shock absorber
Upper control arm
Coil spring

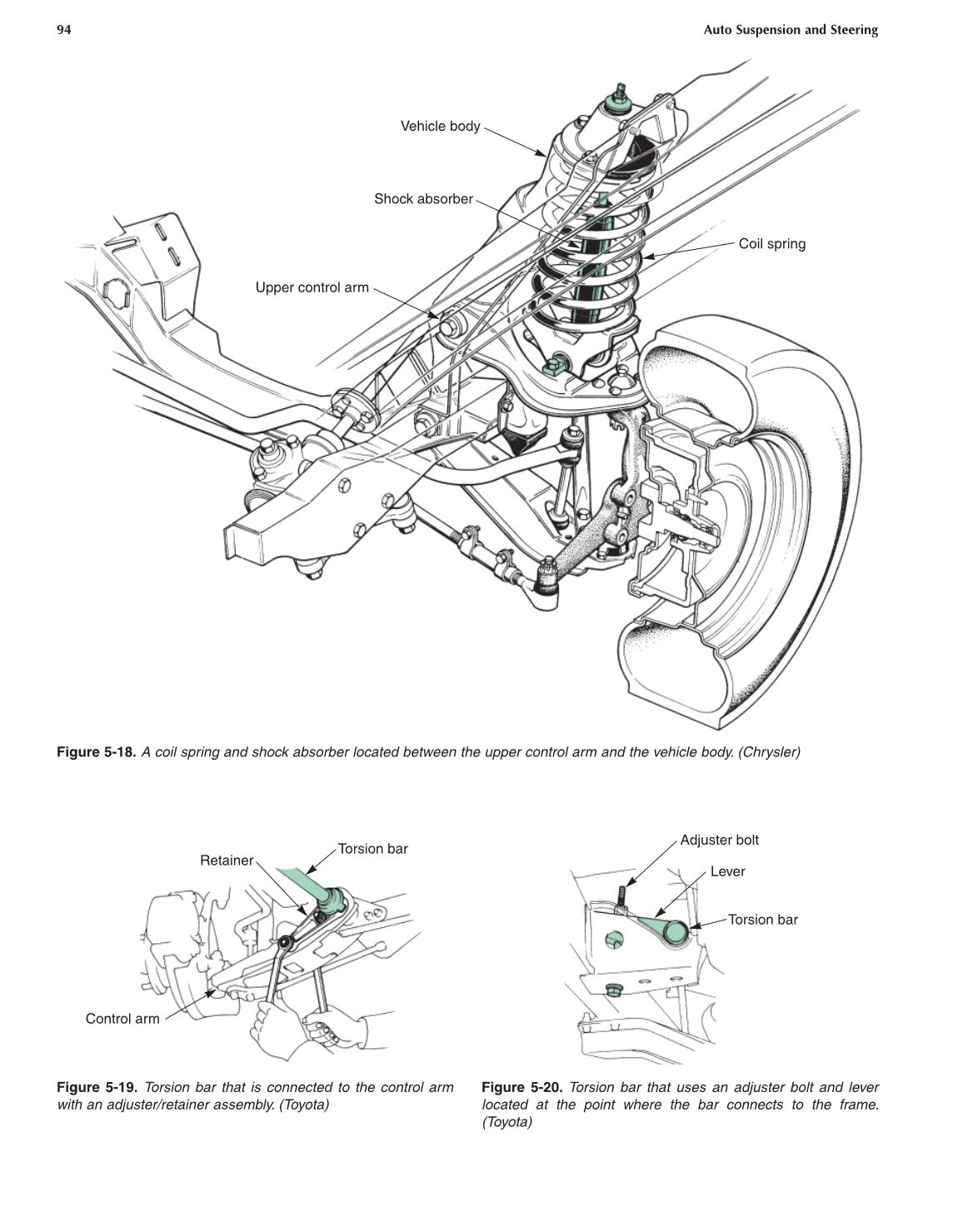

Figure 5-18. A coil spring and shock absorber located between the upper control arm and the vehicle body. (Chrysler)
Retainer
Torsion bar
Control arm
Adjuster bolt
Lever
Torsion bar
Figure 5-19. Torsion bar that is connected to the control arm
with an adjuster/retainer assembly. (Toyota)
Figure 5-20. Torsion bar that uses an adjuster bolt and lever
located at the point where the bar connects to the frame.
(Toyota)
