Specifying Items
You can specify the total number of items and angle between items or the total
number of items and angle to fill. Use the text boxes in the fi
Items
ribbon panel, or
apply the Items,
Angle
between, and
Fill angle
options. Item count determines the total
number of items in the array. Figure 12-17B shows the default array of six items. If you
do not know an exact count, enter an equation or formula in the
Item Count
ribbon text
box, or apply the
Expression
option at the appropriate prompt of the
Items
option.
Total Number of Items and Angle between Items
Specify the included angle between adjacent items, as shown in Figure 12-17B,
in the
Angle between Items
ribbon text box, or use the
Angle between
option. Enter
a positive, nonzero value. If you do not know an exact angle, enter an equation or
formula in the
Angle between Items
ribbon text box, or apply the
Expression
option at
the appropriate prompt of the
Angle between
option.

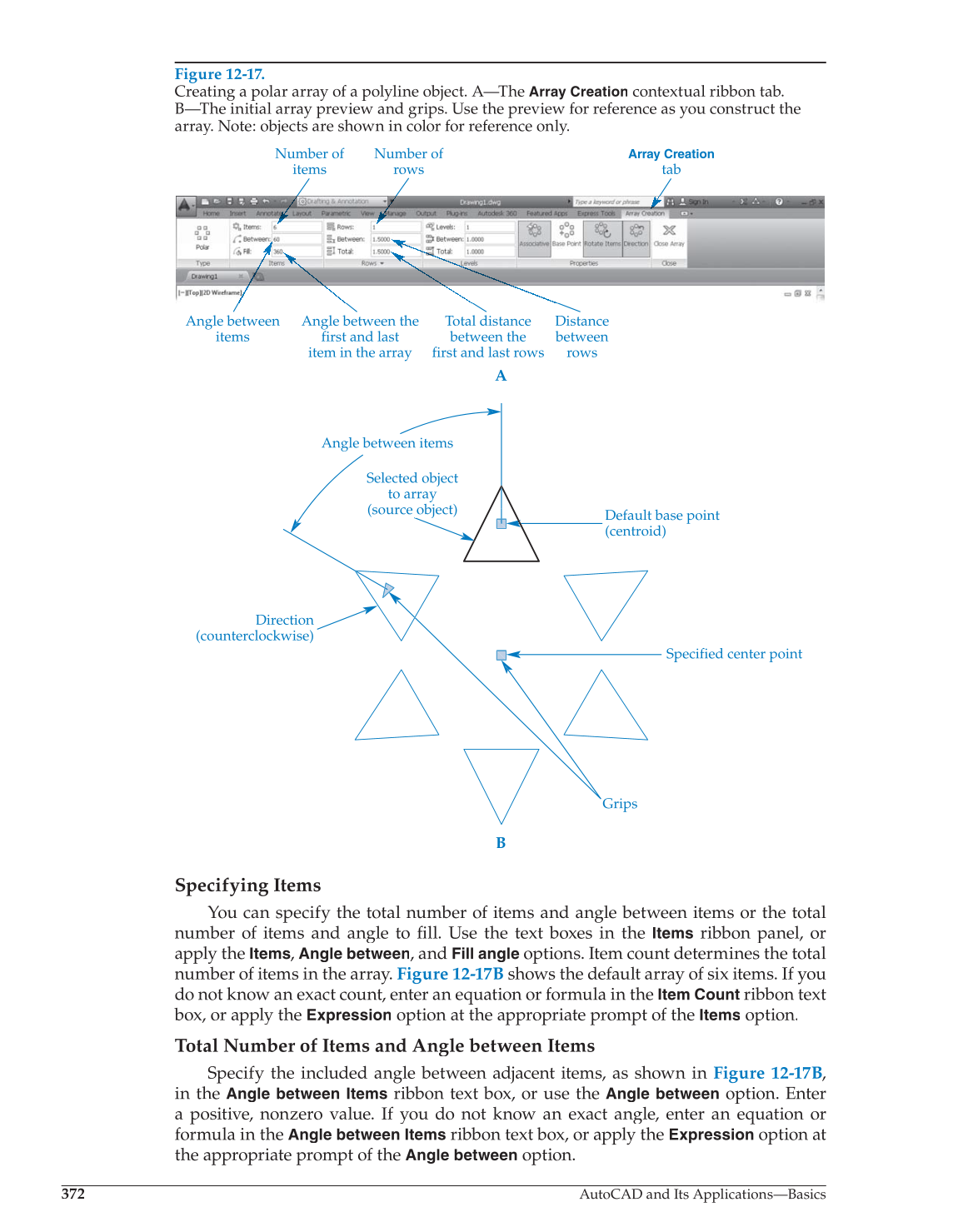

Figure 12-17.
Creating a polar array of a polyline object. A—The
Array Creation
contextual ribbon tab.
B—The initial array preview and grips. Use the preview for reference as you construct the
array. Note: objects are shown in color for reference only.
Number of
rows
Array Creation
tab
Number of
items
A
B
Grips
Default base point
(centroid)
Selected object
to array
(source object)
Direction
(counterclockwise)
Specified center point
Angle between items
Angle between the
first and last
item in the array
Total distance
between the
first and last rows
Distance
between
rows
Angle between
items
