Drawing
Problems
-
Chapter
12
Chapter 12 Arranging and Patterning Objects
381

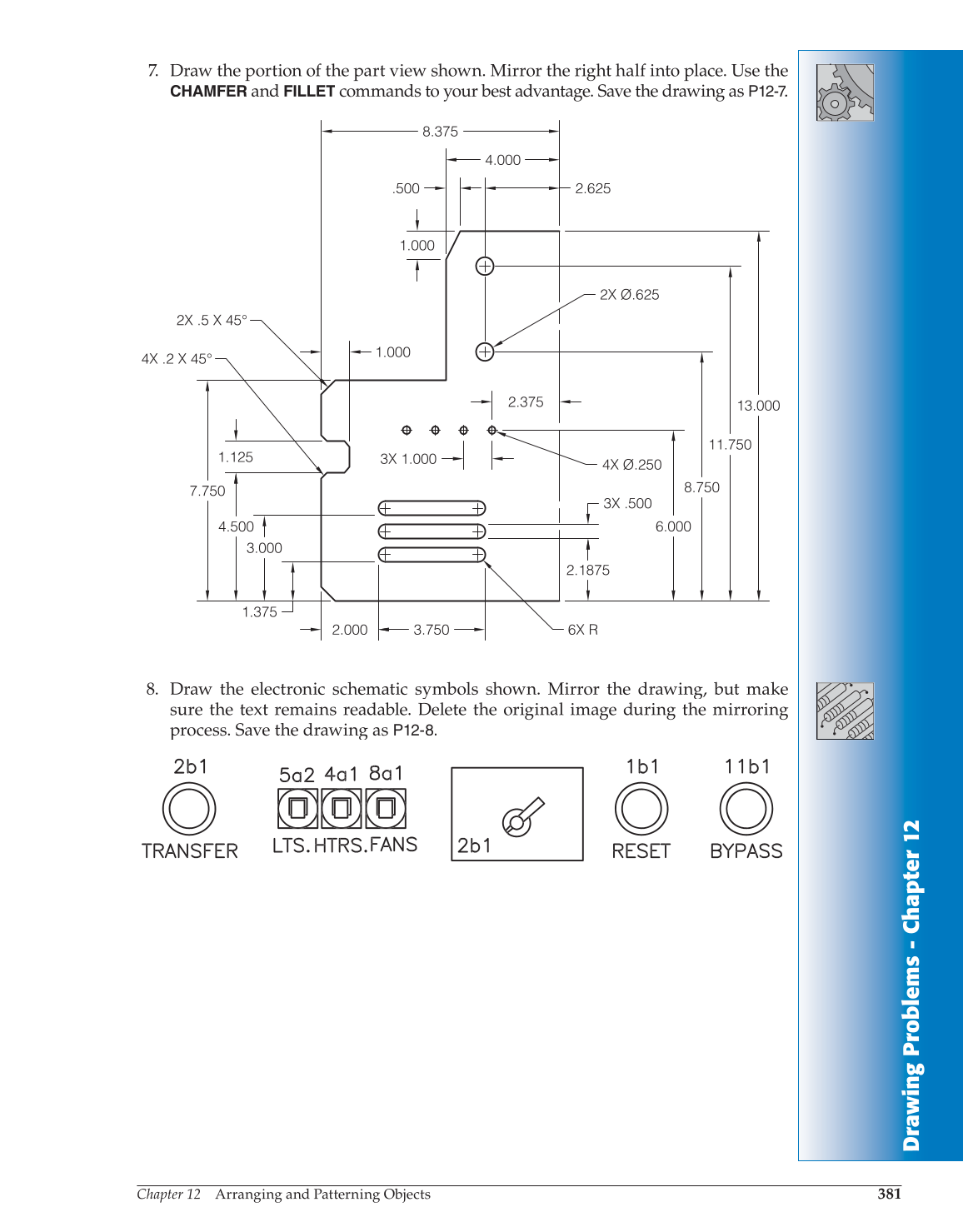

7. Draw the portion of the part view shown. Mirror the right half into place. Use the
CHAMFER
and
FILLET
commands to your best advantage. Save the drawing as
T
P12-7.7
7
2.000 3.750
2.1875
3X .500
1.375
3.000
6X R
3X 1.000
2.375
1.000
1.000
.500
4.000
2.625
6.000
8.750
11.750
13.000
2X Ø.625
4.500
7.750
1.125
2X .5 X 45°
4X .2 X 45°
4X Ø.250
8.375
8. Draw the electronic schematic symbols shown. Mirror the drawing, but make
sure the text remains readable. Delete the original image during the mirroring
process. Save the drawing as P12-8.
