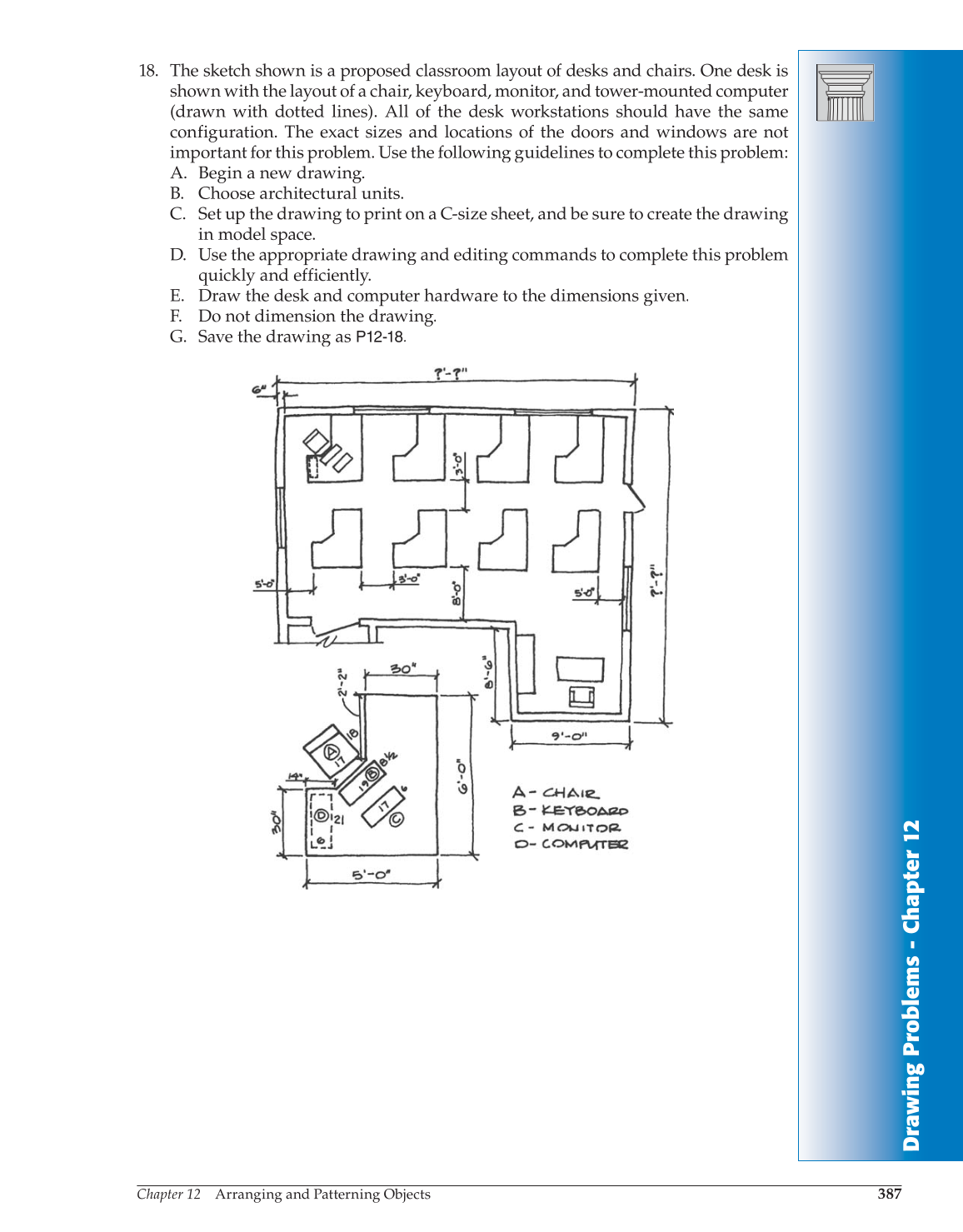

18. The sketch shown is a proposed classroom layout of desks and chairs. One desk is
shown with the layout of a chair, keyboard, monitor, and tower-mounted computer
(drawn with dotted lines). All of the desk workstations should have the same
configuration. The exact sizes and locations of the doors and windows are not
important for this problem. Use the following guidelines to complete this problem:
A. Begin a new drawing.
B. Choose architectural units.
C. Set up the drawing to print on a C-size sheet, and be sure to create the drawing
in model space.
D. Use the appropriate drawing and editing commands to complete this problem
quickly and efficiently.
E. Draw the desk and computer hardware to the dimensions given.
F. Do not dimension the drawing.
G. Save the drawing as P12-18.
