Drawing
Problems
-
Chapter
11
360
AutoCAD and Its Applications—Basics
Copyright Goodheart-Willcox Co., Inc.

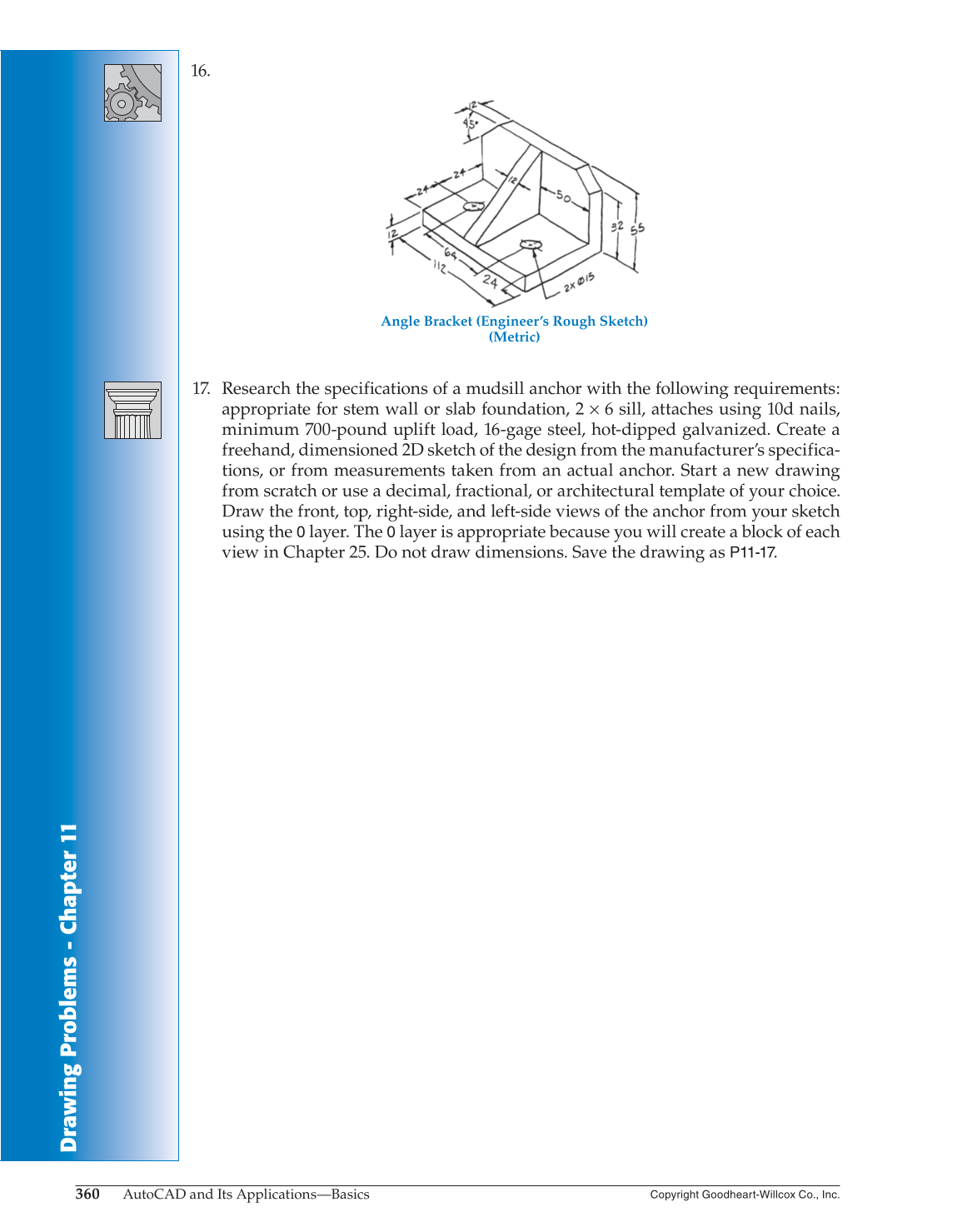

16.
Angle Bracket (Engineer’s Rough Sketch)
(Metric)
17. Research the specifications of a mudsill anchor with the following requirements:
appropriate for stem wall or slab foundation, 2 × 6 sill, attaches using 10d nails,
minimum 700-pound uplift load, 16-gage steel, hot-dipped galvanized. Create a
freehand, dimensioned 2D sketch of the design from the manufacturer’s specifica-
tions, or from measurements taken from an actual anchor. Start a new drawing
from scratch or use a decimal, fractional, or architectural template of your choice.
Draw the front, top, right-side, and left-side views of the anchor from your sketch
using the
0
layer. The
0
layer is appropriate because you will create a block of each
view in Chapter 25. Do not draw dimensions. Save the drawing as P11-17.
