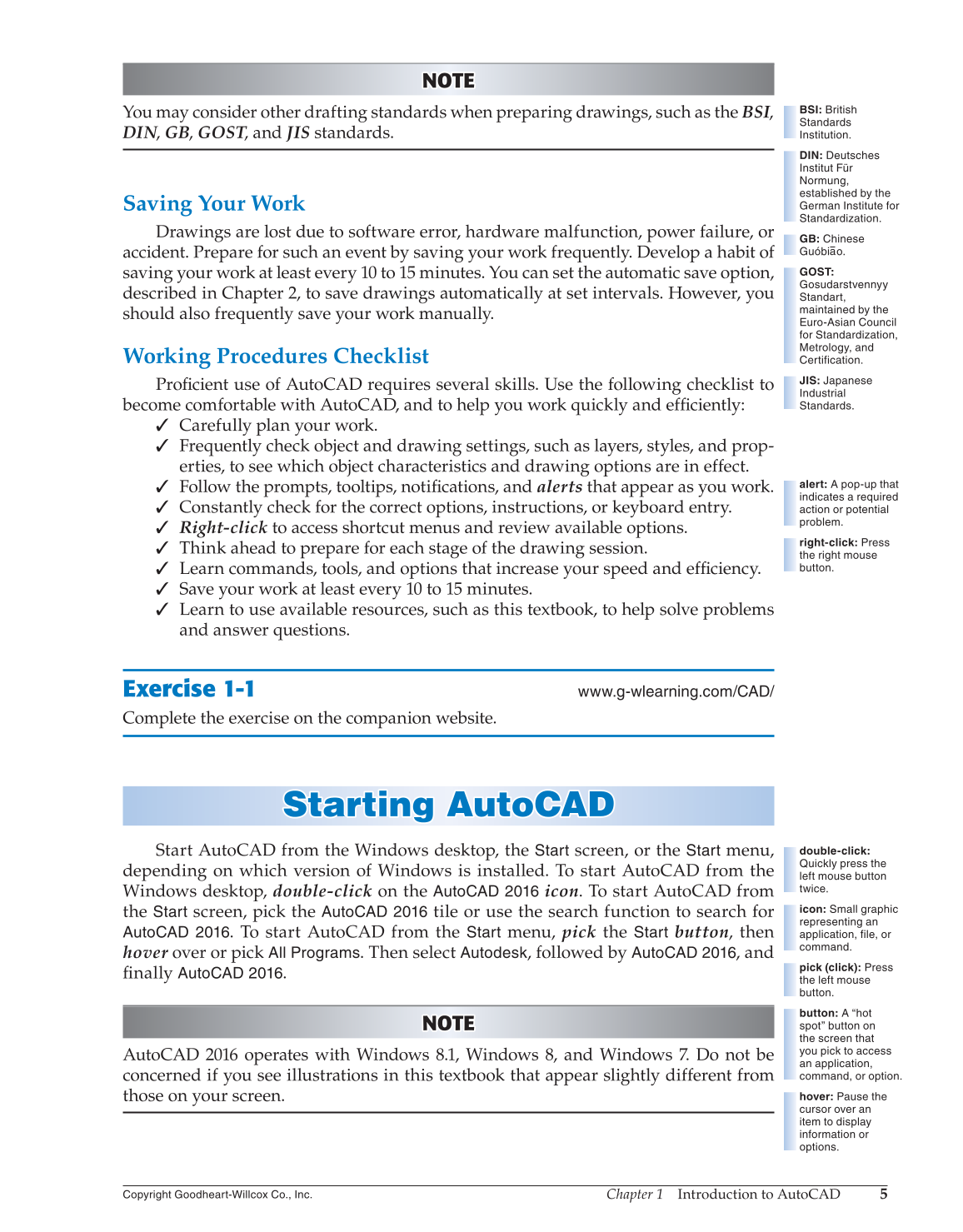

NOTE NOTE
You may consider other drafting standards when preparing drawings, such as the BSI,
DIN, GB, GOST, and JIS standards.
Saving Your Work
Drawings are lost due to software error, hardware malfunction, power failure, or
accident. Prepare for such an event by saving your work frequently. Develop a habit of
saving your work at least every 10 to 15 minutes. You can set the automatic save option,
described in Chapter 2, to save drawings automatically at set intervals. However, you
should also frequently save your work manually.
Working Procedures Checklist
Profi cient use of AutoCAD requires several skills. Use the following checklist to
become comfortable with AutoCAD, and to help you work quickly and effi ciently:
✓ Carefully plan your work.
✓ Frequently check object and drawing settings, such as layers, styles, and prop-
erties, to see which object characteristics and drawing options are in effect.
✓ Follow the prompts, tooltips, notifi cations, and alerts that appear as you work.
✓ Constantly check for the correct options, instructions, or keyboard entry.
✓ Right-click to access shortcut menus and review available options.
✓ Think ahead to prepare for each stage of the drawing session.
✓ Learn commands, tools, and options that increase your speed and effi ciency.
✓ Save your work at least every 10 to 15 minutes.
✓ Learn to use available resources, such as this textbook, to help solve problems
and answer questions.
Exercise 1-1
www.g-wlearning.com/CAD/
Complete the exercise on the companion website.
Starting AutoCAD St a rting AutoCAD
Start AutoCAD from the Windows desktop, the
Start
screen, or the
Start
menu,
depending on which version of Windows is installed. To start AutoCAD from the
Windows desktop, double-click on the
AutoCAD 2016
icon. To start AutoCAD from
the
Start
screen, pick the
AutoCAD 2016
tile or use the search function to search for
AutoCAD
2016. To start AutoCAD from the
Start
menu, pick the
Start
button, then
hover over or pick
All
Programs. Then select Autodesk, followed by
AutoCAD
2016, and
fi nally
AutoCAD
2016.
NOTE NOTE
AutoCAD 2016 operates with Windows 8.1, Windows 8, and Windows 7. Do not be
concerned if you see illustrations in this textbook that appear slightly different from
those on your screen.
BSI: British
Standards
Institution.
DIN: Deutsches
Institut Für
Normung,
established by the
German Institute for
Standardization.
GB: Chinese
Guóbiao.
GOST:
Gosudarstvennyy
Standart,
maintained by the
Euro-Asian Council
for Standardization,
Metrology, and
Certification.
JIS: Japanese
Industrial
Standards.
alert: A pop-up that
indicates a required
action or potential
problem.
right-click: Press
the right mouse
button.
double-click:
Quickly press the
left mouse button
twice.
icon: Small graphic
representing an
application, file, or
command.
pick (click): Press
the left mouse
button.
button: A “hot
spot” button on
the screen that
you pick to access
an application,
command, or option.
hover: Pause the
cursor over an
item to display
information or
options.
