Corner intersections of molding can be quickly created by extruding the same shape
in two different directions and then joining the two objects. First, draw the molding
profile. Then, copy and rotate the profile fi to orient the local Z axis in the desired direc- fi
tion, Figure 8-35A. Next, extrude the two profiles the desired lengths, fi Figure 8-35B.
Finally, union the two extrusions to create the mitered corner molding, Figure 8-35C.
Exercise 8-11
Complete the exercise on the companion website.
www.g-wlearning.com/CAD

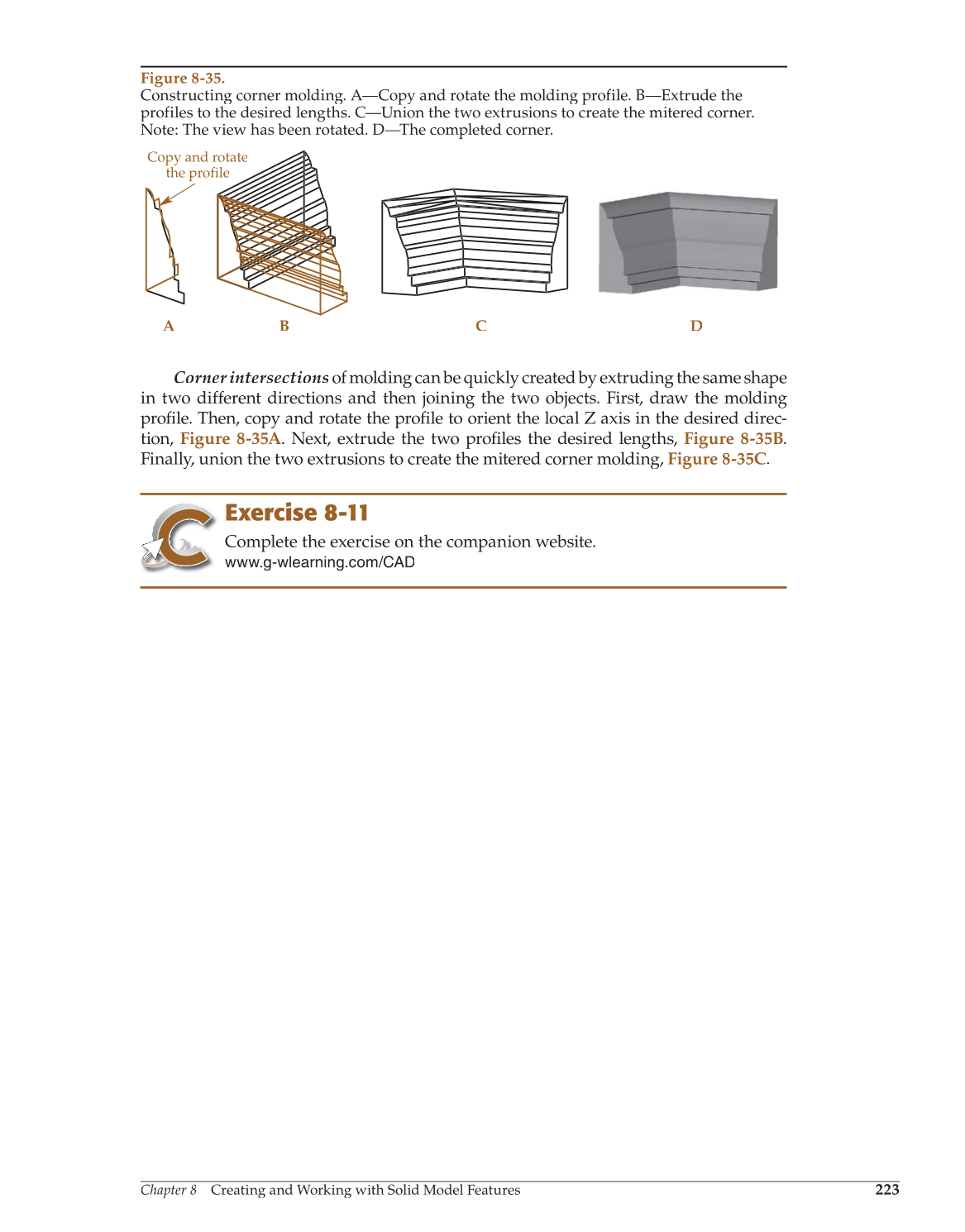

Figure 8-35.
Constructing corner molding. A—Copy and rotate the molding profile. B—Extrude the
profiles to the desired lengths. C—Union the two extrusions to create the mitered corner.
Note: The view has been rotated. D—The completed corner.
Copy and rotate
the profile
A C D B
