Drawing
Problems
-
Chapter
8
226
AutoCAD and Its Applications—Advanced

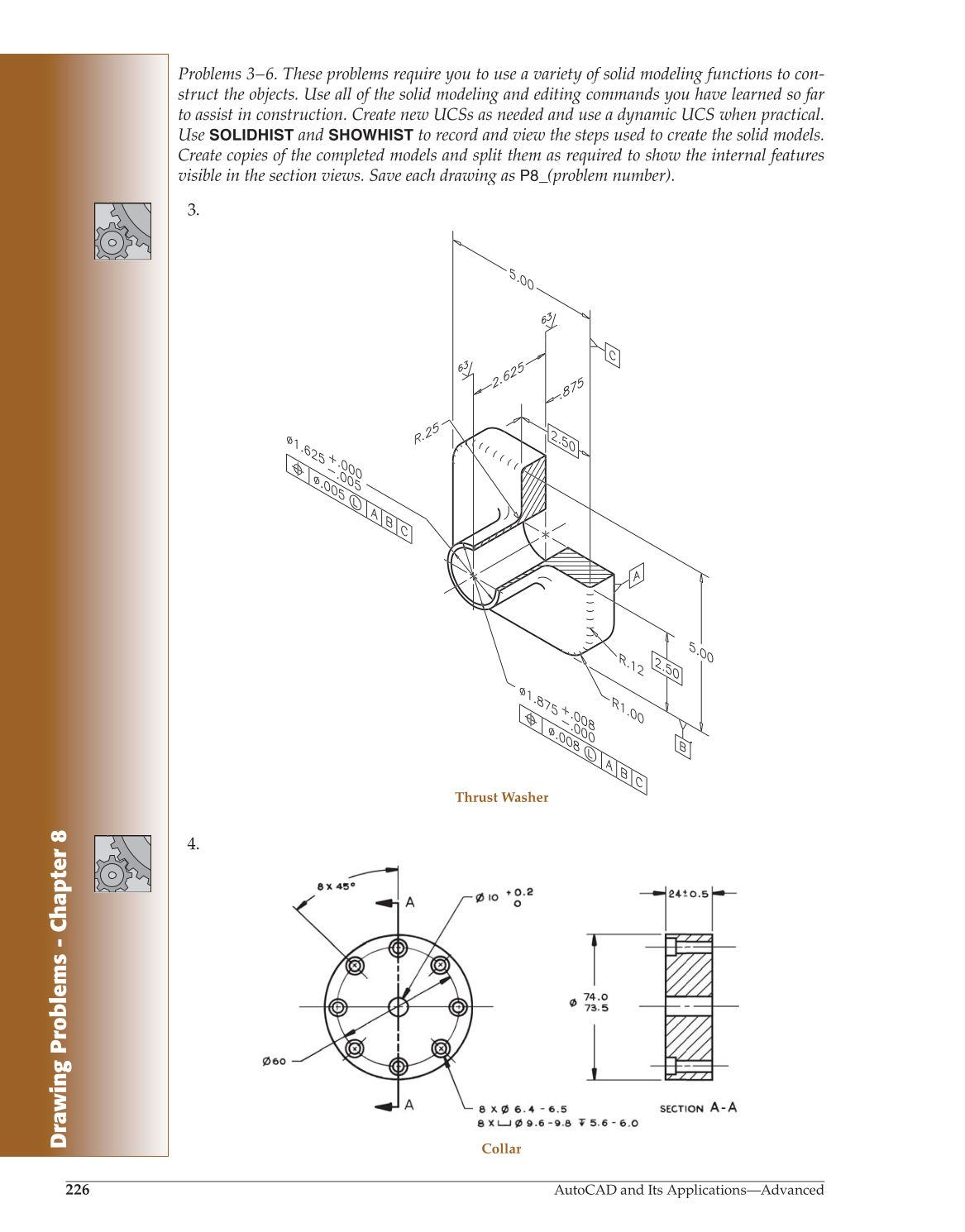

Problems 3–6. These problems require you to use a variety of solid modeling functions to con-
struct the objects. Use all of the solid modeling and editing commands you have learned so far
to assist in construction. Create new UCSs as needed and use a dynamic UCS when practical.
Use
SOLIDHIST
and
SHOWHIST
to record and view the steps used to create the solid models.
Create copies of the completed models and split them as required to show the internal features
visible in the section views. Save each drawing as P8_(problem number).
3.
Thrust Washer
4.
Collar
