Picking the
button sets
the value of
the
SOLIDHIST
system variable

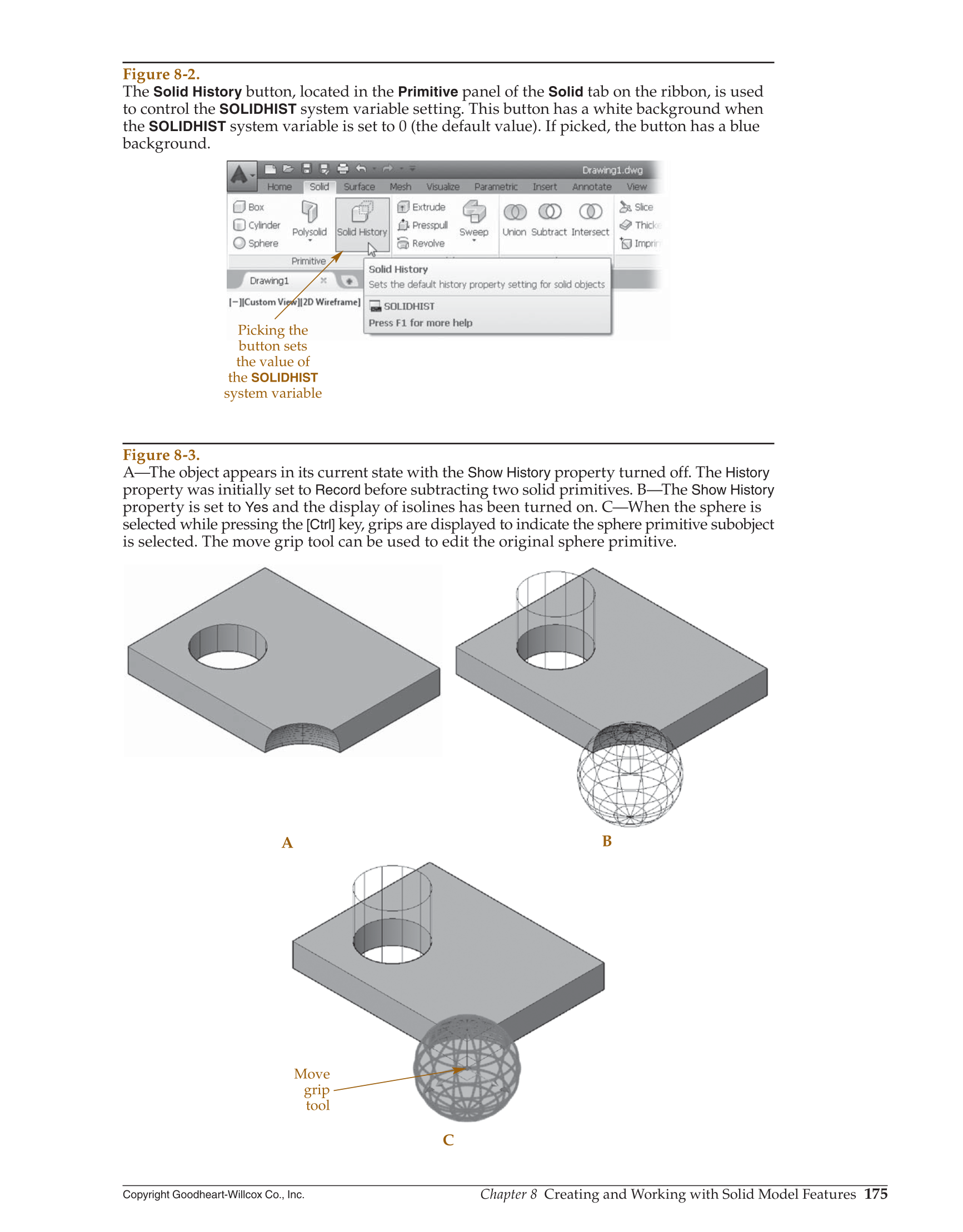

Figure 8-2.
The
Solid History
button, located in the
Primitive
panel of the
Solid
tab on the ribbon, is used
to control the
SOLIDHIST
system variable setting. This button has a white background when
the
SOLIDHIST
system variable is set to 0 (the default value). If picked, the button has a blue
background.
A
B
C
Move
grip
tool
Figure 8-3.
A—The object appears in its current state with the
Show History
property turned off. The
History
property was initially set to
Record
before subtracting two solid primitives. B—The
Show History
property is set to
Yes
and the display of isolines has been turned on. C—When the sphere is
selected while pressing the
[Ctrl]
key, grips are displayed to indicate the sphere primitive subobject
is selected. The move grip tool can be used to edit the original sphere primitive.
