Chapter 8 Creating and Working with Solid Model Features
201
Copyright Goodheart-Willcox Co., Inc.
Exercise 8-9
www.g-wlearning.com/CAD/
Complete the exercise on the companion website.

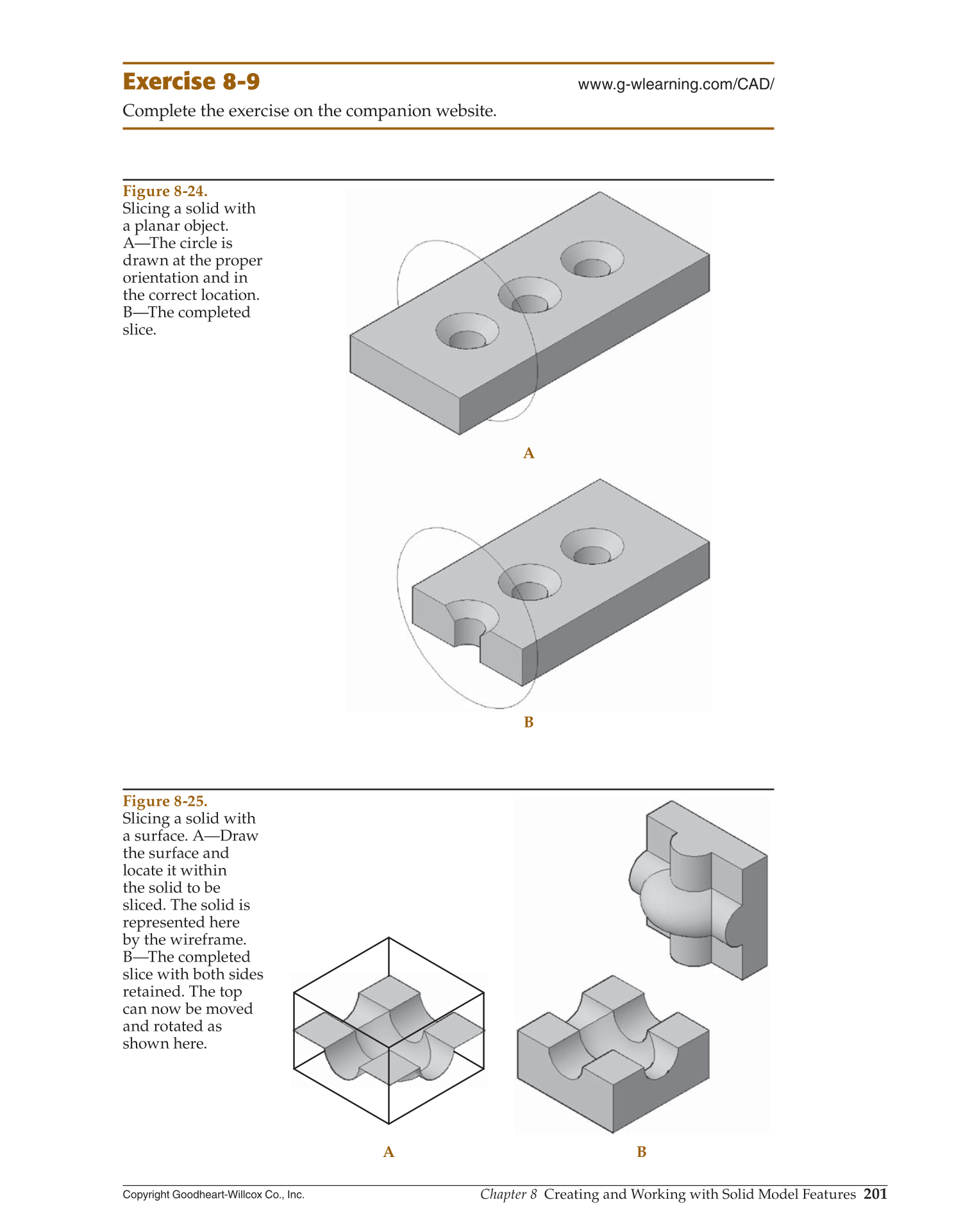

Figure 8-24.
Slicing a solid with
a planar object.
A—The circle is
drawn at the proper
orientation and in
the correct location.
B—The completed
slice.
A
B
A B
Figure 8-25.
Slicing a solid with
a surface. A—Draw
the surface and
locate it within
the solid to be
sliced. The solid is
represented here
by the wireframe.
B—The completed
slice with both sides
retained. The top
can now be moved
and rotated as
shown here.
