Move and Rotate Objects in 3D Space
The basic operation of moving and rotating an object relative to a second object or
set of points is done with the
3DALIGN
command. It allows you to reorient an object in
3D space. Using this command, you can correct errors of 3D construction and quickly
manipulate 3D objects. The
3DALIGN
command requires existing points (source) and
the new location of those existing points (destination).

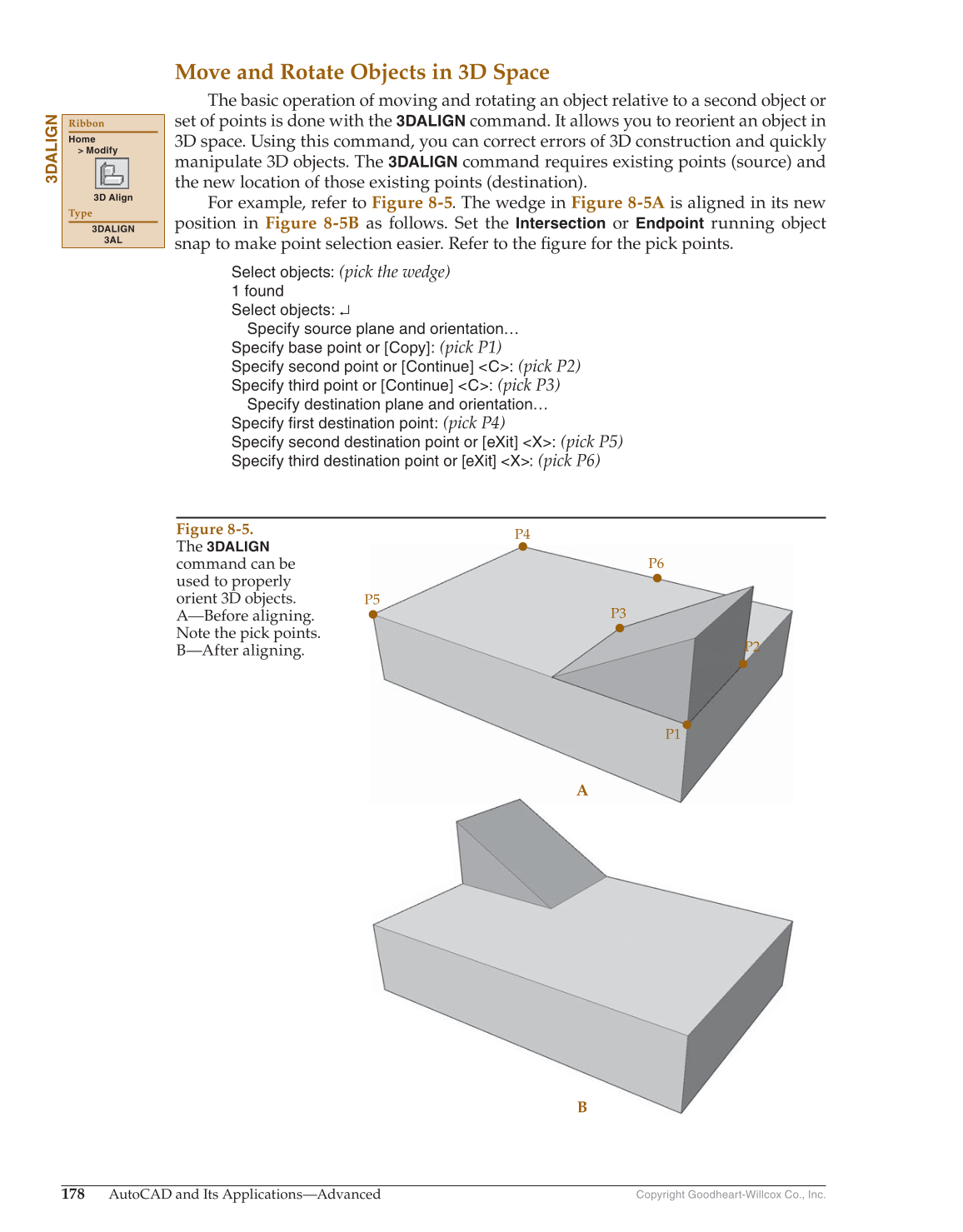

For example, refer to Figure 8-5. The wedge in Figure 8-5A is aligned in its new
position in Figure 8-5B as follows. Set the
Intersection
or
Endpoint
running object
snap to make point selection easier. Refer to the fi gure for the pick points.
Select objects:
(pick the wedge)
1 found
Select objects: ↵
Specify source plane and orientation…
Specify base point or [Copy]:
(pick P1)
Specify second point or [Continue] C:
(pick P2)
Specify third point or [Continue] C:
(pick P3)
Specify destination plane and orientation…
Specify first destination point:
(pick P4)
Specify second destination point or [eXit] X:
(pick P5)
Specify third destination point or [eXit] X:
(pick P6)
3DALIGN
Ribbon
Home
Modify
3D Align
Type
3DALIGN
3AL
Figure 8-5.
The
3DALIGN
command can be
used to properly
orient 3D objects.
A—Before aligning.
Note the pick points.
B—After aligning.
A
B
P4
P3
P1
P2
P6
P5
