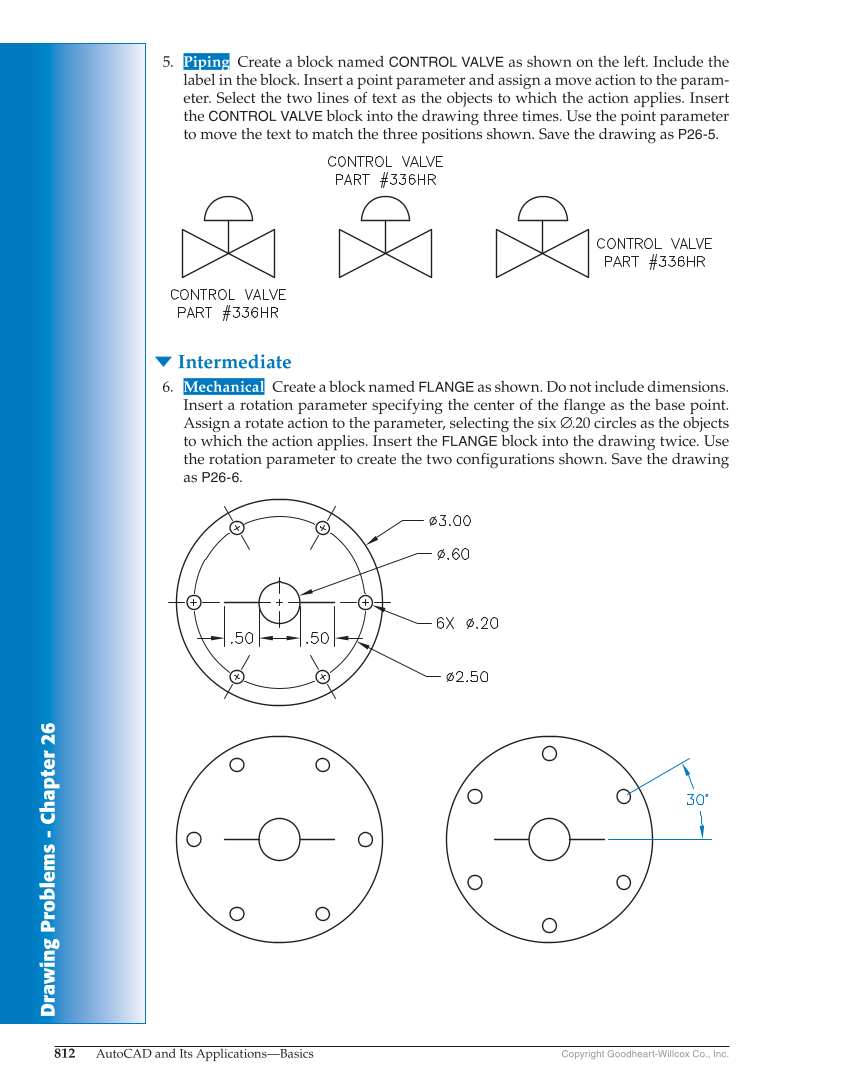

Drawing Problems - Chapter 1 Drawing Problems - Chapter 26 812 AutoCAD and Its Applications—Basics Copyright Goodheart-Willcox Co., Inc. 5. Piping Create a block named CONTROL VALVE as shown on the left. Include the label in the block. Insert a point parameter and assign a move action to the param- eter. Select the two lines of text as the objects to which the action applies. Insert the CONTROL VALVE block into the drawing three times. Use the point parameter to move the text to match the three positions shown. Save the drawing as P26-5. ▼ Intermediate 6. Mechanical Create a block named FLANGE as shown. Do not include dimensions. Insert a rotation parameter specifying the center of the flange as the base point. Assign a rotate action to the parameter, selecting the six ∅.20 circles as the objects to which the action applies. Insert the FLANGE block into the drawing twice. Use the rotation parameter to create the two configurations shown. Save the drawing as P26-6.
