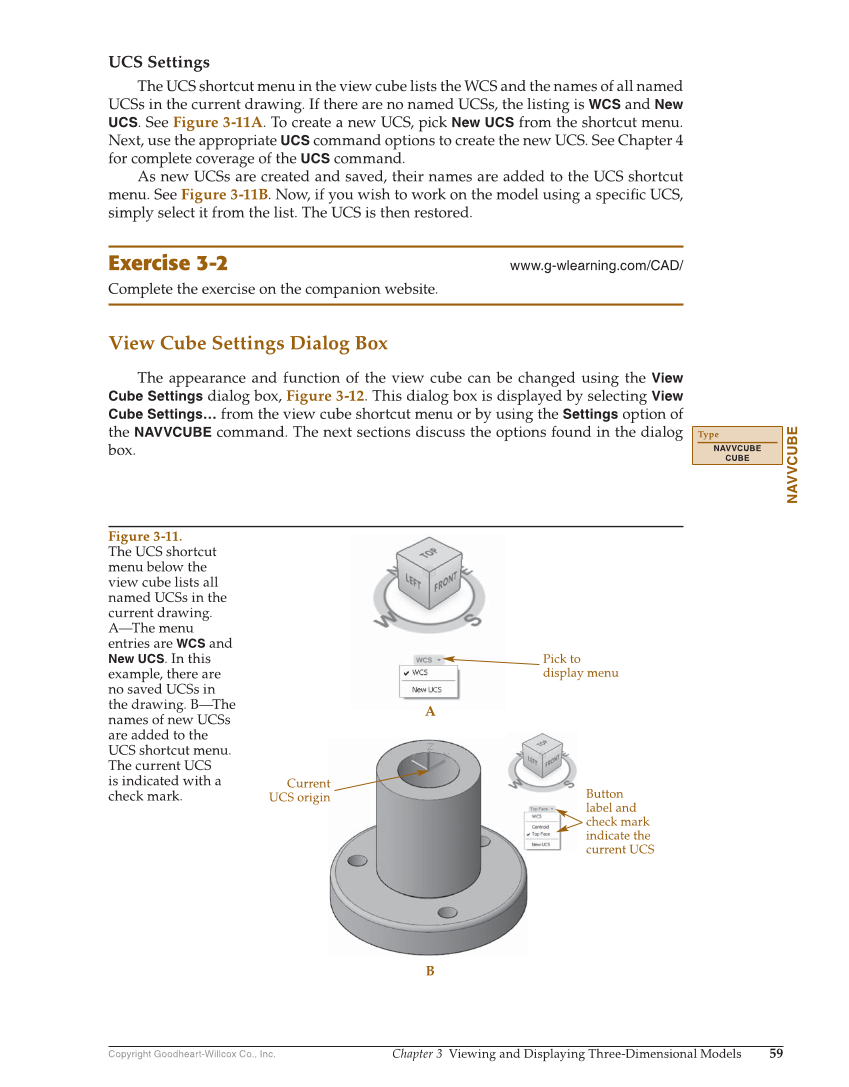

Copyright Goodheart-Willcox Co., Inc. Chapter 3 Viewing and Displaying Three-Dimensional Models 59 UCS Settings The UCS shortcut menu in the view cube lists the WCS and the names of all named UCSs in the current drawing. If there are no named UCSs, the listing is WCS and New UCS. See Figure 3-11A. To create a new UCS, pick New UCS from the shortcut menu. Next, use the appropriate UCS command options to create the new UCS. See Chapter 4 for complete coverage of the UCS command. As new UCSs are created and saved, their names are added to the UCS shortcut menu. See Figure 3-11B. Now, if you wish to work on the model using a specifi c UCS, simply select it from the list. The UCS is then restored. Exercise 3-2 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. View Cube Settings Dialog Box The appearance and function of the view cube can be changed using the View Cube Settings dialog box, Figure 3-12. This dialog box is displayed by selecting View Cube Settings… from the view cube shortcut menu or by using the Settings option of the NAVVCUBE command. The next sections discuss the options found in the dialog box. NAVVCUBE Type NAVVCUBE CUBE Pick to display menu Current UCS origin Button label and check mark indicate the current UCS A B Figure 3-11. The UCS shortcut menu below the view cube lists all named UCSs in the current drawing. A—The menu entries are WCS and New UCS. In this example, there are no saved UCSs in the drawing. B—The names of new UCSs are added to the UCS shortcut menu. The current UCS is indicated with a check mark.
