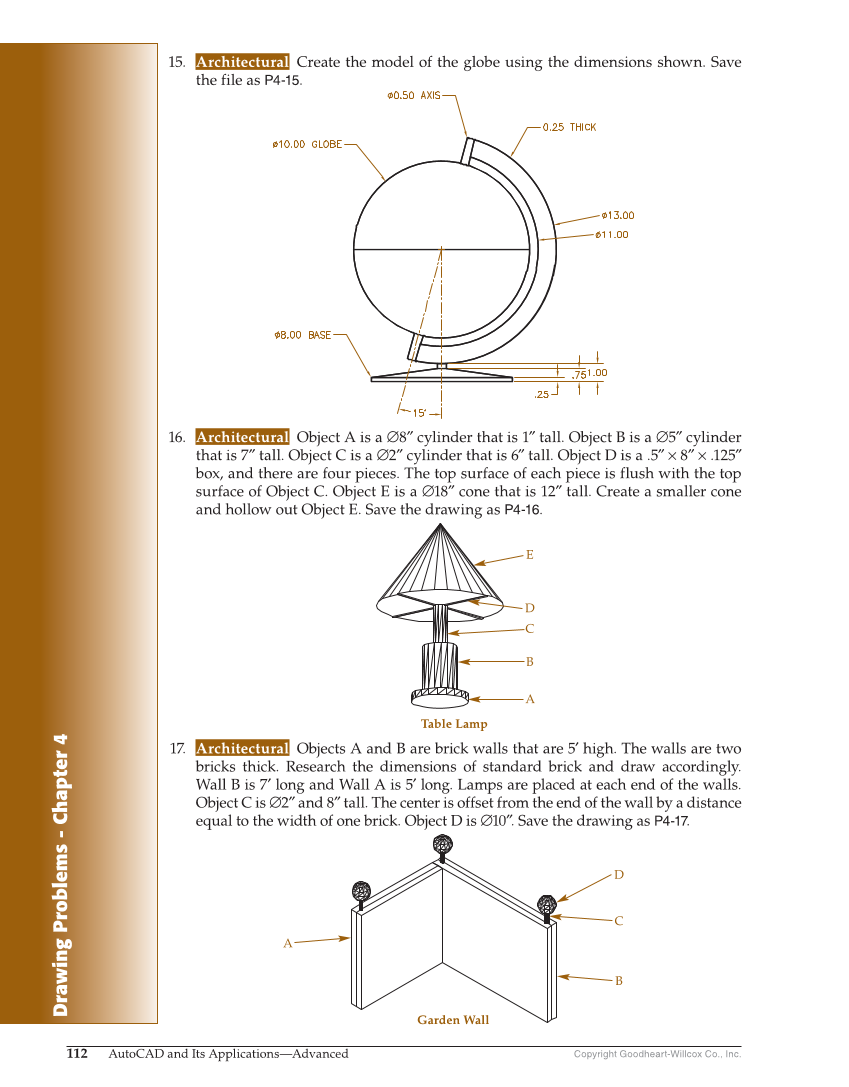

Drawing Problems - Chapter 4 Copyright Goodheart-Willcox Co., Inc. 112 AutoCAD and Its Applications—Advanced 15. Architectural Create the model of the globe using the dimensions shown. Save the file as P4-15. A B C D E Table Lamp A B C D Garden Wall 16. Architectural Object A is a ∅8″ cylinder that is 1″ tall. Object B is a ∅5″ cylinder that is 7″ tall. Object C is a ∅2″ cylinder that is 6″ tall. Object D is a .5″ × 8″ × .125″ box, and there are four pieces. The top surface of each piece is flush with the top surface of Object C. Object E is a ∅18″ cone that is 12″ tall. Create a smaller cone and hollow out Object E. Save the drawing as P4-16. 17. Architectural Objects A and B are brick walls that are 5′ high. The walls are two bricks thick. Research the dimensions of standard brick and draw accordingly. Wall B is 7′ long and Wall A is 5′ long. Lamps are placed at each end of the walls. Object C is ∅2″ and 8″ tall. The center is offset from the end of the wall by a distance equal to the width of one brick. Object D is ∅10″. Save the drawing as P4-17.
