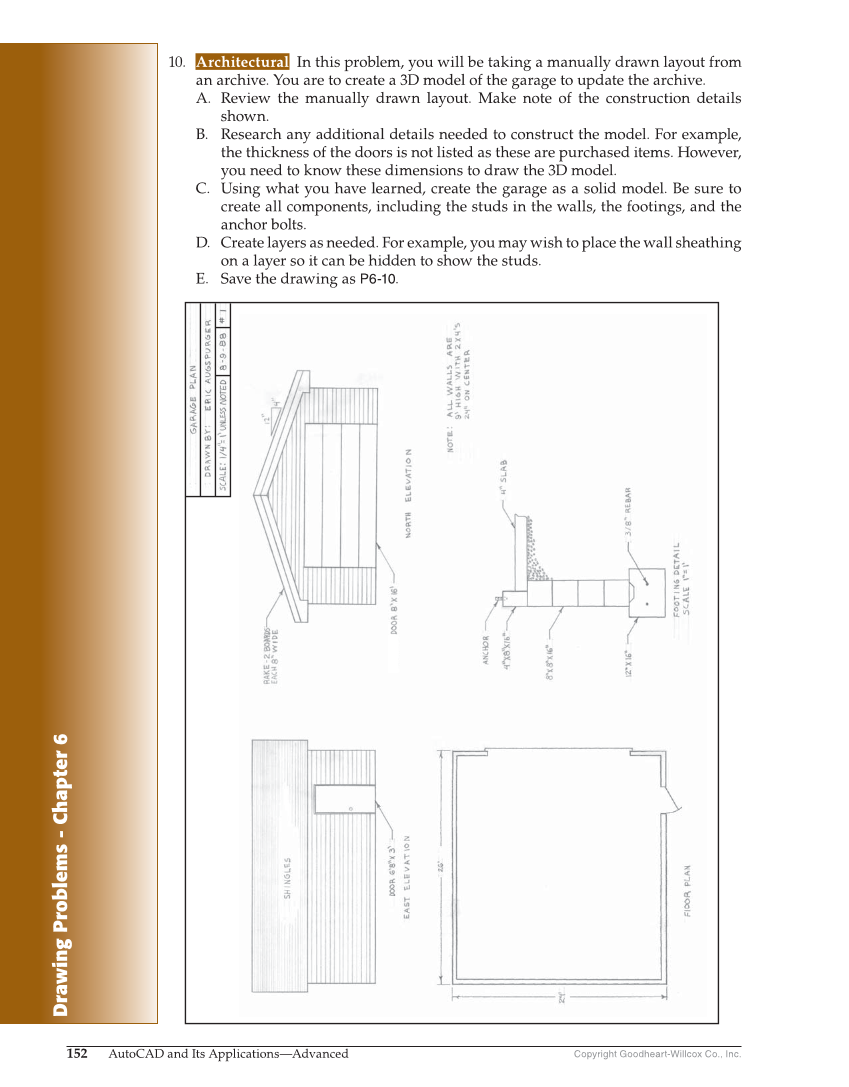

Drawing Problems - Chapter 6 Copyright Goodheart-Willcox Co., Inc. 152 AutoCAD and Its Applications—Advanced 10. Architectural In this problem, you will be taking a manually drawn layout from an archive. You are to create a 3D model of the garage to update the archive. A. Review the manually drawn layout. Make note of the construction details shown. B. Research any additional details needed to construct the model. For example, the thickness of the doors is not listed as these are purchased items. However, you need to know these dimensions to draw the 3D model. C. Using what you have learned, create the garage as a solid model. Be sure to create all components, including the studs in the walls, the footings, and the anchor bolts. D. Create layers as needed. For example, you may wish to place the wall sheathing on a layer so it can be hidden to show the studs. E. Save the drawing as P6-10.
