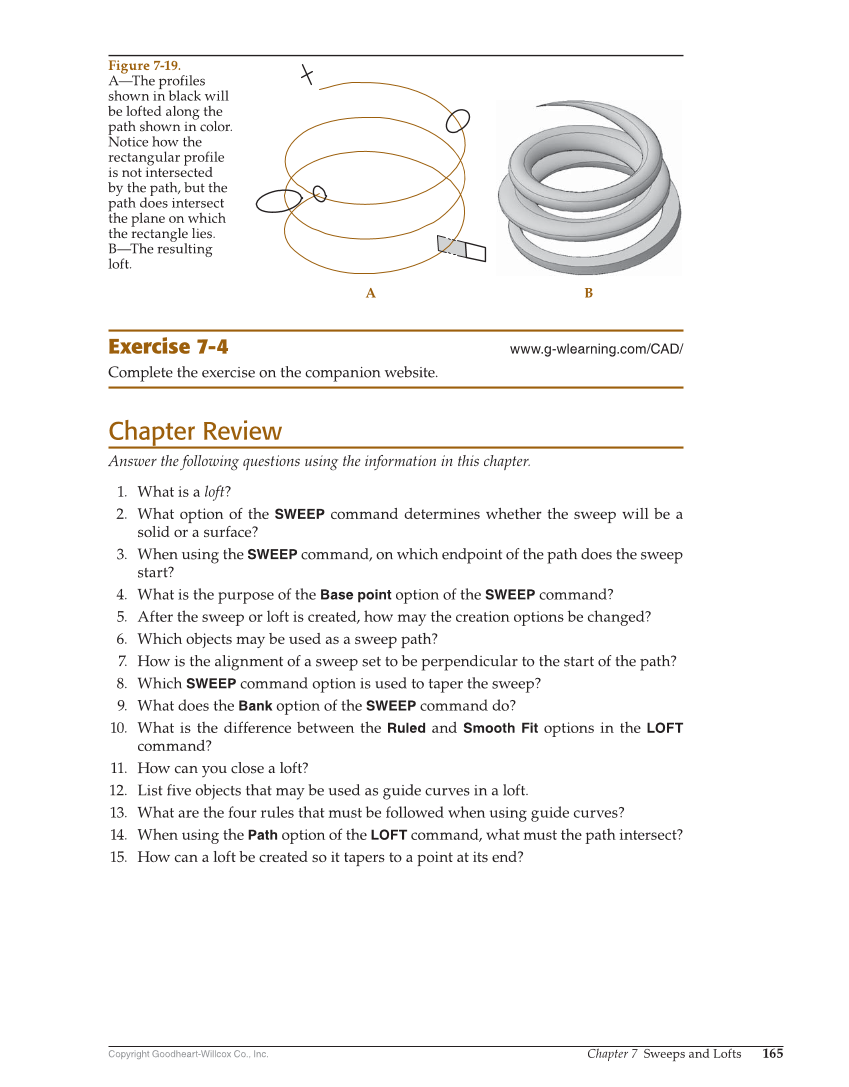

Copyright Goodheart-Willcox Co., Inc. Chapter 7 Sweeps and Lofts 165 Exercise 7-4 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. Chapter Review Answer the following questions using the information in this chapter. 1. What is a loft? 2. What option of the SWEEP command determines whether the sweep will be a solid or a surface? 3. When using the SWEEP command, on which endpoint of the path does the sweep start? 4. What is the purpose of the Base point option of the SWEEP command? 5. After the sweep or loft is created, how may the creation options be changed? 6. Which objects may be used as a sweep path? 7. How is the alignment of a sweep set to be perpendicular to the start of the path? 8. Which SWEEP command option is used to taper the sweep? 9. What does the Bank option of the SWEEP command do? 10. What is the difference between the Ruled and Smooth Fit options in the LOFT command? 11. How can you close a loft? 12. List five objects that may be used as guide curves in a loft. 13. What are the four rules that must be followed when using guide curves? 14. When using the Path option of the LOFT command, what must the path intersect? 15. How can a loft be created so it tapers to a point at its end? A B Figure 7-19. A—The profiles shown in black will be lofted along the path shown in color. Notice how the rectangular profile is not intersected by the path, but the path does intersect the plane on which the rectangle lies. B—The resulting loft.
