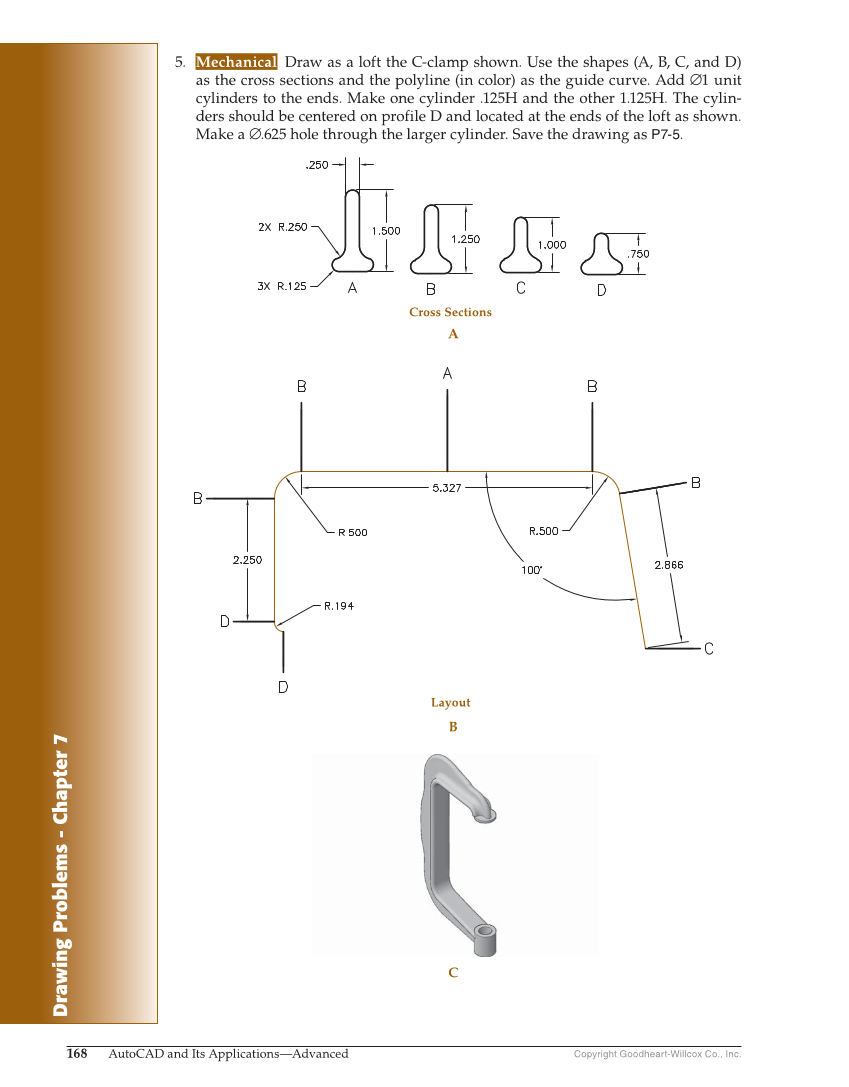

Drawing Problems - Chapter 7 Copyright Goodheart-Willcox Co., Inc. 168 AutoCAD and Its Applications—Advanced 5. Mechanical Draw as a loft the C-clamp shown. Use the shapes (A, B, C, and D) as the cross sections and the polyline (in color) as the guide curve. Add ∅1 unit cylinders to the ends. Make one cylinder .125H and the other 1.125H. The cylin- ders should be centered on profile D and located at the ends of the loft as shown. Make a ∅.625 hole through the larger cylinder. Save the drawing as P7-5. Cross Sections Layout A B C
