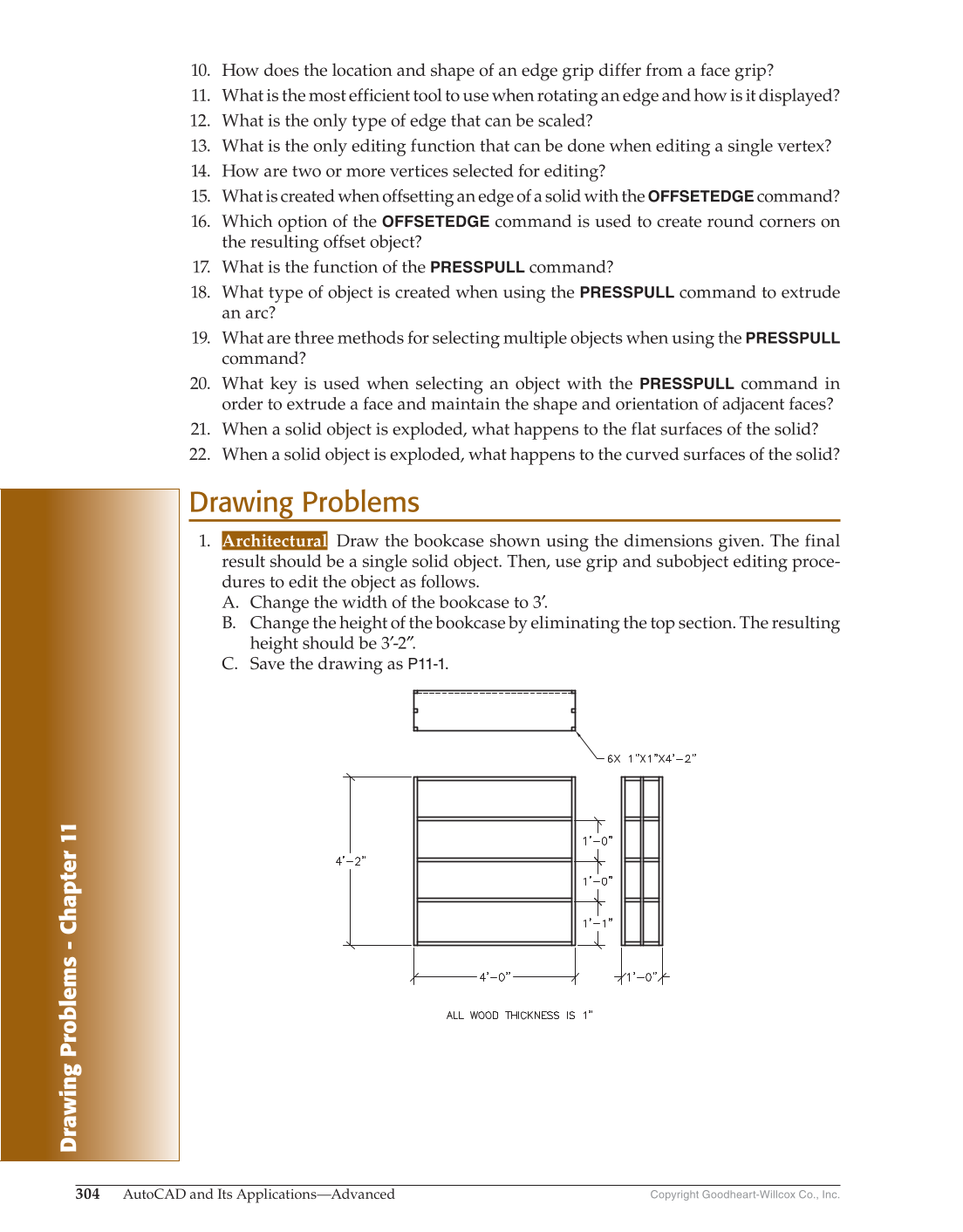

Drawing Problems - Chapter 11 Copyright Goodheart-Willcox Co., Inc. 304 AutoCAD and Its Applications—Advanced 10. How does the location and shape of an edge grip differ from a face grip? 11. What is the most efficient tool to use when rotating an edge and how is it displayed? 12. What is the only type of edge that can be scaled? 13. What is the only editing function that can be done when editing a single vertex? 14. How are two or more vertices selected for editing? 15. What is created when offsetting an edge of a solid with the OFFSETEDGE command? 16. Which option of the OFFSETEDGE command is used to create round corners on the resulting offset object? 17. What is the function of the PRESSPULL command? 18. What type of object is created when using the PRESSPULL command to extrude an arc? 19. What are three methods for selecting multiple objects when using the PRESSPULL command? 20. What key is used when selecting an object with the PRESSPULL command in order to extrude a face and maintain the shape and orientation of adjacent faces? 21. When a solid object is exploded, what happens to the flat surfaces of the solid? 22. When a solid object is exploded, what happens to the curved surfaces of the solid? Drawing Problems 1. Architectural Draw the bookcase shown using the dimensions given. The final result should be a single solid object. Then, use grip and subobject editing proce- dures to edit the object as follows. A. Change the width of the bookcase to 3′. B. Change the height of the bookcase by eliminating the top section. The resulting height should be 3′-2″. C. Save the drawing as P11-1.
