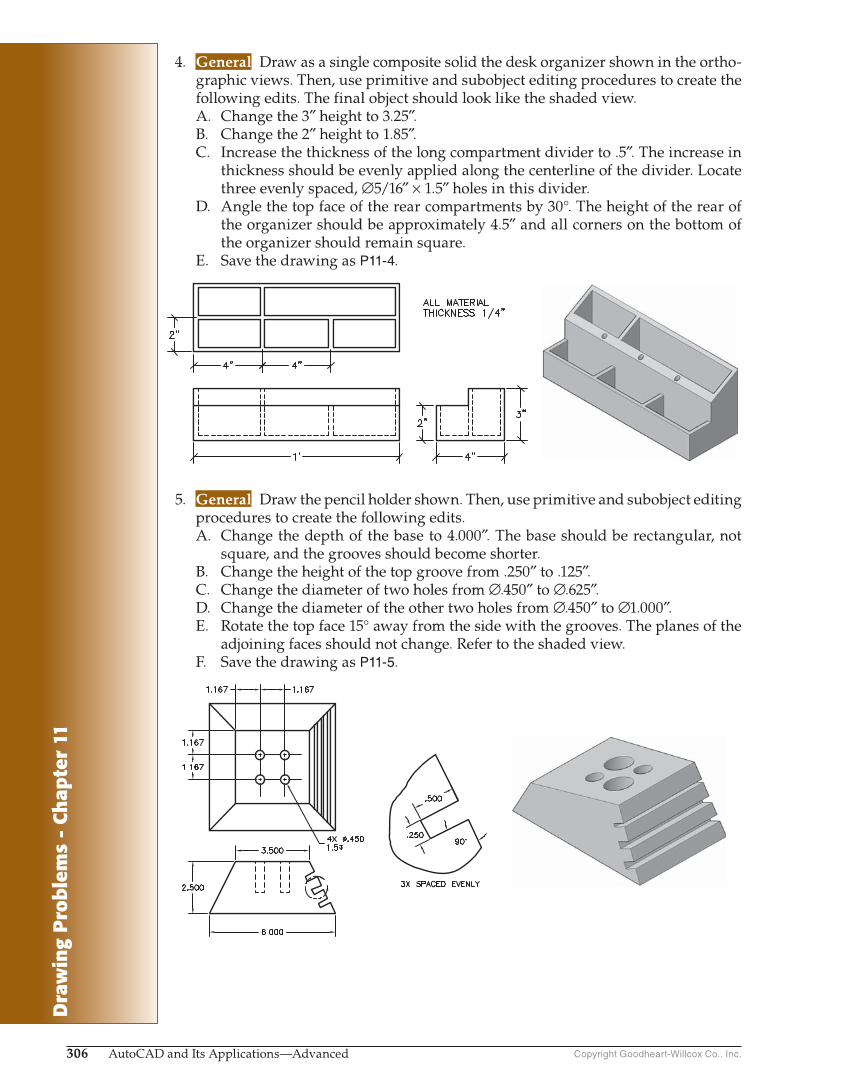

Drawing Problems - Chapter 11 Copyright Goodheart-Willcox Co., Inc. 306 AutoCAD and Its Applications—Advanced 4. General Draw as a single composite solid the desk organizer shown in the ortho- graphic views. Then, use primitive and subobject editing procedures to create the following edits. The final object should look like the shaded view. A. Change the 3″ height to 3.25″. B. Change the 2″ height to 1.85″. C. Increase the thickness of the long compartment divider to .5″. The increase in thickness should be evenly applied along the centerline of the divider. Locate three evenly spaced, ∅5/16″ × 1.5″ holes in this divider. D. Angle the top face of the rear compartments by 30°. The height of the rear of the organizer should be approximately 4.5″ and all corners on the bottom of the organizer should remain square. E. Save the drawing as P11-4. 5. General Draw the pencil holder shown. Then, use primitive and subobject editing procedures to create the following edits. A. Change the depth of the base to 4.000″. The base should be rectangular, not square, and the grooves should become shorter. B. Change the height of the top groove from .250″ to .125″. C. Change the diameter of two holes from ∅.450″ to ∅.625″. D. Change the diameter of the other two holes from ∅.450″ to ∅1.000″. E. Rotate the top face 15° away from the side with the grooves. The planes of the adjoining faces should not change. Refer to the shaded view. F. Save the drawing as P11-5.
