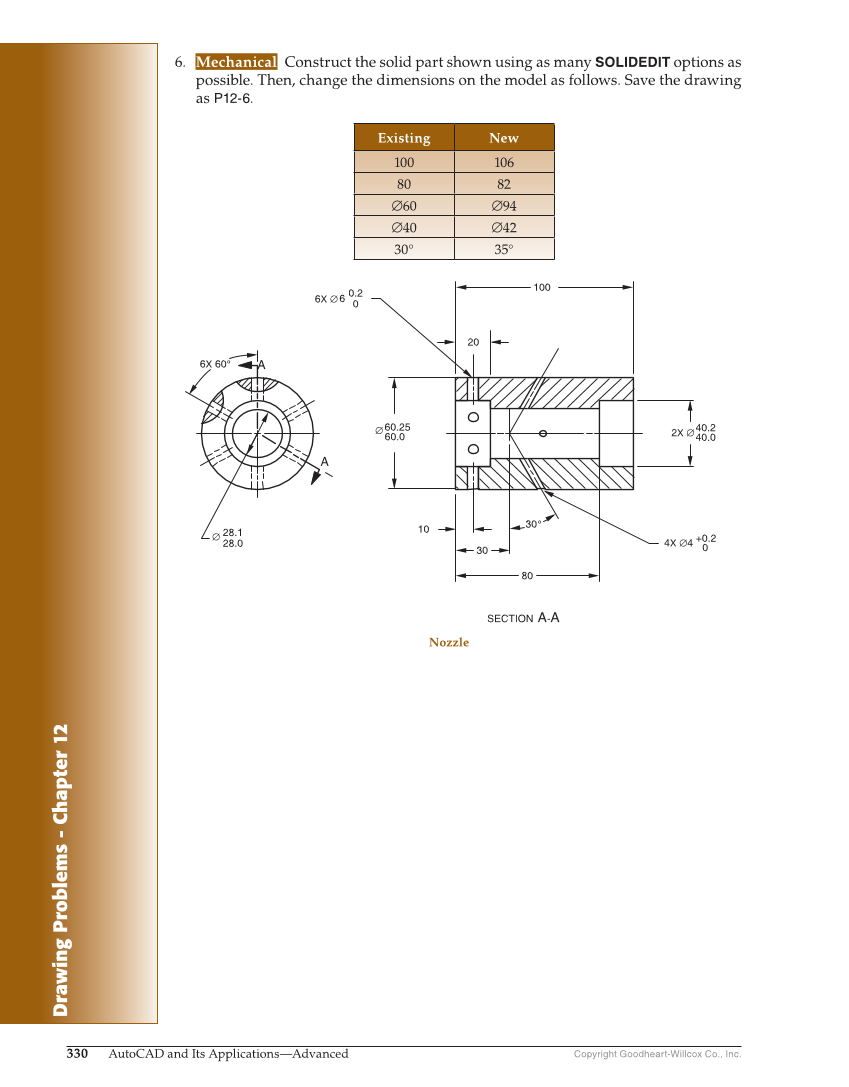

Drawing Problems - Chapter 12 Copyright Goodheart-Willcox Co., Inc. 330 AutoCAD and Its Applications—Advanced 6. Mechanical Construct the solid part shown using as many SOLIDEDIT options as possible. Then, change the dimensions on the model as follows. Save the drawing as P12-6. ∅ 28.1 28.0 A A SECTION -A A ∅ 0.2 0 6 80 100 60.25 60.0 +0.2 0 40.2 40.0 30 20 10 30° 6X 60° 6X ∅ 2X ∅ 4X ∅4 Nozzle Existing New 100 106 80 82 ∅60 ∅94 ∅40 ∅42 30° 35°
