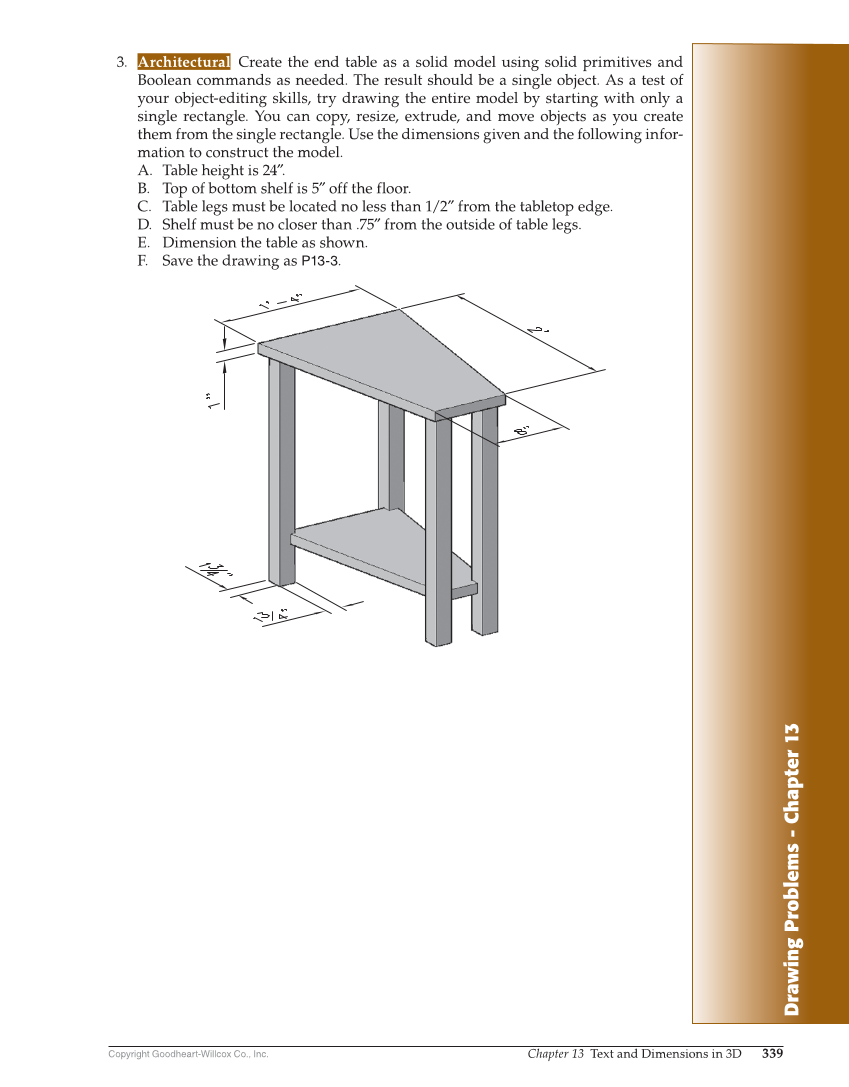

Drawing Problems - Chapter 13 Copyright Goodheart-Willcox Co., Inc. Chapter 13 Text and Dimensions in 3D 339 3. Architectural Create the end table as a solid model using solid primitives and Boolean commands as needed. The result should be a single object. As a test of your object-editing skills, try drawing the entire model by starting with only a single rectangle. You can copy, resize, extrude, and move objects as you create them from the single rectangle. Use the dimensions given and the following infor- mation to construct the model. A. Table height is 24″. B. Top of bottom shelf is 5″ off the floor. C. Table legs must be located no less than 1/2″ from the tabletop edge. D. Shelf must be no closer than .75″ from the outside of table legs. E. Dimension the table as shown. F. Save the drawing as P13-3.
