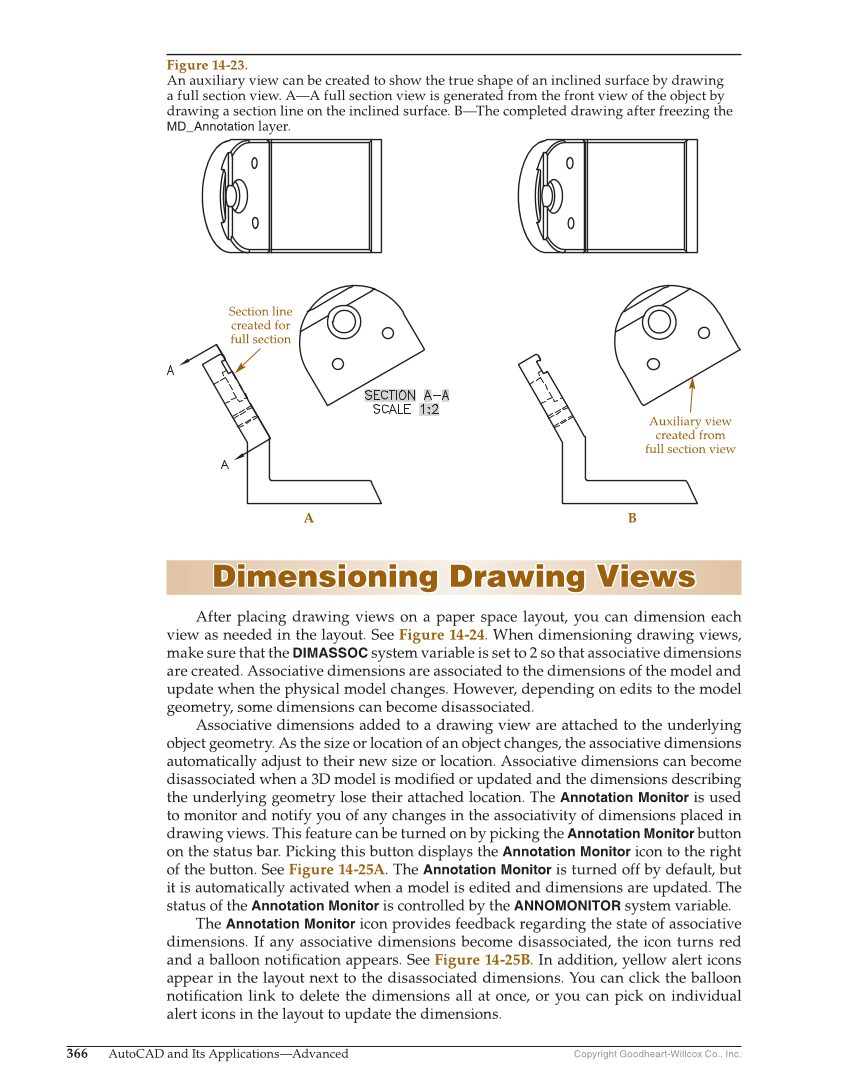

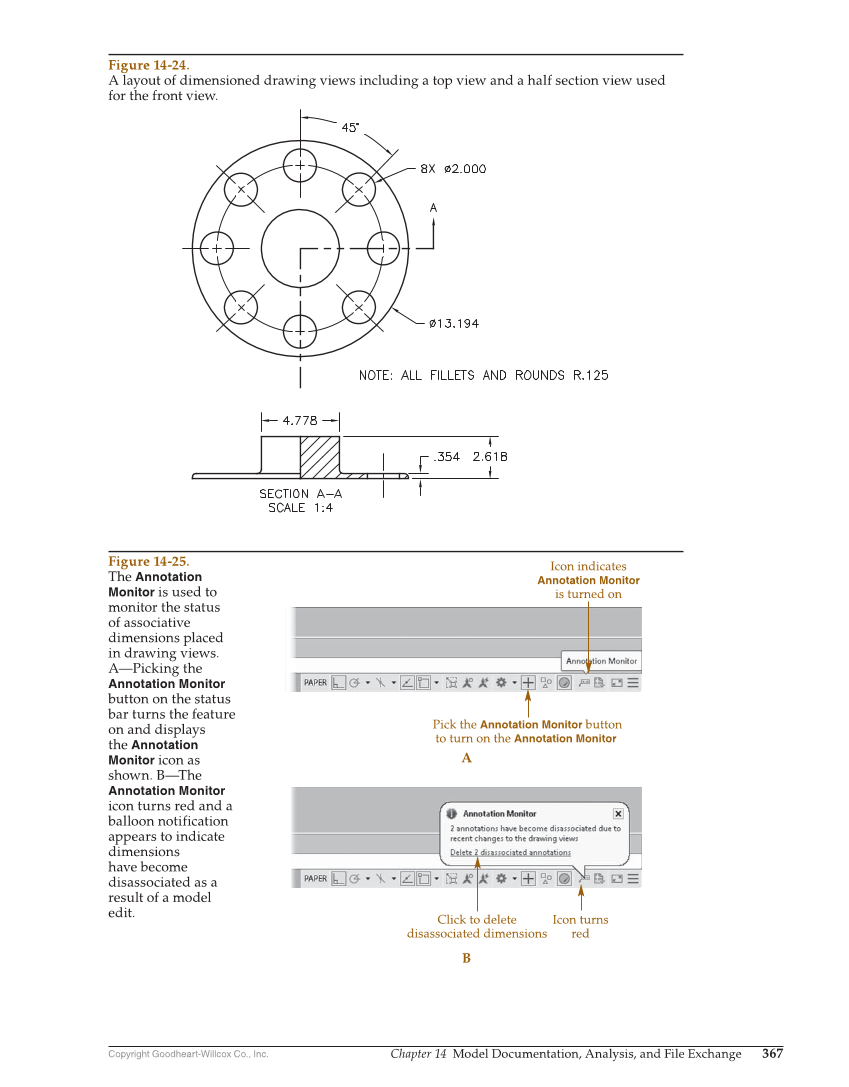

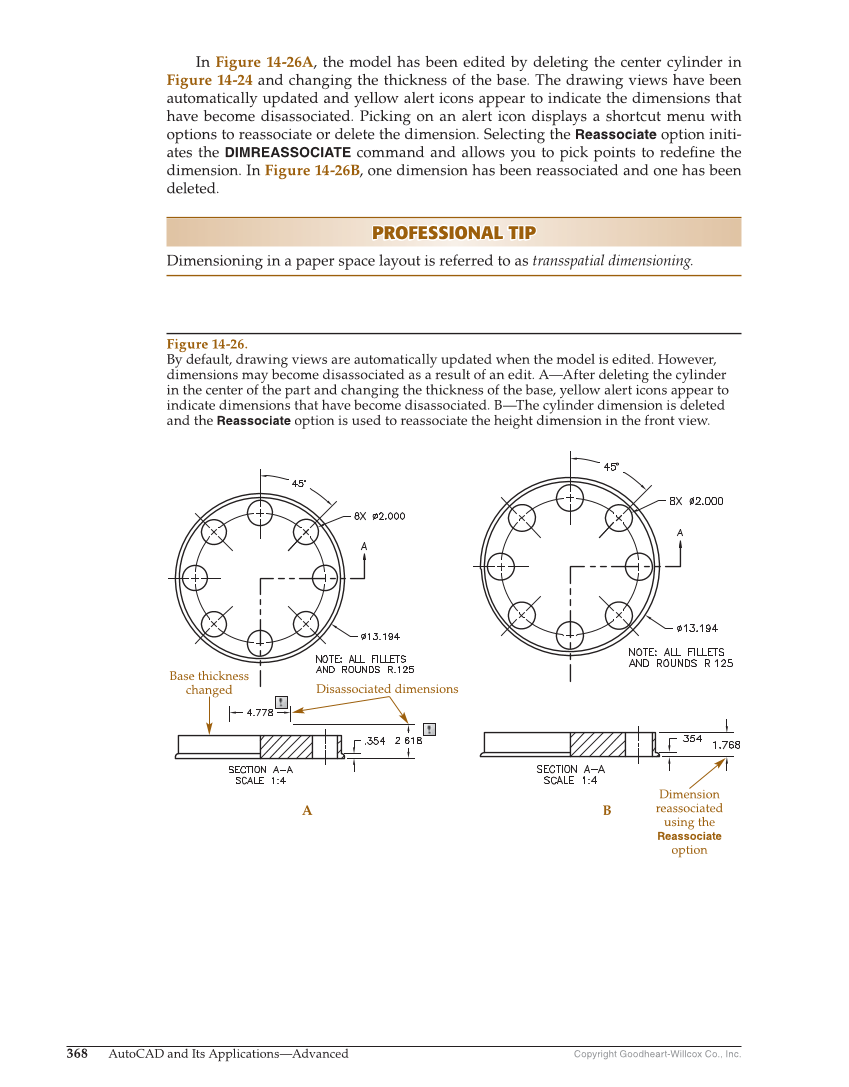

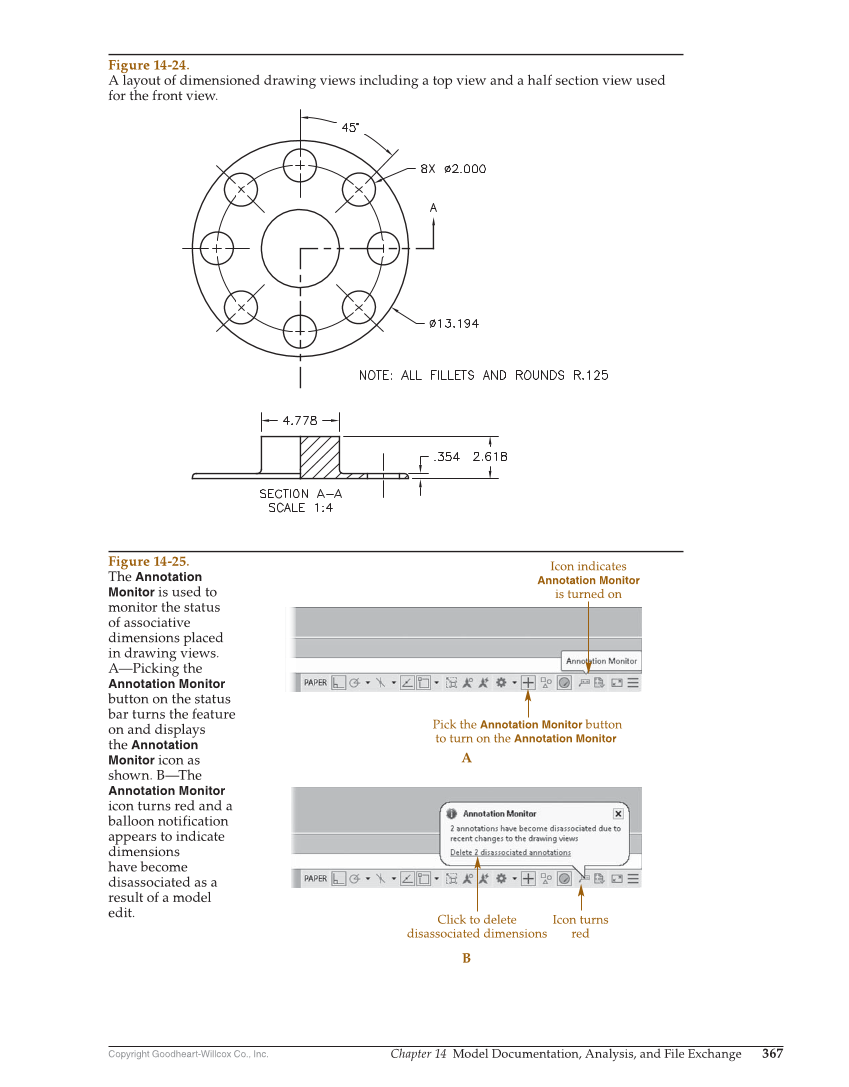

Copyright Goodheart-Willcox Co., Inc. Chapter 14 Model Documentation, Analysis, and File Exchange 367 Figure 14-24. A layout of dimensioned drawing views including a top view and a half section view used for the front view. Figure 14-25. The Annotation Monitor is used to monitor the status of associative dimensions placed in drawing views. A—Picking the Annotation Monitor button on the status bar turns the feature on and displays the Annotation Monitor icon as shown. B—The Annotation Monitor icon turns red and a balloon notification appears to indicate dimensions have become disassociated as a result of a model edit. Pick the Annotation Monitor button to turn on the Annotation Monitor Click to delete disassociated dimensions Icon turns red Icon indicates Annotation Monitor is turned on A B
