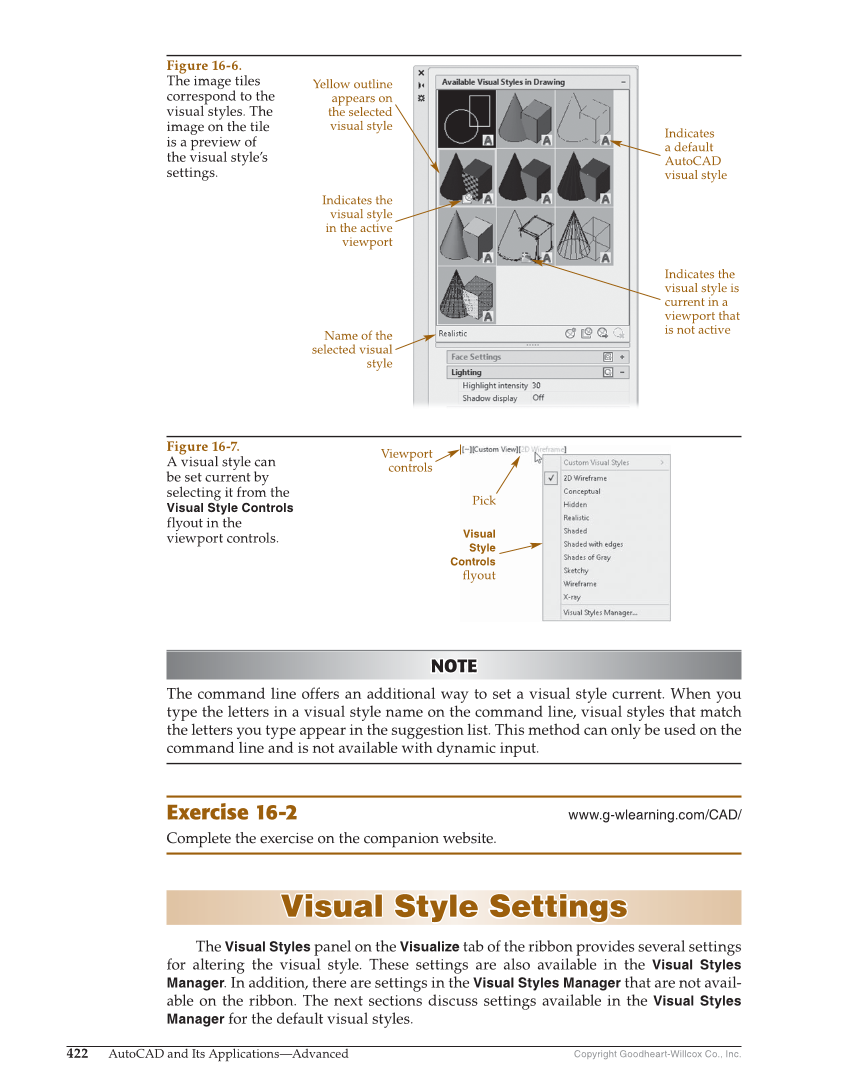

Copyright Goodheart-Willcox Co., Inc. 422 AutoCAD and Its Applications—Advanced NOTE NOTE The command line offers an additional way to set a visual style current. When you type the letters in a visual style name on the command line, visual styles that match the letters you type appear in the suggestion list. This method can only be used on the command line and is not available with dynamic input. Exercise 16-2 www.g-wlearning.com/CAD/ Complete the exercise on the companion website. Visual Style Settings Visual Style Settings The Visual Styles panel on the Visualize tab of the ribbon provides several settings for altering the visual style. These settings are also available in the Visual Styles Manager. In addition, there are settings in the Visual Styles Manager that are not avail- able on the ribbon. The next sections discuss settings available in the Visual Styles Manager for the default visual styles. Viewport controls Pick Visual Style Controls flyout Figure 16-7. A visual style can be set current by selecting it from the Visual Style Controls flyout in the viewport controls. Yellow outline appears on the selected visual style Indicates the visual style in the active viewport Name of the selected visual style Indicates a default AutoCAD visual style Indicates the visual style is current in a viewport that is not active Figure 16-6. The image tiles correspond to the visual styles. The image on the tile is a preview of the visual style’s settings.
