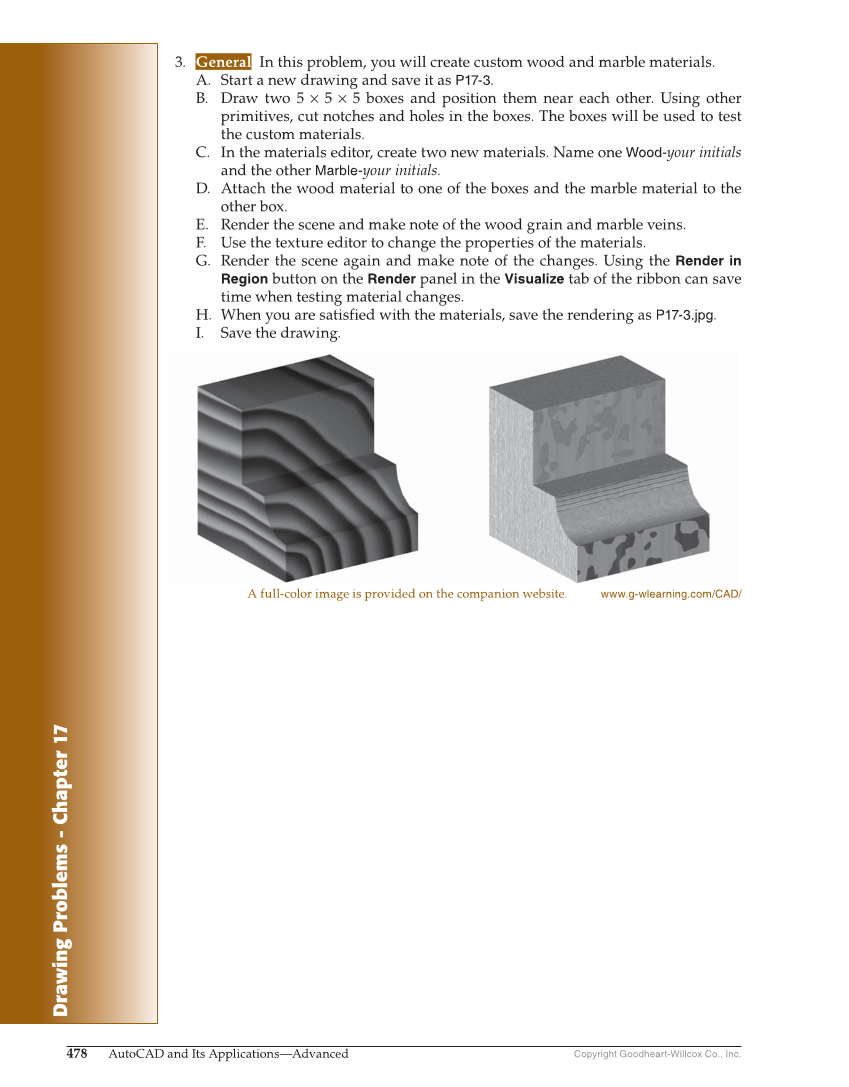

Drawing Problems - Chapter 1 Drawing Problems - Chapter 17 Copyright Goodheart-Willcox Co., Inc. 478 AutoCAD and Its Applications—Advanced 3. General In this problem, you will create custom wood and marble materials. A. Start a new drawing and save it as P17-3. B. Draw two 5 × 5 × 5 boxes and position them near each other. Using other primitives, cut notches and holes in the boxes. The boxes will be used to test the custom materials. C. In the materials editor, create two new materials. Name one Wood-your initials and the other Marble-your initials. D. Attach the wood material to one of the boxes and the marble material to the other box. E. Render the scene and make note of the wood grain and marble veins. F. Use the texture editor to change the properties of the materials. G. Render the scene again and make note of the changes. Using the Render in Region button on the Render panel in the Visualize tab of the ribbon can save time when testing material changes. H. When you are satisfied with the materials, save the rendering as P17-3.jpg. I. Save the drawing. A full-color image is provided on the companion website. www.g-wlearning.com/CAD/
