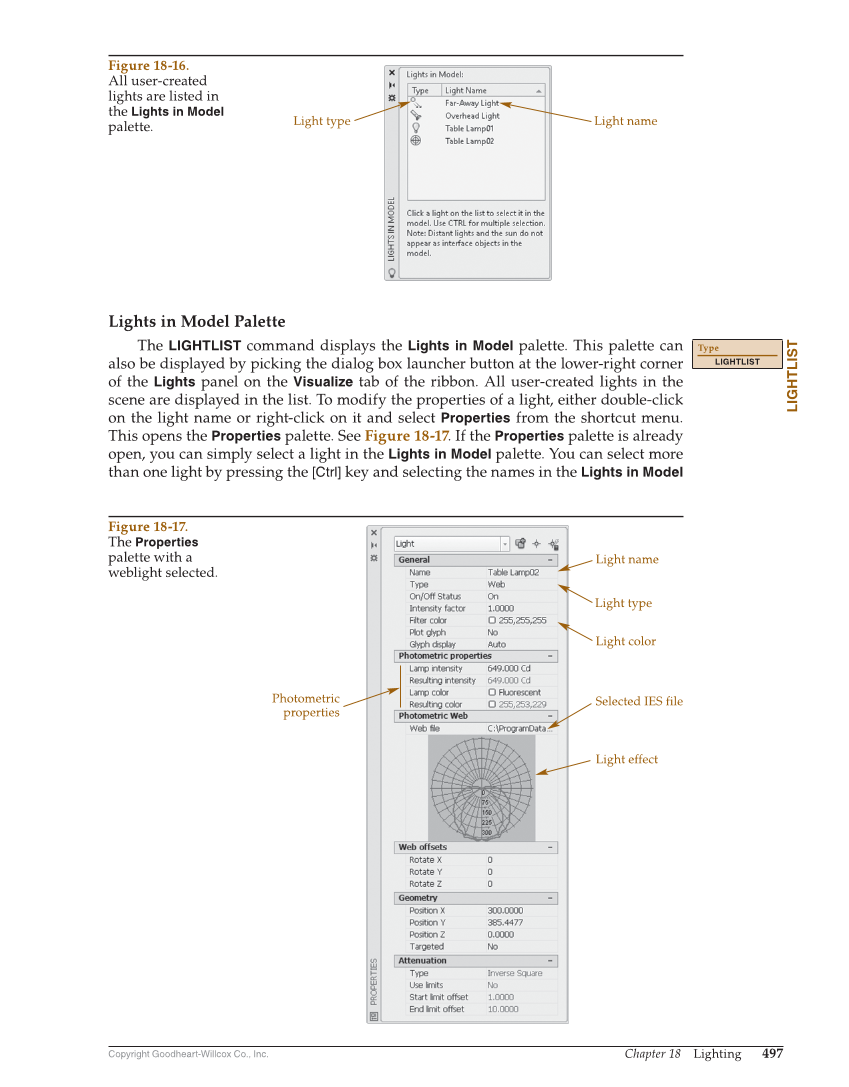

Copyright Goodheart-Willcox Co., Inc. Chapter 18 Lighting 497 Lights in Model Palette The LIGHTLIST command displays the Lights in Model palette. This palette can also be displayed by picking the dialog box launcher button at the lower-right corner of the Lights panel on the Visualize tab of the ribbon. All user-created lights in the scene are displayed in the list. To modify the properties of a light, either double-click on the light name or right-click on it and select Properties from the shortcut menu. This opens the Properties palette. See Figure 18-17. If the Properties palette is already open, you can simply select a light in the Lights in Model palette. You can select more than one light by pressing the [Ctrl] key and selecting the names in the Lights in Model LIGHTLIST Type LIGHTLIST Light type Light name Figure 18-16. All user-created lights are listed in the Lights in Model palette. Photometric properties Light name Light type Light color Selected IES file Light effect Figure 18-17. The Properties palette with a weblight selected.
