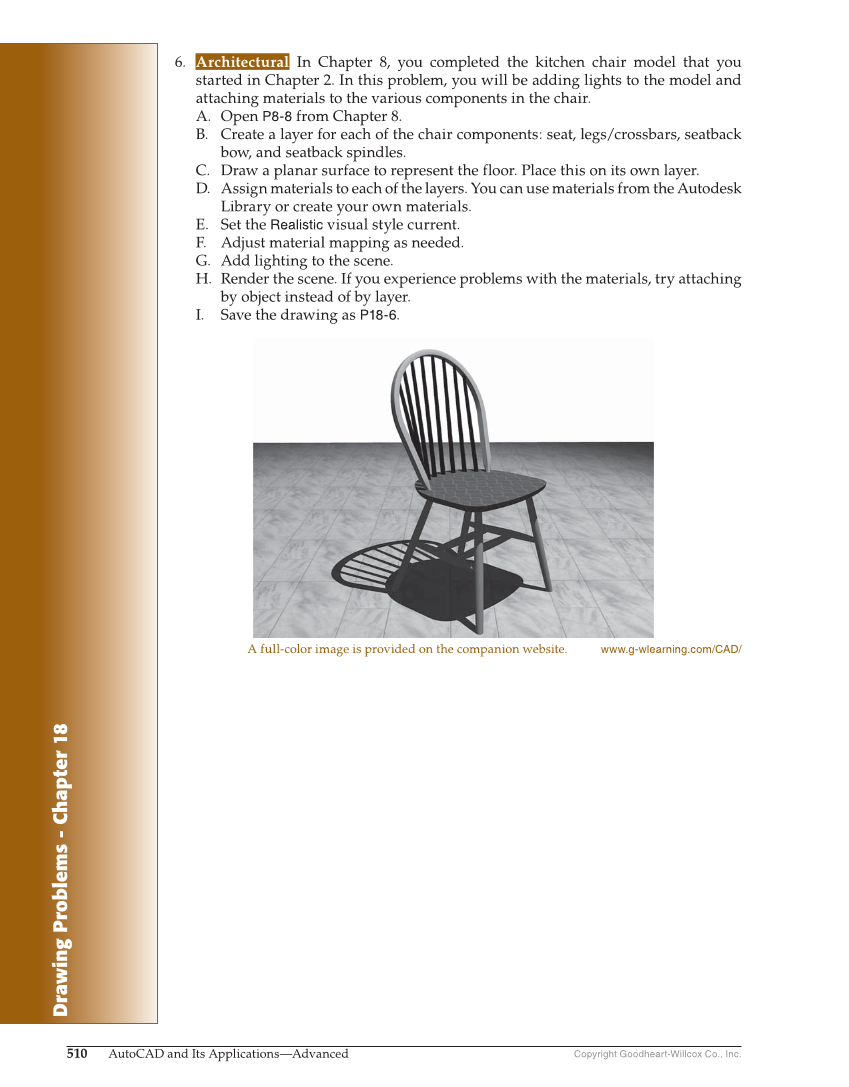

Drawing Problems - Chapter 18 Copyright Goodheart-Willcox Co., Inc. 510 AutoCAD and Its Applications—Advanced 6. Architectural In Chapter 8, you completed the kitchen chair model that you started in Chapter 2. In this problem, you will be adding lights to the model and attaching materials to the various components in the chair. A. Open P8-8 from Chapter 8. B. Create a layer for each of the chair components: seat, legs/crossbars, seatback bow, and seatback spindles. C. Draw a planar surface to represent the floor. Place this on its own layer. D. Assign materials to each of the layers. You can use materials from the Autodesk Library or create your own materials. E. Set the Realistic visual style current. F. Adjust material mapping as needed. G. Add lighting to the scene. H. Render the scene. If you experience problems with the materials, try attaching by object instead of by layer. I. Save the drawing as P18-6. A full-color image is provided on the companion website. www.g-wlearning.com/CAD/
