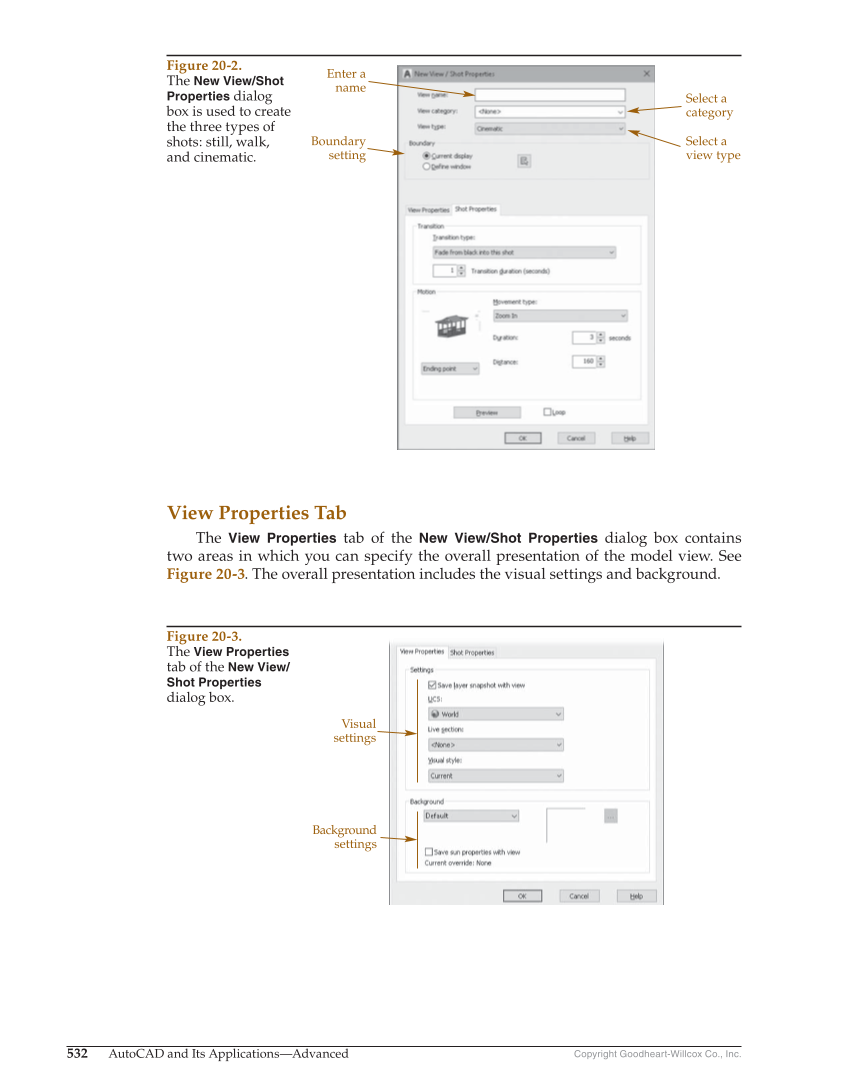

532 AutoCAD and Its Applications—Advanced Copyright Goodheart-Willcox Co., Inc. View Properties Tab The View Properties tab of the New View/Shot Properties dialog box contains two areas in which you can specify the overall presentation of the model view. See Figure 20-3. The overall presentation includes the visual settings and background. Enter a name Select a category Select a view type Boundary setting Figure 20-2. The New View/Shot Properties dialog box is used to create the three types of shots: still, walk, and cinematic. Visual settings Background settings Figure 20-3. The View Properties tab of the New View/ Shot Properties dialog box.
