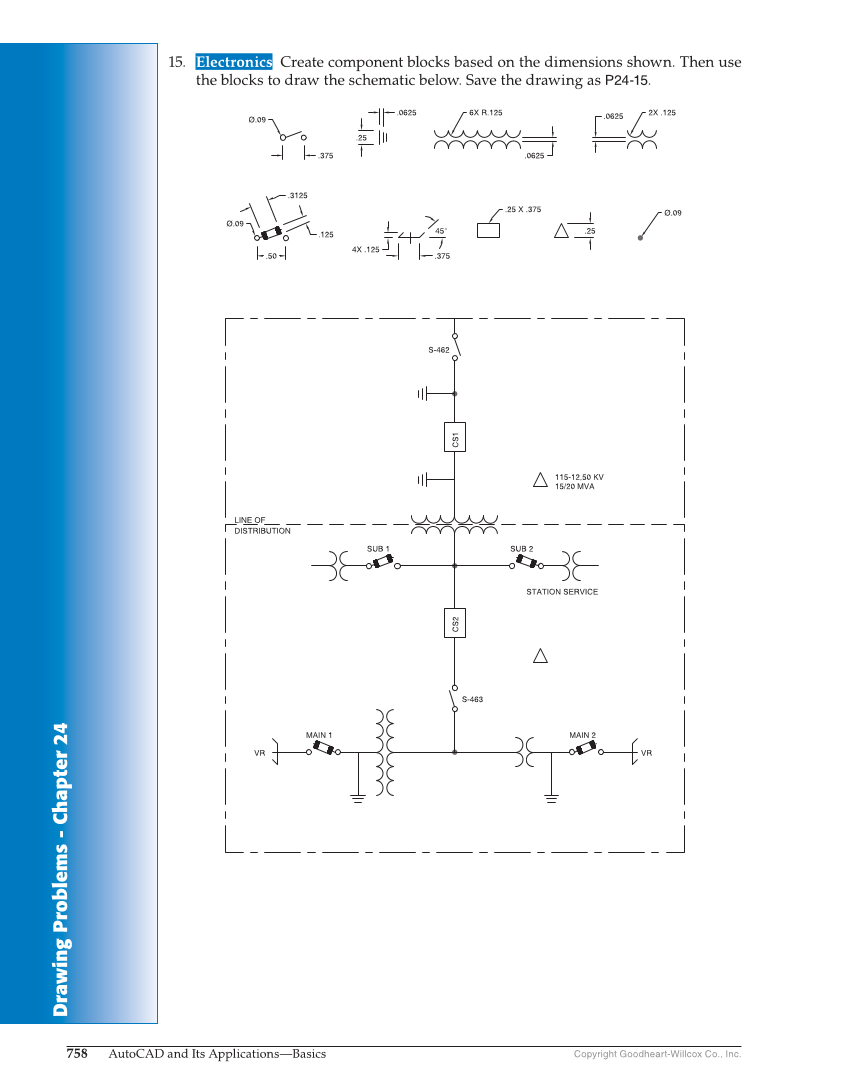

Drawing Problems - Chapter 2 4 758 AutoCAD and Its Applications—Basics Copyright Goodheart-Willcox Co., Inc. 15. Electronics Create component blocks based on the dimensions shown. Then use the blocks to draw the schematic below. Save the drawing as P24-15. Ø.09 .375 .0625 .25 .0625 6X R.125 .0625 2X .125 Ø.09 .125 .3125 .50 Ø.09 .375 4X .125 45° .25 X .375 .25 LINE OF DISTRIBUTION 115-12,50 KV 15/20 MVA S-462 VR MAIN 2 MAIN 1 VR SUB 2 SUB 1 STATION SERVICE S-463 CS2 CS1
