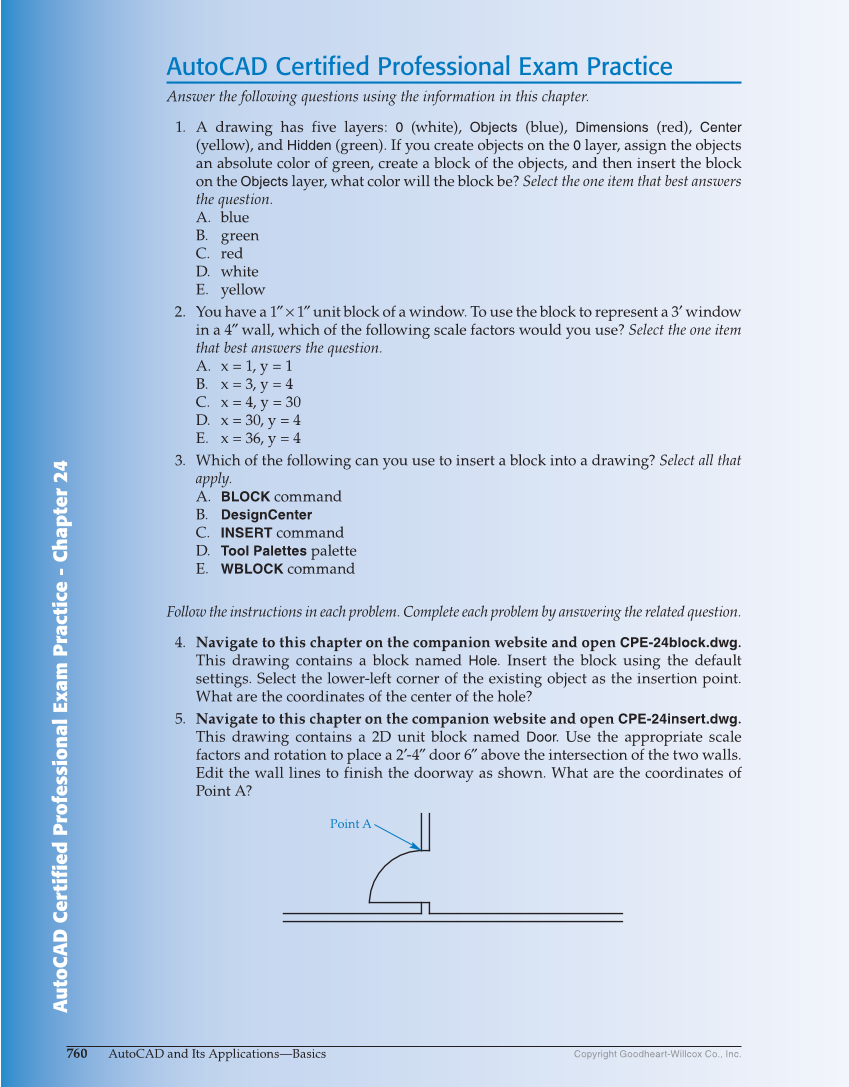

AutoCAD Certified Professional Exam Practice - Chapter 2 4 760 AutoCAD and Its Applications—Basics Copyright Goodheart-Willcox Co., Inc. AutoCAD Certified Professional Exam Practice Answer the following questions using the information in this chapter. 1. A drawing has five layers: 0 (white), Objects (blue), Dimensions (red), Center (yellow), and Hidden (green). If you create objects on the 0 layer, assign the objects an absolute color of green, create a block of the objects, and then insert the block on the Objects layer, what color will the block be? Select the one item that best answers the question. A. blue B. green C. red D. white E. yellow 2. You have a 1″ × 1″ unit block of a window. To use the block to represent a 3′ window in a 4″ wall, which of the following scale factors would you use? Select the one item that best answers the question. A. x = 1, y = 1 B. x = 3, y = 4 C. x = 4, y = 30 D. x = 30, y = 4 E. x = 36, y = 4 3. Which of the following can you use to insert a block into a drawing? Select all that apply. A. BLOCK command B. DesignCenter C. INSERT command D. Tool Palettes palette E. WBLOCK command Follow the instructions in each problem. Complete each problem by answering the related question. 4. Navigate to this chapter on the companion website and open CPE-24block.dwg. This drawing contains a block named Hole. Insert the block using the default settings. Select the lower-left corner of the existing object as the insertion point. What are the coordinates of the center of the hole? 5. Navigate to this chapter on the companion website and open CPE-24insert.dwg. This drawing contains a 2D unit block named Door. Use the appropriate scale factors and rotation to place a 2′-4″ door 6″ above the intersection of the two walls. Edit the wall lines to finish the doorway as shown. What are the coordinates of Point A? Point A
