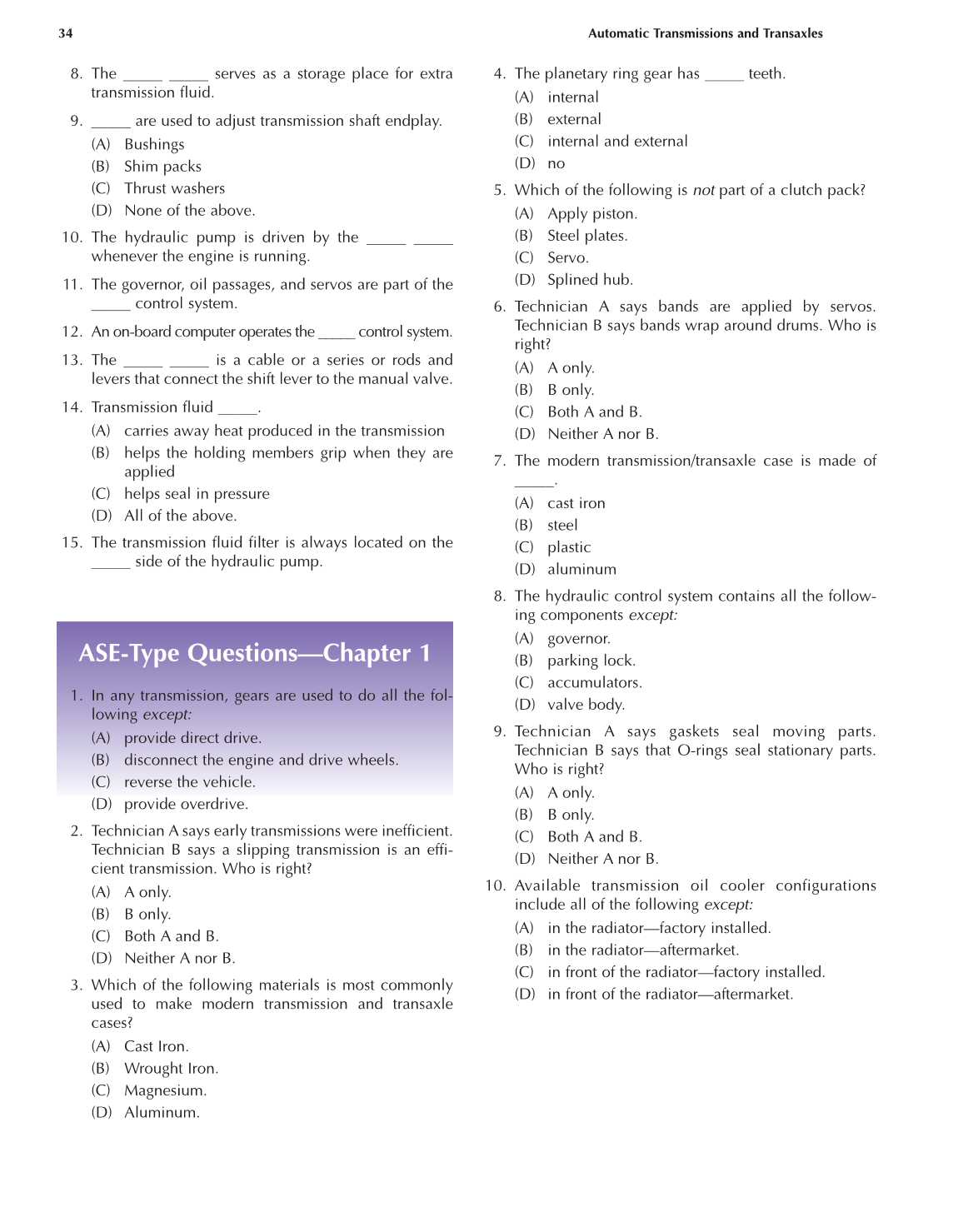

34 Automatic Transmissions and Transaxles
8. The _____ _____ serves as a storage place for extra
transmission fluid.
9. _____ are used to adjust transmission shaft endplay.
(A) Bushings
(B) Shim packs
(C) Thrust washers
(D) None of the above.
10. The hydraulic pump is driven by the _____ _____
whenever the engine is running.
11. The governor, oil passages, and servos are part of the
_____ control system.
12. An on-board computer operates the _____ control system.
13. The _____ _____ is a cable or a series or rods and
levers that connect the shift lever to the manual valve.
14. Transmission fluid _____.
(A) carries away heat produced in the transmission
(B) helps the holding members grip when they are
applied
(C) helps seal in pressure
(D) All of the above.
15. The transmission fluid filter is always located on the
_____ side of the hydraulic pump.
ASE-Type Questions—Chapter 1
1. In any transmission, gears are used to do all the fol-
lowing except:
(A) provide direct drive.
(B) disconnect the engine and drive wheels.
(C) reverse the vehicle.
(D) provide overdrive.
2. Technician A says early transmissions were inefficient.
Technician B says a slipping transmission is an effi-
cient transmission. Who is right?
(A) A only.
(B) B only.
(C) Both A and B.
(D) Neither A nor B.
3. Which of the following materials is most commonly
used to make modern transmission and transaxle
cases?
(A) Cast Iron.
(B) Wrought Iron.
(C) Magnesium.
(D) Aluminum.
4. The planetary ring gear has _____ teeth.
(A) internal
(B) external
(C) internal and external
(D) no
5. Which of the following is not part of a clutch pack?
(A) Apply piston.
(B) Steel plates.
(C) Servo.
(D) Splined hub.
6. Technician A says bands are applied by servos.
Technician B says bands wrap around drums. Who is
right?
(A) A only.
(B) B only.
(C) Both A and B.
(D) Neither A nor B.
7. The modern transmission/transaxle case is made of
_____.
(A) cast iron
(B) steel
(C) plastic
(D) aluminum
8. The hydraulic control system contains all the follow-
ing components except:
(A) governor.
(B) parking lock.
(C) accumulators.
(D) valve body.
9. Technician A says gaskets seal moving parts.
Technician B says that O-rings seal stationary parts.
Who is right?
(A) A only.
(B) B only.
(C) Both A and B.
(D) Neither A nor B.
10. Available transmission oil cooler configurations
include all of the following except:
(A) in the radiator—factory installed.
(B) in the radiator—aftermarket.
(C) in front of the radiator—factory installed.
(D) in front of the radiator—aftermarket.
