376 Automatic Transmissions and Transaxles
79
29
67
68
81
80
69
70
71
72
82
73
74
75
55
83
84
66
65
64
88
63
62
61
60
59
87
57
58
55
56
86
51
50
49
76
29. Plug, hex head 1/8≤ pipe (2)
49. Piston, 3-4 accumulator
50. Ring, oil seal (3-4 accumulator piston)
51. Spring, 3-4 accumulator
55. Ball, .25 diameter
56. Plate, valve body spacer
57. Plate, accumulator
58. Gasket, accumulator hsg. to accum. plate
59. Spring, 1-2 accumulator piston
60. Ring, oil seal (1-2 accumulator piston)
61. Piston, 1-2 accumulator
62. Housing & pin assembly, 1-2 accumulator
63. Bolt, accumulator housing
64. Screw, conical washer assembly
65. Pan, transmission oil
66. Gasket, pan
67. Seal, o-ring (filter)
68. Filter assembly, transmission oil
69. Lever & bracket assembly, throttle
70. Spring, lifter (TV exhaust valve)
71. Link, throttle lever to cable
72. Lifter, TV exhaust
73. Switch, pressure 4-3
74. Valve assembly, control
75. Switch assembly, pressure (3rd or 4th)
76. Pin, accumulator piston
80. Bolt, M6 × 1 × 45
81. Bolt, M6 × 1 × 60
82. Clip, filter retainer
83. Pipe, signal oil
84. Retainer, signal oil pipe
85. Magnet, chip collector
86. Gasket, spacer plate to case
87. Gasket, valve body to spacer plate
88. Bolt, accumulator housing
85

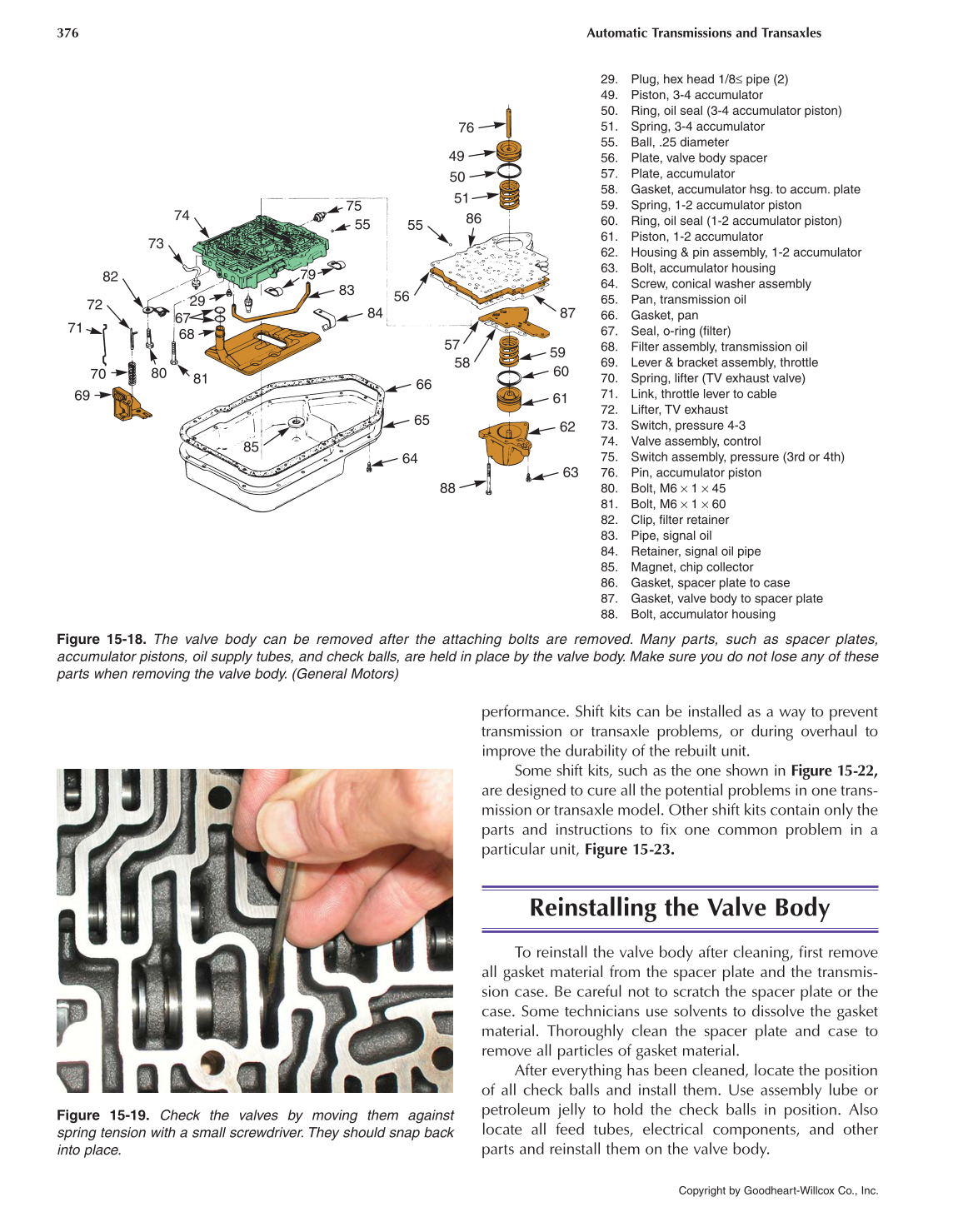

Figure 15-18. The valve body can be removed after the attaching bolts are removed. Many parts, such as spacer plates,
accumulator pistons, oil supply tubes, and check balls, are held in place by the valve body. Make sure you do not lose any of these
parts when removing the valve body. (General Motors)
Figure 15-19. Check the valves by moving them against
spring tension with a small screwdriver. They should snap back
into place.
performance. Shift kits can be installed as a way to prevent
transmission or transaxle problems, or during overhaul to
improve the durability of the rebuilt unit.
Some shift kits, such as the one shown in Figure 15-22,
are designed to cure all the potential problems in one trans-
mission or transaxle model. Other shift kits contain only the
parts and instructions to fix one common problem in a
particular unit, Figure 15-23.
Reinstalling the Valve Body
To reinstall the valve body after cleaning, first remove
all gasket material from the spacer plate and the transmis-
sion case. Be careful not to scratch the spacer plate or the
case. Some technicians use solvents to dissolve the gasket
material. Thoroughly clean the spacer plate and case to
remove all particles of gasket material.
After everything has been cleaned, locate the position
of all check balls and install them. Use assembly lube or
petroleum jelly to hold the check balls in position. Also
locate all feed tubes, electrical components, and other
parts and reinstall them on the valve body.
