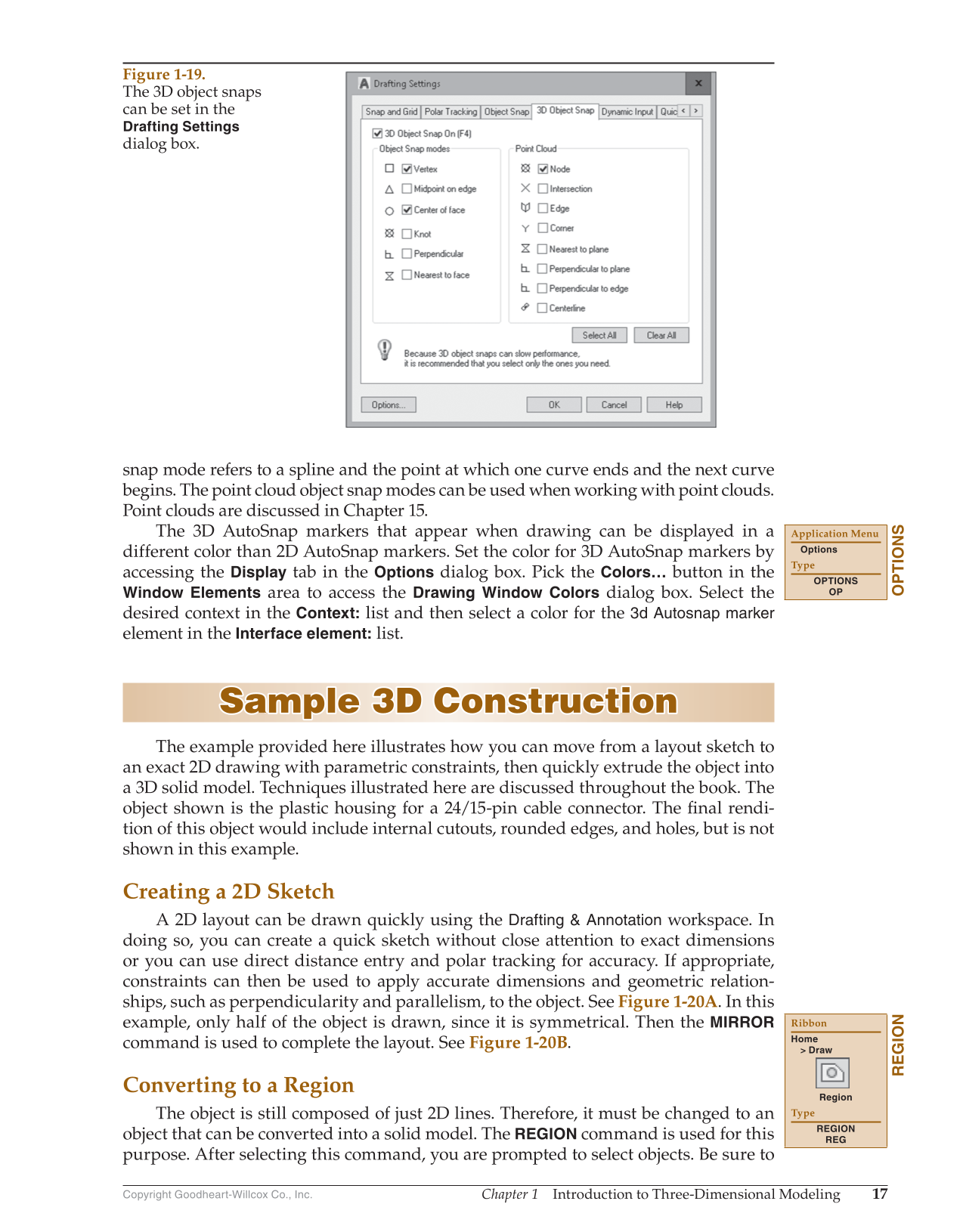

Chapter  1  Introduction  to  Three-Dimensional  Modeling  17  Copyright  Goodheart-Willcox  Co.,  Inc.  snap  mode  refers  to  a  spline  and  the  point  at  which  one  curve  ends  and  the  next  curve  begins.  The  point  cloud  object  snap  modes  can  be  used  when  working  with  point  clouds.  Point  clouds  are  discussed  in  Chapter  15.  The  3D  AutoSnap  markers  that  appear  when  drawing  can  be  displayed  in  a  different  color  than  2D  AutoSnap  markers.  Set  the  color  for  3D  AutoSnap  markers  by  accessing  the  Display  tab  in  the  Options  dialog  box.  Pick  the  Colors…  button  in  the  Window  Elements  area  to  access  the  Drawing  Window  Colors  dialog  box.  Select  the  desired  context  in  the  Context:  list  and  then  select  a  color  for  the  3d  Autosnap  marker  element  in  the  Interface  element:  list.  Sample  3D  Construction  Sample  3D  Construction  The  example  provided  here  illustrates  how  you  can  move  from  a  layout  sketch  to  an  exact  2D  drawing  with  parametric  constraints,  then  quickly  extrude  the  object  into  a  3D  solid  model.  Techniques  illustrated  here  are  discussed  throughout  the  book.  The  object  shown  is  the  plastic  housing  for  a  24/15-pin  cable  connector.  The  fi  nal  rendi-  tion  of  this  object  would  include  internal  cutouts,  rounded  edges,  and  holes,  but  is  not  shown  in  this  example.  Creating  a  2D  Sketch  A  2D  layout  can  be  drawn  quickly  using  the  Drafting  &  Annotation  workspace.  In  doing  so,  you  can  create  a  quick  sketch  without  close  attention  to  exact  dimensions  or  you  can  use  direct  distance  entry  and  polar  tracking  for  accuracy.  If  appropriate,  constraints  can  then  be  used  to  apply  accurate  dimensions  and  geometric  relation-  ships,  such  as  perpendicularity  and  parallelism,  to  the  object.  See  Figure  1-20A.  In  this  example,  only  half  of  the  object  is  drawn,  since  it  is  symmetrical.  Then  the  MIRROR  command  is  used  to  complete  the  layout.  See  Figure  1-20B.  Converting  to  a  Region  The  object  is  still  composed  of  just  2D  lines.  Therefore,  it  must  be  changed  to  an  object  that  can  be  converted  into  a  solid  model.  The  REGION  command  is  used  for  this  purpose.  After  selecting  this  command,  you  are  prompted  to  select  objects.  Be  sure  to  OPTIONS  Application  Menu  Options  Type  OPTIONS  OP  Figure  1-19.  The  3D  object  snaps  can  be  set  in  the  Drafting  Settings  dialog  box.  REGION  Ribbon  Home  Draw  Region  Type  REGION  REG
