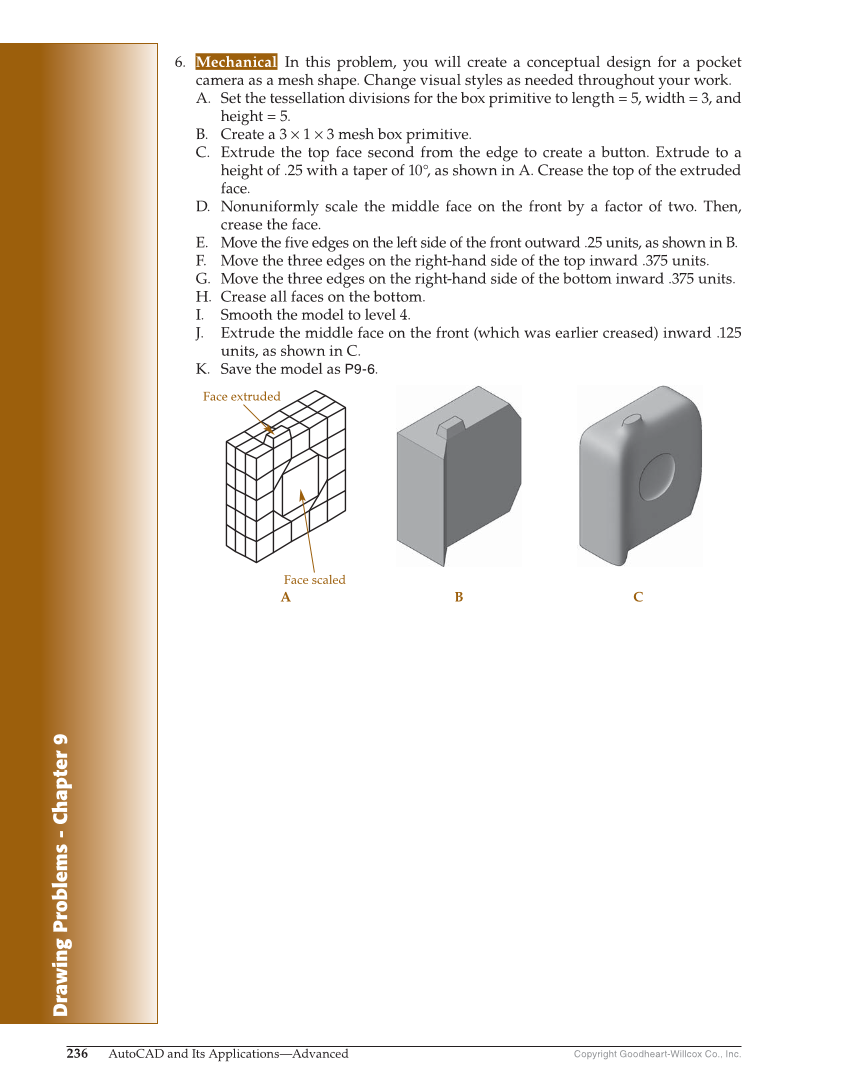

Drawing Problems - Chapter 9 Copyright Goodheart-Willcox Co., Inc. 236 AutoCAD and Its Applications—Advanced 6. Mechanical In this problem, you will create a conceptual design for a pocket camera as a mesh shape. Change visual styles as needed throughout your work. A. Set the tessellation divisions for the box primitive to length = 5, width = 3, and height = 5. B. Create a 3 × 1 × 3 mesh box primitive. C. Extrude the top face second from the edge to create a button. Extrude to a height of .25 with a taper of 10°, as shown in A. Crease the top of the extruded face. D. Nonuniformly scale the middle face on the front by a factor of two. Then, crease the face. E. Move the five edges on the left side of the front outward .25 units, as shown in B. F. Move the three edges on the right-hand side of the top inward .375 units. G. Move the three edges on the right-hand side of the bottom inward .375 units. H. Crease all faces on the bottom. I. Smooth the model to level 4. J. Extrude the middle face on the front (which was earlier creased) inward .125 units, as shown in C. K. Save the model as P9-6. A B C Face extruded Face scaled
