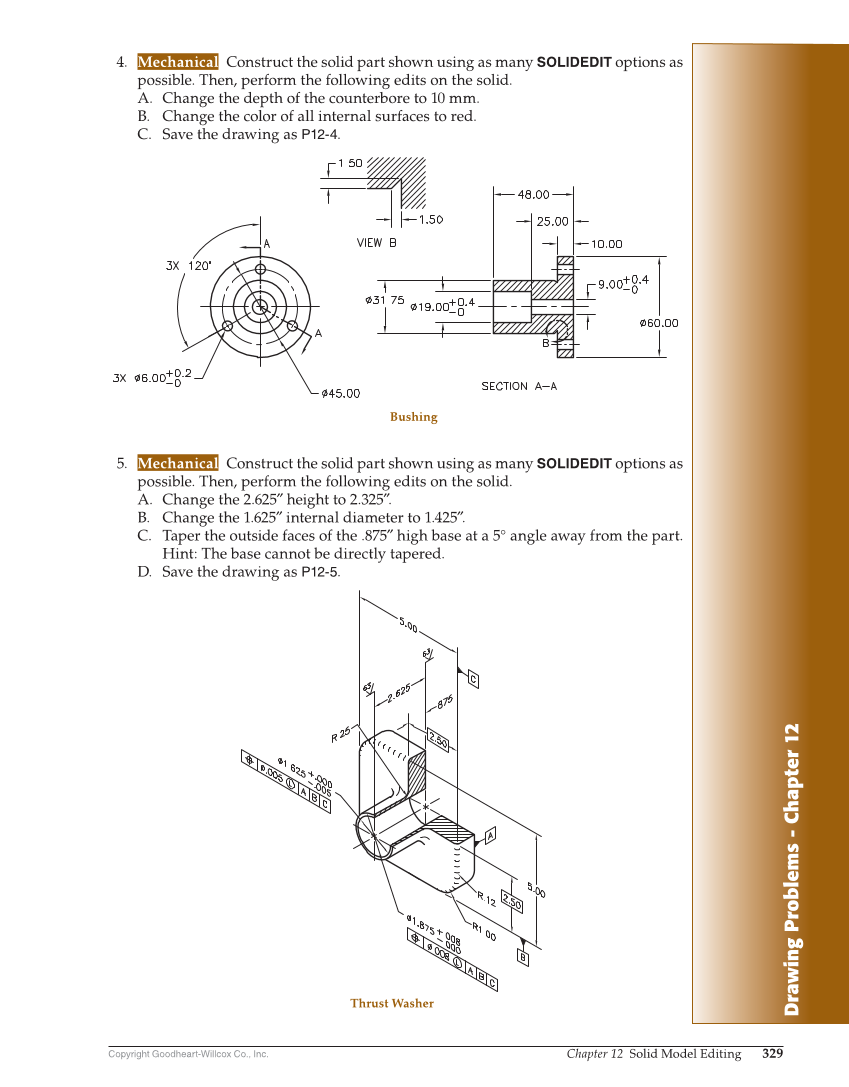

Drawing Problems - Chapter 12 Copyright Goodheart-Willcox Co., Inc. Chapter 12 Solid Model Editing 329 4. Mechanical Construct the solid part shown using as many SOLIDEDIT options as possible. Then, perform the following edits on the solid. A. Change the depth of the counterbore to 10 mm. B. Change the color of all internal surfaces to red. C. Save the drawing as P12-4. 5. Mechanical Construct the solid part shown using as many SOLIDEDIT options as possible. Then, perform the following edits on the solid. A. Change the 2.625″ height to 2.325″. B. Change the 1.625″ internal diameter to 1.425″. C. Taper the outside faces of the .875″ high base at a 5° angle away from the part. Hint: The base cannot be directly tapered. D. Save the drawing as P12-5. Bushing Thrust Washer
