Chapter 4 Wireless Technology
195

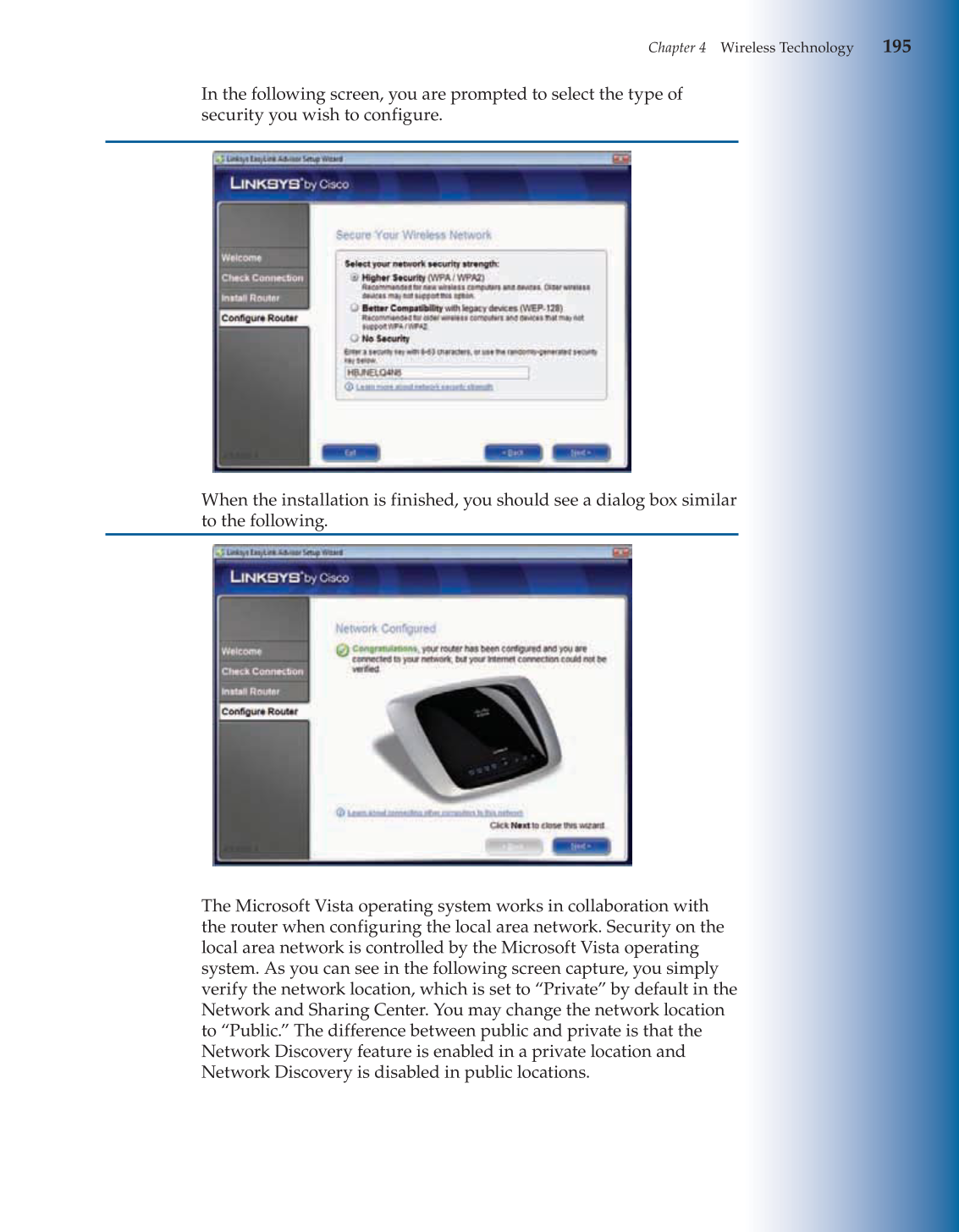

In the following screen, you are prompted to select the type of
security you wish to configure.
When the installation is finished, you should see a dialog box similar
to the following.
The Microsoft Vista operating system works in collaboration with
the router when configuring the local area network. Security on the
local area network is controlled by the Microsoft Vista operating
system. As you can see in the following screen capture, you simply
verify the network location, which is set to “Private” by default in the
Network and Sharing Center. You may change the network location
to “Public.” The difference between public and private is that the
Network Discovery feature is enabled in a private location and
Network Discovery is disabled in public locations.
